| Prod Model: |
reference the parameter |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Color: |
Yellow or Silver |
| Size: |
1/2"-2" |
| Material: |
Carbon Steel |
| Manufacturing Way: |
Forging |
| Standard: |
JIS |
| Type: |
Threaded Connection Flange |
Product Description

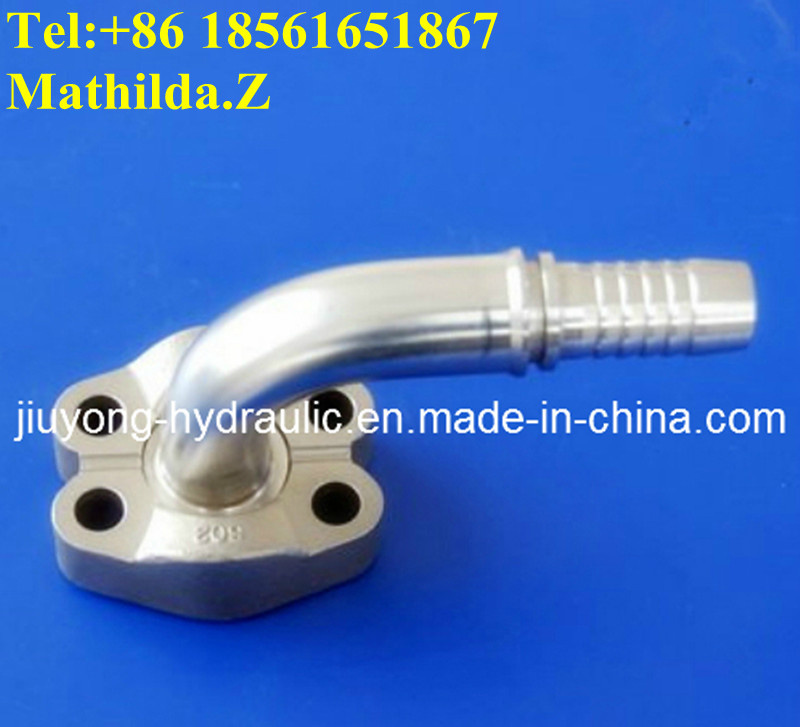

SAE Flange Fitting 6000 PSI Flange Hydraulic Fitting
1. Material: Carbon steel, Brass, Stainless Steel of Flange
2. Zinc planted: Yellow or white for SAE Flange Hydraulic Fitting
3. Suitable price of Hydraulic Fittings, Pipe Fitting
4. SGS China Manufacturer of Hydraulic Hose Coupling, Hydraulic Hose Adapter
5. SAE Flange Fitting with Flange Clamp
6. Threaded Connection Flange, Hydraulic Pipe Fitting, Hydraulic Hose Adapter Supplier.
All Hydraulic Parts passed ISO. Hydraulic Hose Coupling, Tube Fitting will be design for you.
Such as JIC, DIN, BSP, JIS etc. Also produce according to customers' drawings or samples
Application: Machinery, transportation, mines, oil fields, Agriculture equipments, vehicle, heavy industry etc.
PART NO. |
THREAD E |
HOSE BORE |
DIMENSIONS |
|
DN |
DASH |
C |
D |
L |
|
87611 -08-08 |
1/2" |
12 |
08 |
31.7 |
23.9 |
7.9 |
|
-12-12 |
3/4" |
20 |
12 |
41.3 |
31.7 |
8.9 |
|
-16-16 |
1" |
25 |
16 |
47.6 |
38 |
9.6 |
|
-16-20 |
1" |
32 |
20 |
47.6 |
38 |
9.6 |
|
-20-20 |
1.1/4" |
32 |
20 |
54 |
43.6 |
10.4 |
|
-24-20 |
1.1/2" |
32 |
20 |
63.5 |
50.8 |
12.7 |
|
-24-24 |
1.1/2" |
40 |
24 |
63.5 |
50.8 |
12.7 |
|
-32-24 |
2" |
40 |
24 |
79.4 |
66.5 |
12.7 |
|
-32-32 |
2" |
50 |
32 |
79.4 |
66.5 |
12.7 |
Qingdao Jiuyong Hydraulic Power Co., Ltd is a specialized SGS China factory with hydraulic hose assembly, hydraulic hose, hydraulic fittings and concrete pump production experience for many years.
Our managing scope relates to various fields such as hydraulic system etc; Including all kinds of the materials with different pressure levels, the flexible hydraulic hoses with various size criterions, hydraulic fittings, hose fittings, adaptor, elbow, tee, cross, ferrule, flange etc.
We have advanced imported crimping machine for hydraulic hose assembly. Providing reliable products at reasonable prices has won us customers all over 20 countries and regions, such as Russia, Brazil, Pakistan, Vietnam, Spain etc. Welcome to visit and negotiate business.
We are looking forward to established long-term cooperation relation with you, and create a better future together.
