| Prod Model: |
JJM-R |
| Markets: |
South America,Eastern Europe,Mid East |
Product Description

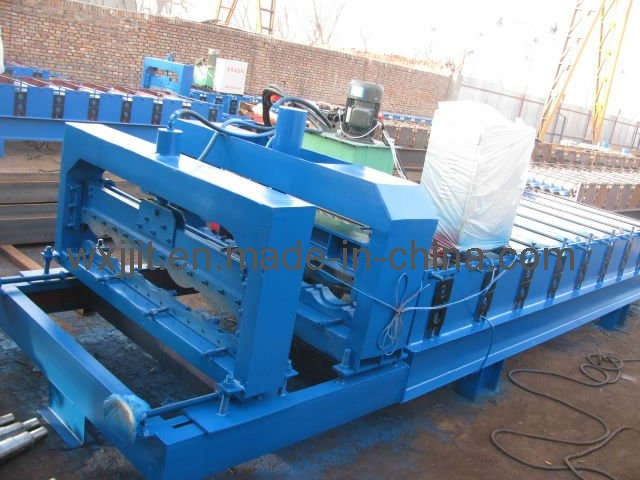

Product No.: JJM840/1050
Size(m): 7.4*1.55*1.51
Weight: 9.5T
Capacity: 10~12m/min
Quality: ISO9001 Certificated
Technical parameters:
1 Material spec: Colored steel sheet, galvanized steel sheet
2 Thickness of coil sheet: 0.4-0.8mm
3 Main motor power: 705kw
4 Forming speed: 10-12m/min
5 Hydraulic station power: 3kw
6 Quntity of stands: About 16 groups or according to the customers requirement
7 Hydraulic pressure: 10-12Mpa
8 Controling system: PLC
9 Total weight: About 9, 500kg
10 Voltage: 380V 3 phase 60Hz or at buyers requirement
Material of main equipment:
1 Roller material: High grade No. 45 forged steel, plated hard chrome on the surface of roller with thickness 0.05mm
2 Active shaft material: High grade No. 45 carbon wrought steel at diameter 75mm
3 Cutter blade: Cr12 mould steel with quenched treatment
4 Eletric elements: Control systerm with PLC model S7-200, Siemens transducer with ABB control panel with TP 170, Siemens it can input 10 sets of spec at one time
5 Oil tank model of hydraulic systerm: CB-E310
Machine Components:
Forming Machine: 1 set
Hydralic pressure systerm: 1 set
Auto-cutting knife: 1 set
Computer control box: 1 set
Arched machine: 1 set
Seaming wrench: 1 set
Hand-made holder: 1 set
Working flow:
Decoiling the sheetsheet guidingroll formingmeasure
Type: Tile Forming Machine
Tile: Type Colored Steel
Use: Roof and wall
Color: Green or Blue
Certification: CE
Control mode: PLC
Drive mode: Chain drive
Wuxi Jing Jia International Trade Co., Ltd. is located by the coast of beautiful Tai Lake of the Yangtze River Delta, Wuxi, with Shanghai-Nanjing Railway, Xin-Chang Railway, Beijing-Shanghai Expressway, Shanghai-Nanjing Expressway and Huyi Expressway converging and the Grand Canal (China) passing through, only 100m from National Highway 312. It is a modern technology enterprise integrating R&D, manufacture, technical service and import & export trade. Our tenet is "Build Credit Once, Serve You Forever!
To adapt to the development of domestic and foreign steel structure, the company has been engaged in production of steel structure roofs and wall containment channeled steel plate equipment for years. It is also committed to the R&D of new products. We have developed many series of channeled steel plate production lines from the initial monolayer corrugated sheet pressing production line, such as slitting line production line, series hidden gripping wall roof plate production line, series colorbond sandwiched steel plate production line, series C-type steel and Z-type steel numerical control tape punching and purlin production line, series floor steel bearing plate production line, PU load board production line, series arch roof with or without beam and series production equipment, fully meeting requirements of all steel buildings.
Our company has strong technical strength, high-level management personnel, strong production capacity and complete quality tracking and detection. We have passed the certification of ISO9001: 2000 Quality Management System, and the quality management during production strictly executes 9001 standard. The company has ranked among the industry in China, our users spread all over China and our products are exported to many countries and regions in Southeast Asia, South Africa, America, etc. We have established good cooperative relationship with many manufacturers and distributors, forming wide product marketing channels.
Wuxi Jing Jia International Trade Co., Ltd. will give play to its advantages of technology, market channel and market development capacity to provide professional and excellent service for manufacturers and users at home and abroad.
