| Prod Model: |
JJM-F |
| Markets: |
South America,Eastern Europe,Mid East |
| Type: |
Metal Rolling&Drawing Machine |
Product Description
Type: Tile Forming Machine
Tile Type: Colored Glaze Steel
Use: Floor
Color: Blue
Certification: CE, ISO9001
1. Rollforming, roll former
2. Offer Roll Forming machine 18+ years experience, Contact now!
3. CE, ISO9001, we are the best

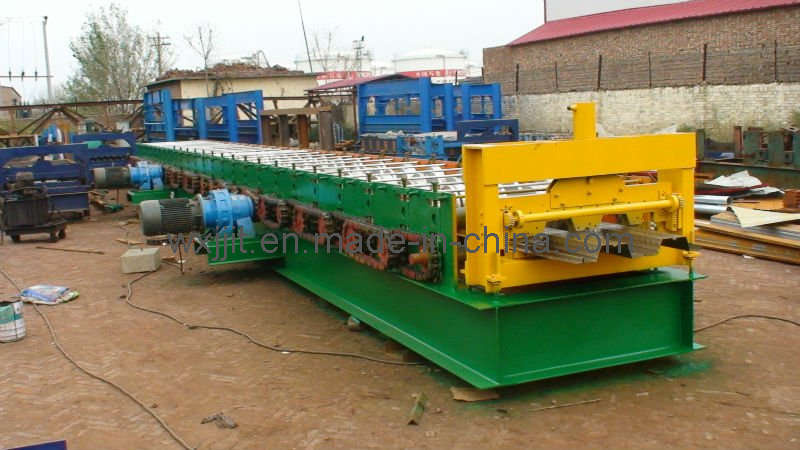

Floor Deck Roll Forming Machine
Steel structural floor panel is the type of steel construction material with character of low light, hard, easy to install, which extensively apply in constructing skyscraper, residential building and bridge. Zhongji series steel structural floor panel with the feature of reliable, convenient operation, automatic can be used in various steel structural floor panels forming.
Technological Process:
Uncoiling---Feeding---Leveling---Punching---Rool Forming---Cutting---Products Collecting
|
Main Technical Specifications of Floor Deck Roll Forming Machine: |
|
Number |
Items |
Unit\Type |
RF-FD |
|
1 |
Steel Thickness |
mm |
0.8-1.2 |
|
2 |
Steel feeding width |
mm |
1000-1250 |
|
3 |
Forming Speed |
m/min |
10-15 |
|
4 |
Roller stands |
stand |
30-36 |
|
5 |
Roller Material |
|
45# steel, coated with chrome |
|
6 |
Hydraulic cutting Power |
Kw |
18 |
|
7 |
Hydraulic pressure |
Kw |
5 |
|
8 |
Hydraulic pressure Mpa |
Mpa |
12 |
|
9 |
Power Supply |
|
380V, 50HZ, 3 phase |
|
10 |
Tolerance |
mm |
1.5 |
|
11 |
Material of cutting |
|
Cr12 |
|
12 |
Control system |
|
PLC with touch screen |
|
13 |
Machine net weight |
T |
16 |
Wuxi Jing Jia International Trade Co., Ltd. is located by the coast of beautiful Tai Lake of the Yangtze River Delta, Wuxi, with Shanghai-Nanjing Railway, Xin-Chang Railway, Beijing-Shanghai Expressway, Shanghai-Nanjing Expressway and Huyi Expressway converging and the Grand Canal (China) passing through, only 100m from National Highway 312. It is a modern technology enterprise integrating R&D, manufacture, technical service and import & export trade. Our tenet is "Build Credit Once, Serve You Forever!
To adapt to the development of domestic and foreign steel structure, the company has been engaged in production of steel structure roofs and wall containment channeled steel plate equipment for years. It is also committed to the R&D of new products. We have developed many series of channeled steel plate production lines from the initial monolayer corrugated sheet pressing production line, such as slitting line production line, series hidden gripping wall roof plate production line, series colorbond sandwiched steel plate production line, series C-type steel and Z-type steel numerical control tape punching and purlin production line, series floor steel bearing plate production line, PU load board production line, series arch roof with or without beam and series production equipment, fully meeting requirements of all steel buildings.
Our company has strong technical strength, high-level management personnel, strong production capacity and complete quality tracking and detection. We have passed the certification of ISO9001: 2000 Quality Management System, and the quality management during production strictly executes 9001 standard. The company has ranked among the industry in China, our users spread all over China and our products are exported to many countries and regions in Southeast Asia, South Africa, America, etc. We have established good cooperative relationship with many manufacturers and distributors, forming wide product marketing channels.
Wuxi Jing Jia International Trade Co., Ltd. will give play to its advantages of technology, market channel and market development capacity to provide professional and excellent service for manufacturers and users at home and abroad.
