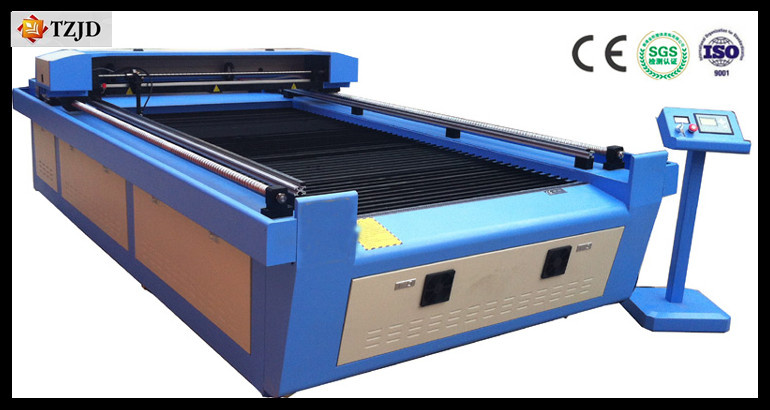

Acrylic Wood Bamboo Leather Laser Cutting Machine

Prod Model:	TZJD-1325BL
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Control Mode:	CNC
Cutting Mode:	Laser
Type:	Laser
Working Area:	1300mm*2500mm
Laser Tube:	Reci 80W 100W 130W 150W 180W
Software:	Lasercut
Control Card:	Leetro6515
Interface:	USB
Working Table:	Knife-Bar, Honeycomb
Necessary:	Red-DOT Position System

Product Description

Acrylic Wood Bamboo Leather Laser Cutting machine TZJD-1325L

www.tzjdcnc.com, laser cutting machine, laser cutter, laser cutting machinery, laser cutting engraving machine, laser machine, laser cutting machinery, wood laser cutting machine, laser acrylic cutting machine, MDF laser cutting engraving machine, laser engraver, laser engraving machine.

1. Applicable industry:
(1) To make different patterns and words on wood, bamboo, Ivory, bone, leather, marble, shell.
(2) Large plastic character cutting, color plate engraving, organic glass engraving and cutting, sign engraving, crystal engraving, trophy engraving, authorization engraving, etc.
(3) Leather Clothing Processing Industry: Can engraving and cutting complex patterns on genuine leather, synthetic leather, leather, woolens, clothing, furnishings, glove, handbag, shoes, hats, toys, etc.
(4) Model Industry: Production of construction sand table model and Aircraft Model, etc. ABC plate cutting, MLB cutting.
(5) Packing Industry: Engraving and printing rubber plate, plastic plate, double board, die cut plate, etc.
(6) Other Industry: Marble, granite, glass, crystal and decorative materials, cut paper, card.
(7) Product Identification Industry.

2. Applicable Materials:
Synthetic leather, glass, organic glass, leather, cloth, acrylic, wood, MDF, PVC, Plywood, ABS board, resin animal grease, ox horn, lamp shade, embroidery, canvas, coconut shell, crystal, artificial leather, marble, stainless steel, Maple leaf, Double-color sheet, bamboo ware, Plexiglas, paper, leather, marble, ceramics, etc.

3. Product features:
(1) The stability and integrity design idea with advanced industry cooling system and water alarm.
(2) DSP control: Based on upper control unit of PC-PCI, adopt advanced DSP-TMS320, XC2S300 control chip with high speed, stability, anti-interference ability.
(3) Automatic Protection Function, improve the stability and safety of continuous operate.
(4) Perfect dust, pollution prevention design greatly improve the overall stability of the machine.
(5) Heavy-thickness square pipes casting for whole body.
(6) That working table were all stainless steel material, easily operate and never fray.
(7) Double guide-screw & four guide-rail for Y axis; Single guide-screw & double guide-rail for Y axis. Guarantee the machine under high-precision working.
(8) LaserCut software compatibility with AutoCAD/Coredraw/Cam/Photoshop/Taijima designing program, output designs directly.

4. Technical parameters:

Model	TZJD-1325BL
Working area	1300mm*2500mm
Laser power	RECI 80w/100w/130w/150w/180w
Laser type	CO2 Sealed laser tube , 10.6μm, water-cooled
Cooling type	Water chiller system
Engraving speed	0-75000mm/min
Cutting speed	0-50000mm/min
Total power	2KW/H
Drive motors	Stepper/Servo(option)
Laser output control	0-100% set by software
Min. engraving size	Chinese: 1.5mm*1.5mm, English letter:  1.0mm*1.0mm
Highest scanning precision	4000DPI
Locating accuracy	≤+0.01mm
Controlling software	DSP leetro6515 control system
Operating software	LaserCut
Graphic format supported	DST PLT BMP DXF DWG AI LAS,etc
Compatible software	CORELDRAW,PHOTOSHOP, AUTOCAD,TAJIMA,etc.
Color separation	Yes
Drive system	High-precision 3-phase stepper motor
Auxiliary equipments	Big exhaust fan and air exhaust pipe,  red-dot position system,  focus lens & reflection mirrors
Power supply	Ac110v/AC220V±10%, 50HZ/60HZ
Working environment	Temperature:0-45, Humidity 5-95%(No condensate water)
Working table	Honeycomb table/Knife bar
Interface	PCI USB
Machine available	Ball screw import from Taiwan rotary device,  UP & DOWN system,  auto-focus device, etc.

5. Packages: Solid seaworthy wood box package with steel belt.

6. Guarantee and After-sales service:
(1)  The quality warranty period is 24 months which counted from the day that the shipping commodity arrived at the port of destination, excluding the physical damage, We will provide you with the fittings for free during the guarantee period. But please kindly note that all users are kindly required to return us the damaged fittings by courier with your charge before we send back the alternative fitting parts. After warranty period, the fittings which you need repaired or changed should be in charge by you, and it will be reasonable charged.
(2)  Since it is difficult for our engineer to maintain the machine by face to face, we will create a plenty of online-supports. That is to say, we will give you technical supports by email, MSN/Skype, camera, video, telephone and fax when user meets some problems on installing, operating, adjusting, maintaining, and so on.
(3) When you meet some problems with installing, using or adjusting, but our online-support can not solve it, we can offer Door to Door service. If you need our engineer(s) to assemble or maintain or adjust the machine in your area, you would like to be required to assist us to go through the visa formality, traveling expenses prepaid and accommodation arrangement during the business trip and the service period before they dispatched. And please kindly arrange the translating person for the service engineer during their service period. Otherwise, you also can arrange your engineer to come to visit our factory to get a long-term free technical training.

7. Traning to use:
(1)  We will supply you with the operation and installation manual in English version together with the machine, including introduction for the composing of equipment, working principle, common knowledge of computer, controlling principle of electronic devices, daily maintenance measures. Personal demonstration will be supplied for equipment installing, adjusting, operating, programming of computer and common malfunction eliminating measures, etc.
(2)  We will supply you with brochures for simple trouble shootings of the machine which can help you deal with the common problems happened unexpectedly. Meanwhile, one set of "Instruction Book", "Operation Manual" and "Training Video Disk" for machine / software will be also sent to you together with the machine that could be easily understood and kindly handled by you and your customer.

8. Company information:
Tengzhou Jianda CNC Machine Co., Ltd specialized in woodworking machine,advertising machine, marble/stone engraving machine, laser engraving cutting machine, metal mould machine, double heads engraving machine,cylinder engraving machine, etc. The company was one of companies that can research & develop the advanced CNC Machines, which have laid the foundation in the domestic market. our machines have already exported to USA, Canada, England, Australia, Russia, India and so on.

9. FAQ:
(1) How long is the delivery time?
For standard machines, it would be 5-8 days; For non-standard machines and customized machines according to client s specific requirements, it would be 8 to 15 days.

(2) How about the payment terms?
T/T, West Union, L/C

(3) Do You Arrange Shipment For The Machines?
Yes, dear esteemed customers, for FOB or CIF price, we will arrange shipment for you. For EXW price, clients need to arrange shipment by themselves or their agents.

(4) If some problems happened to this machine during warranty period, what should I do?
We will supply free parts in machine warranty period if machine have some problem. While we also supply free after-service forever, so any doubts, just let us know, we will give you solutions in 24 hours.

(5) What is the MOQ?
MOQ for our products is 1 set machine, we could send it to your country port if you tell detail information about your country port.

10. Contact information:
Mobile: +86-18615627569
