North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Operation Language:
English or as Per Client`S Required
Rollers Material:
No.45 Forged Steel with Hard Chrome
Cutter Material:
Cr12 Mould Steel with Quench Treatment
Cutting Style:
Automatic Hydraulic Cut to Length
Shafts For Rollers:
Grand Twice, ID72mm Solid Steel
Quality System:
ISO9001
Guarantee Time:
First Year Free, Lifetime Services
Cotrol System:
Mitsubishi PLC & Converter
Main Power:
15kw
Machine Type:
Purlin Roll Forming Machine
Forging Forming Method:
Cold Roll Forming
Warranty:
12 Months
Product Description

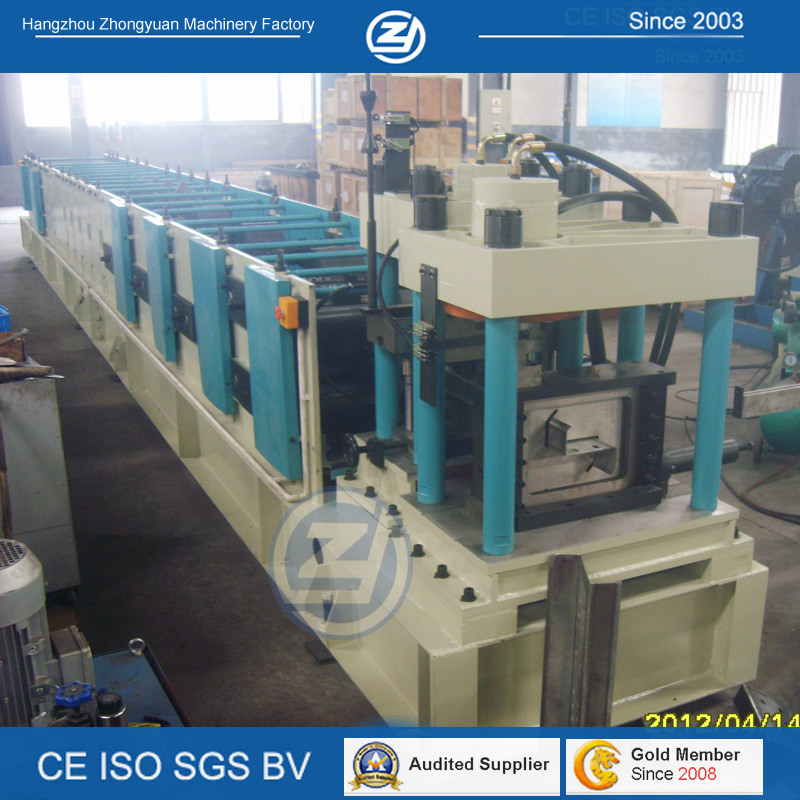

Adjustable Steel Purlin Roll Forming Machine
Why choose this machine? 1. Certificate: ISO 9001, CE, 2. Lifetime seivices 3. 72mm diameter solid steel shaft. Roller cover with 0.05mm chrome; Lifetime>10years. 4. Introduced Mitsubishi PLC with touch screen to machine controll system. 5. One worker operation (minimum) 6. Heat treatment:Cutting blade. Quenched treatment: Cr12 mould steel cutter 7. Product cut-to-length. 8.Technician overseas installing and training available
Machine overview Machine technical data sheet
Adjustable Steel Purlin Roll Forming Machine
Item
Specification
Material
Type
Color steel sheet or galvanized steel sheet
Thickness(mm)
1.5 -3.0
Yield strength(mpa)
235 -345
Roller material
45#Chrome steel
Forming speed(m/min)
About 15-20m/min
Speed adjusting mode
AC Frequency
Roller drive
Decelerating motor + Chain drive
Cutting mode
Hydraulic cutting
Cutter material
Cr12 mould steel
Length measurement
Encoder
Control mode
Mitsubishi PLC
Operating mode
Button + Mitsubishi Touch screen
Main motor power(kw)
15 KW (Depend on final design)
Hydraulic station power
5.5 K W (Depend on final design)
Total power(kw)
20.5 KW
Uncoiler's loading capacity
Max. Capacity: 3000kgs
Machine weight
About 10500kgs
Machine size
About 8*1.5*1.6m (Depend on final design)

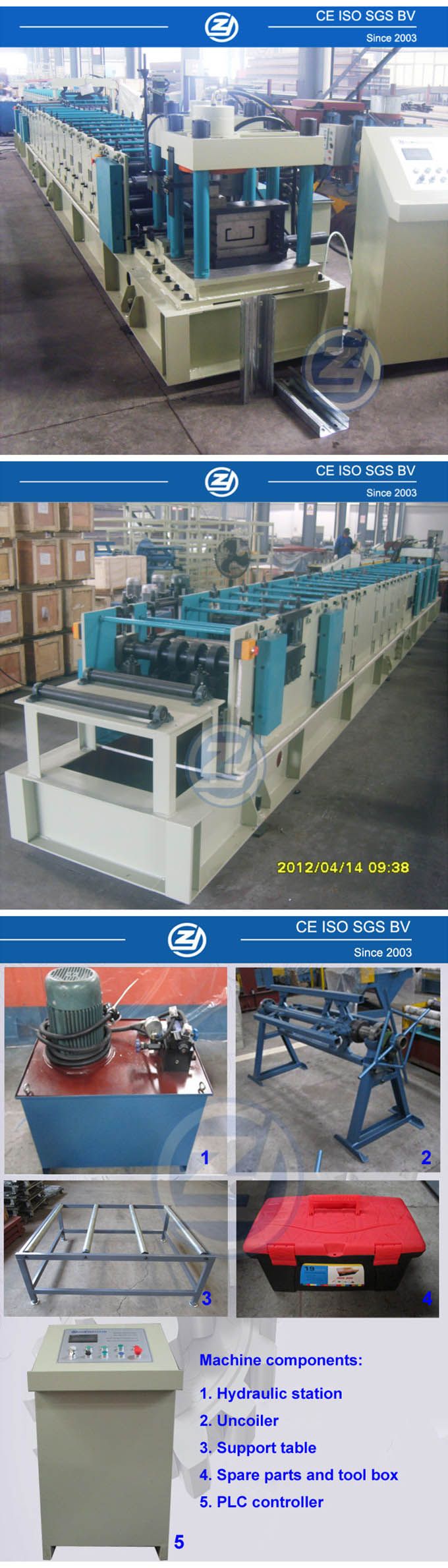

Components of machine:
Decoiler
1set
Feeding & guiding device
1set
Pre-cutting device
1set
Main roll forming machine
1set
Punching equipment
1set
Hydraulic cutting system
1set
PLC Controlling system
1set
Run out table
1set
Process flow: Decoiling the sheet → Leveling sheet → Roll forming → Measure length and cutting → the Purline to the supporter
Packing: 1. One 40feet container for loading one set machine with mechanical decoiler. 2. Main machine body and decoiler is load naked (tighten to container with steel wire rope). 3. Spare parts and operating tools are loading in tooling box.
Delivery : about 70 days after received advaced payment
Why us?
About us We are professional in making roll forming machines since 2003. Company occupies 6650, in which 5650 for workshops. 1. Capacity: 12-15 sets/month 2. Delivery: in only 5-8 weeks for urgent order 3. Have our own tool center. 12 sets CNC machines. 4. Zhongyuan is a "All-in-house source" --from raw material to the final high-precision forming machine. We have our precise tooling center. 5. You can rely on our team! We have engineers with experience more than 15 years in metal forming industry.
Get Free: "Send" below get profile drawing & design support by our 15 year experience technicians FOR FREE!
FAQ: 1) Q: Are you manufacturer or trading company? A: We are manufacturer and trading company .
2) Q: Do you provide installing and training overseas? A: Overseas machine install and worker training services are optional.
3) Q: How is your after sales support? A: We provide technical support on line as well as overseas services by skillful technicians.
4) Q: How does your factory do regarding quality control? A: There is no tolerance regarding quality control. Quality control complies with ISO9001. Every machine has to past testing running before it's packed for shipment.
5) How can I trust you that machines pasted testing running before shipping? A: 1) We record the testing video for your reference. Or, 2) We welcome your visit us and test machine by yourself in our factory.
6) Q: Do you sell only standard machines? A: No. Most machines are made to order.
7) Q: Will you deliver the right goods as ordered? How can I trust you? A: Yes, we will. We are Gold supplier of Made-in-China with SGS assessment (Audit report can be provided).
Established in 2003, Zhongyuan Machinery Factory is experienced manufacturer of metal forming machinery with ISO quality system. We offer a vast range of products, including in sandwich panel line, metal tile forming machine, cladding forming machine, metal decking forming machines, etc. We also can supply steel coils, EPS sandwich panels, PU sandwich panels to suit diverse requirements of our global customers.
At Zhongyuan, our R&D department is staffed with senior engineers who has more than 10 years experience in metal forming machine industry, So we are able to assist customers with professional designing and solution. And more, Our own tooling center is equipped with CNC turning-lathes, Grinding machine for roller shaft, Heavy planing machine, etc, which allow us to complete the majority of our processing procedures on-site. So we can better control the machine quality and delivery time of machines. All our forming machines are undergoes a series treatments, like cutting frames with heat treatment to remove stress of steel, to ensure all our performance requirements are met.
At Zhongyuan, we endeavor to provide quality built metal forming machines at economical prices. By purchasing qualified raw materials from suppliers which we have long term relationships with, we greatly reduce our material cost. Our company is located in Hangzhou City, about 2 hours from Shanghai and 1.5 hours from Ningbo port. This location allows us to ship products quickly and economically to our customers all over the world. As a result, we are able to satisfy our customers with both a high quality and economical metal forming machines.
Today, we have established lasting business relations with customers in more than 20 countries, such as America, Chile, Mexico, Bolivia, Brazil, Colombia, Argentina, Ecuador, Australia, Fiji, Papua New Guinea, Kuwait, Syria, Oman, U. A. E, Nigeria, Tanzania, Ethiopia, Gana, South Sudan, Algeria, Niger, Philippines, Indonesia, India, and others.
We have rich experience for metal forming machine solution, competitive price and excellent service. We will continue to do our best to supply perfect products and service for customers. Invite you to contact us for further information.
