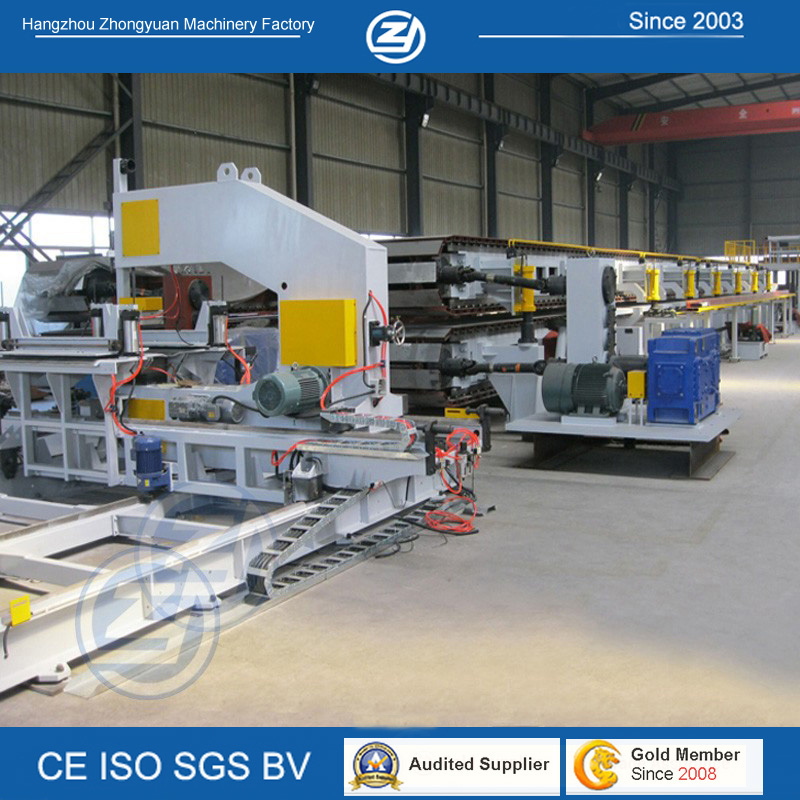

Continuous PU Sandwich Panel Production Line Machine

Continuous PU Sandwich Panel Production Line Machine
Price: US $ 1100000-2000000/Set
Trade Terms: FOB,CFR,CIF
Min Order: 1/Set
Pay Type: L/C,T/T
Prod Model: ZYSP Series
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Total Length: 105m
Certificate: CE
Total Power: About 100kw
Double Belt Conveyor: 23m
Control Model: Misubishi PLC
Working Speed: Max.8m/Min (Adjustable)
Stacking Height: 1000mm
Operation Language: English or as Per Client`S Required
Cutting Style: Automatic Hydraulic Cut to Length
Guarantee Time: First Year Free, Lifetime Services
Forging Forming Method: Cold Roll Forming

Product Description

PU Sandwich Panel Line (ZYSP Series)

1.  Manufacturing roll forming machine since 2003
2.  With ISO,SGS,BV and CE certificate
3.  2 year quality warranty
4.  Export to more than 20 countries
5.  Technician can be sent to your factory to install the machine and train your workers

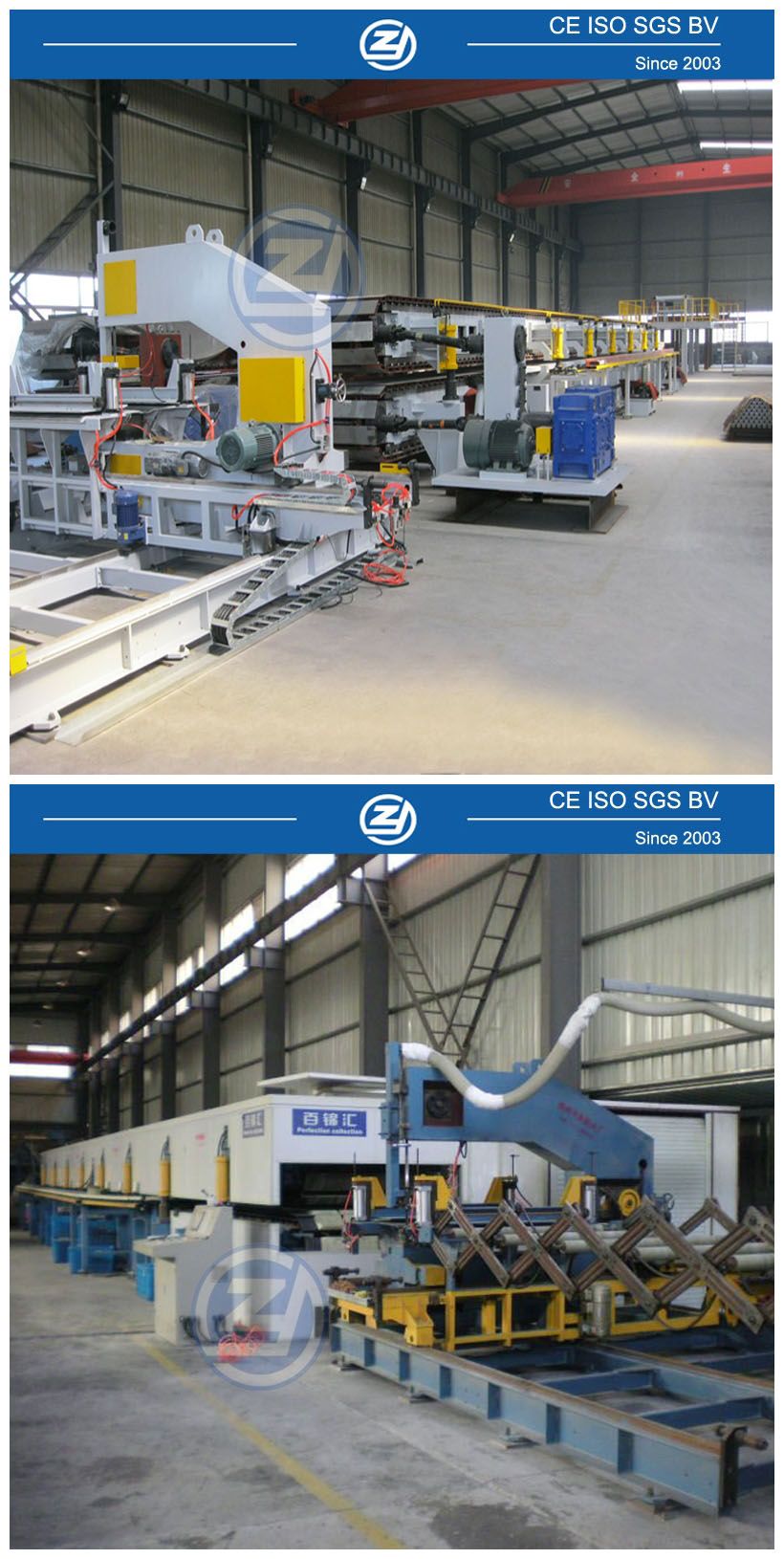

Continuous PU Sandwich Panel Production Line Machine

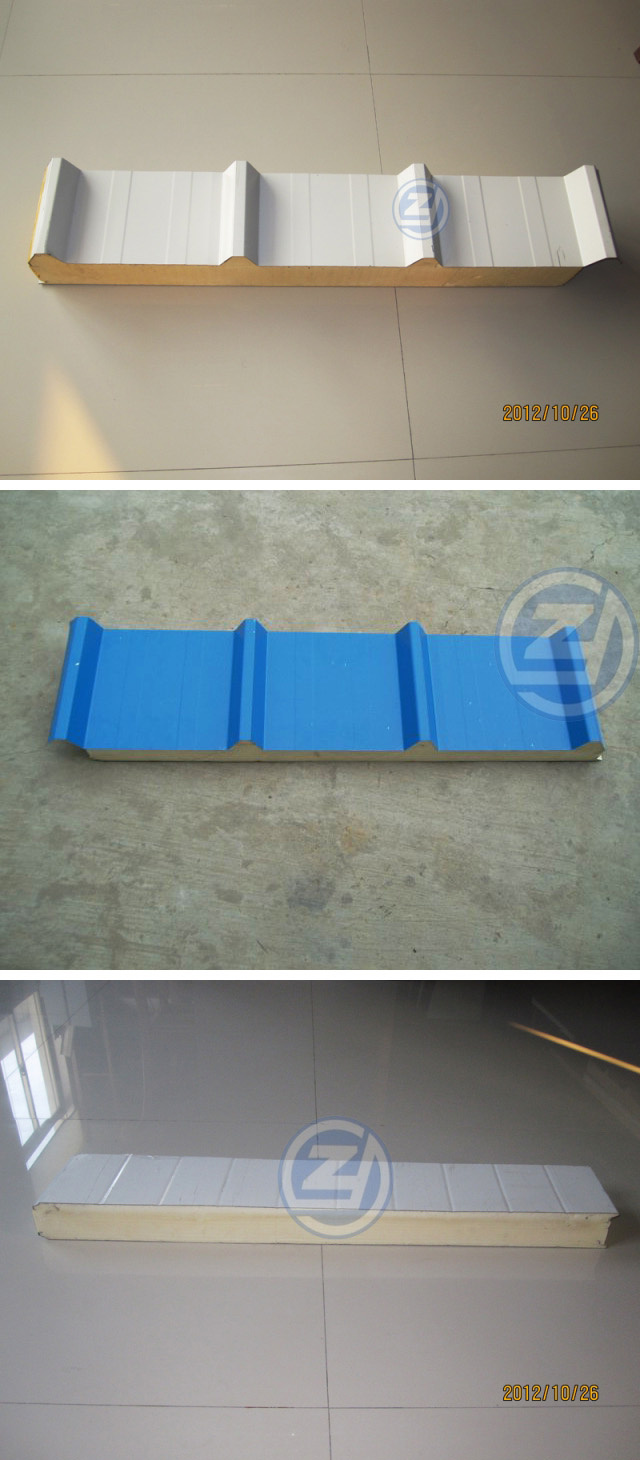

Formed Sheet




Technical parameters
ItemSpecification
Raw MaterialTypeColor steel coil
Thickness(mm)0.4-0.7
Yield strength(mpa)235-345
Max. Width 1250
Sandwich Panel Panel width  950-1000mm (according to profile requirement)
Mini thickness40mm (corrugated sandwich panel)
50mm (wall panel)
Max. Thickness 150mm (corrugated sandwich panel)
200mm (wall panel)
Min. cutting length 3 m
Max. Stacking length15m
Working height     1150mm (height of panel coming out)
PU forming density ABOUT 40 kg/m3
Pressure for foaming 150-200 bar
Effective length of double belt conveyor23m
Roller material45# steel , coated with Chrome
Shaft for rollers Solid shaft with 72mm,processed with cylindrical grinder
Forming speed(m/min)3-7m/min (adjustable)
Speed adjusting modeMisubishi frequency transformer
Roller drive                                               Decelerating motor + Chain drive
Cutting modeHydraulic cutting
Cutter material Cr12 mould steel
Length measurementNemicon Encoder
Control modeMitsubishi PLC
Operating modeButton + Mitsubishi Touch screen
Total power(kw)About 100KW


Components

QTY.
Hydraulic Uncoiller2set
Platform for forming machine1set
Roll Forming System2set
Foaming system1set
Double Belt Laminator1set
Cutting System1set
Stacking system1set

WHY US?
We care about quality
1. ISO, CE certificate
2. Electric elements: Mitsubishi PLC & transducer from Japan.
Rollers: High grade No. 45 forged steel. Plated with 0.05mm hard chrome
Active shaft: High grade No. 45 carbon wrought steel. Well resisting.
Cutter blade: Cr12 mould steel with quenched treatment
Precision: shafts are tooled by grinding machine at least twice. Rollers are CNC processed.

We care about user experience
Controller is the "CPU" of forming machine. We choose Mitsubishi PLC from Japan.
With touch screen mode, let your workers enjoy the easy operation;
With auto working mode, let your workers free their hands!

We care about your concern
Delivery: in only 5-8 weeks
Container was sealed
Machine installing and training: engineer overseas sevices
Inspecting and testing machine: before shiping

We care about the "special"
Can not find the machine you need? Why not customize it!
We have: 12 years experience in making roll forming machine
                    15 years experience engineers


About us
We are professional in making roll forming machines since 2003. Company occupies 6650, in which 5650 for workshops.
1.  Capacity: 12-15 sets/month
2.  Delivery: in only 5-8 weeks for urgent order of roll forming machine
3.  Have our own tool center. 12 sets CNC machines.
4. Zhongyuan is a "All-in-house source"
     --from raw material to the final high-precision forming machine. We have our precise tooling center.
5.  You can rely on our team!
      We have engineers with experience more than 15 years in metal forming industry.


Get Free:
"Send" below get profile drawing & design technical support by our 15 year experience technicians FOR FREE!


FAQ:
1) Q: Are you manufacturer or trading company?
A: We are manufacturer and trading company .

2) Q: Do you provide installing and training overseas?
A: Overseas machine install and worker training services are optional.

3) Q: How is your after sales support?
A: We provide technical support on line as well as overseas services by skillful technicians.

4) Q: How does your factory do regarding quality control?
A: There is no tolerance regarding quality control. Quality control complies with ISO9001. Every machine has to past testing running before it's packed for shipment.

5) How can I trust you that machines pasted testing running before shipping?
A:  1) We record the testing video for your reference. Or,
    2) We welcome your visit us and test machine by yourself in our factory.

6) Q: Do you sell only standard machines?
A: No. Most machines are made to order.

7) Q: Will you deliver the right goods as ordered? How can I trust you?
A: Yes, we will. We are Gold supplier of Made-in-China with SGS assessment (Audit report can be provided).

Established in 2003, Zhongyuan Machinery Factory is experienced manufacturer of metal forming machinery with ISO quality system. We offer a vast range of products, including in sandwich panel line, metal tile forming machine, cladding forming machine, metal decking forming machines, etc. We also can supply steel coils, EPS sandwich panels, PU sandwich panels to suit diverse requirements of our global customers.

At Zhongyuan, our R&D department is staffed with senior engineers who has more than 10 years experience in metal forming machine industry, So we are able to assist customers with professional designing and solution. And more, Our own tooling center is equipped with CNC turning-lathes, Grinding machine for roller shaft, Heavy planing machine, etc, which allow us to complete the majority of our processing procedures on-site. So we can better control the machine quality and delivery time of machines. All our forming machines are undergoes a series treatments, like cutting frames with heat treatment to remove stress of steel, to ensure all our performance requirements are met.

At Zhongyuan, we endeavor to provide quality built metal forming machines at economical prices. By purchasing qualified raw materials from suppliers which we have long term relationships with, we greatly reduce our material cost. Our company is located in Hangzhou City, about 2 hours from Shanghai and 1.5 hours from Ningbo port. This location allows us to ship products quickly and economically to our customers all over the world. As a result, we are able to satisfy our customers with both a high quality and economical metal forming machines.

Today, we have established lasting business relations with customers in more than 20 countries, such as America, Chile, Mexico, Bolivia, Brazil, Colombia, Argentina, Ecuador, Australia, Fiji, Papua New Guinea, Kuwait, Syria, Oman, U. A. E, Nigeria, Tanzania, Ethiopia, Gana, South Sudan, Algeria, Niger, Philippines, Indonesia, India, and others.

We have rich experience for metal forming machine solution, competitive price and excellent service. We will continue to do our best to supply perfect products and service for customers. Invite you to contact us for further information.
