| Prod Model: |
C41-150KG |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Material: |
Iron,Steel |
Product Description

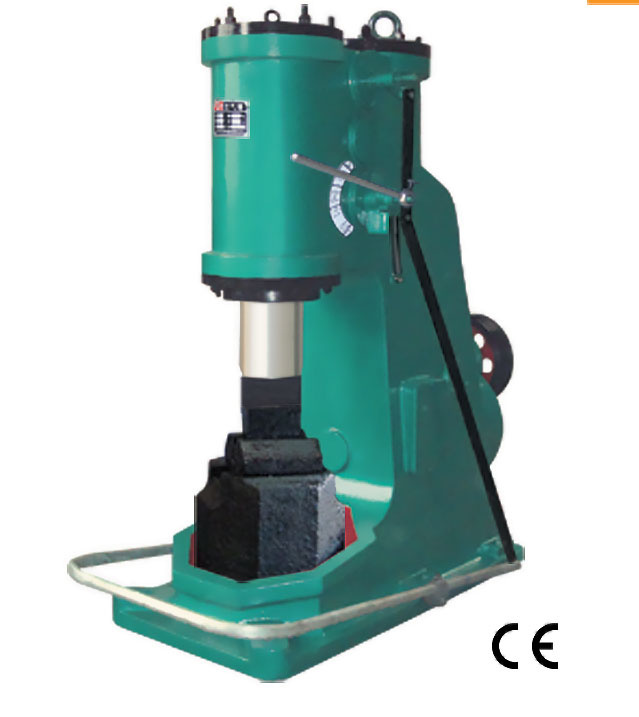

This pneumatic forging hammer is widely used for general Forging works, such as drawing-out, upsetting, punching, chiseling, forge, welding, bending and twisting, it is also used for forge in bolster dies.
The air hammer is also called power hammer, iron forging hammer, blacksmithing hammer, pneumatic forging hammer.
| SPECIFICATION | UNIT | C41-150kg |
| Max. hit energy | kj | 2.2 |
| Height of working area | mm | 370 |
| Hit number | min-1 | 180 |
| Max. square steel can be forged | mm | 130 x 130 |
| Max. round steel can be forged(Diameter) | mm | 145 |
| Motor power | kw | 15 |
| Speeds of motor | r. p. m | 1470 |
| Anvil weight | kg | 1800 |
| Total weight | kg | 5060 |
| Overall dimensions(L*W*H) | mm | 2080*1240*2350 |
Established in 1988, Tengzhou Runfa Machinery Limited Liability Company is a manufacturer and trader specialized in the research, development and production of milling machines and air hammers. We are located in Tengzhou, Shandong Province, with convenient transportation access. All of our products comply with international quality standards and are greatly appreciated in a variety of different markets throughout the world.
If you are interested in any of our products or would like to discuss a custom order, please feel free to contact us. We are looking forward to forming successful business relationships with new clients around the world in the near future.
