| Prod Model: |

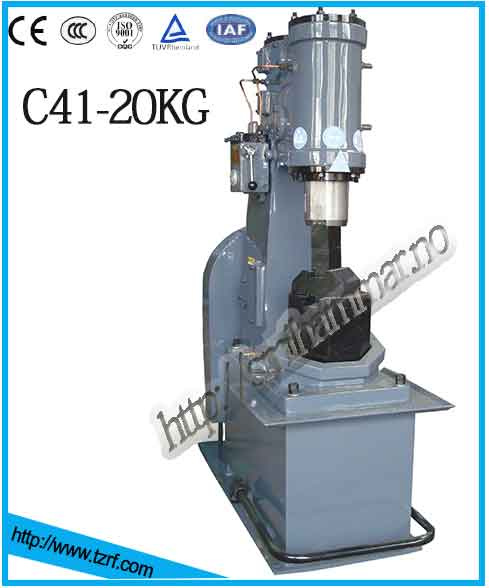

C41-20kg |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Forging Forming Method: |
Free Forging |
Product Description
Air hammer is widely used for general Forging works, such as drawing-out, upsetting, punching, chiseling, forge, welding, bending and twisting, it is also used for forge in bolster dies.
|
Item |
Unit |
Numerical Value |
|
Weight of falling parts |
kg |
16 |
20 |
25 |
40 |
75 |
150 |
|
Maximum blow energy |
J |
180 |
220 |
270 |
530 |
900 |
2200 |
|
Distance from center of die to frame |
mm |
150 |
180 |
200 |
235 |
300 |
350 |
|
Distance between top and bottom die |
mm |
180 |
200 |
240 |
245 |
300 |
370 |
|
Number of blows per minute |
min-1 |
258 |
270 |
250 |
245 |
210 |
180 |
|
Dimension of top to bottom |
mm |
70*30 |
90*50 |
100*50 |
120*50 |
145*65 |
|
|
Diameter of the working cylinder |
mm |
115 |
150 |
165 |
200 |
235 |
330 |
|
Diameter of the compressing cylinder |
mm |
125 |
155 |
170 |
205 |
240 |
340 |
|
Travel distance of malleus |
mm |
210 |
200 |
275 |
290 |
345 |
370 |
|
Travel distance of plunger |
mm |
120 |
130 |
140 |
154 |
200 |
|
|
Forges |
Round |
mm |
|
Φ 35 |
Φ 45 |
Φ 68 |
Φ 85 |
Φ 145 |
|
Square |
mm |
|
30 |
40 |
52 |
65 |
130 |
|
Motor |
Power |
kw |
1.5 |
2.0 |
2.2 |
4.5 |
7 |
15 |
|
Rotate speed |
rpm |
|
1440 |
1440 |
1440 |
1440 |
1470 |
Outside Size |
Length |
mm |
584 |
670 |
800 |
1080 |
1600 |
2080 |
|
Width |
mm |
390 |
360 |
410 |
600 |
950 |
1240 |
|
High |
mm |
952 |
1050 |
1213 |
1389 |
1950 |
2350 |
|
Anvil block weight |
kg |
|
190 |
247 |
400 |
850 |
1800 |
|
Hammer weight |
kg |
~220 |
~500 |
~720 |
~1400 |
~2800 |
~5060 |
Established in 1988, Tengzhou Runfa Machinery Limited Liability Company is a manufacturer and trader specialized in the research, development and production of milling machines and air hammers. We are located in Tengzhou, Shandong Province, with convenient transportation access. All of our products comply with international quality standards and are greatly appreciated in a variety of different markets throughout the world.
If you are interested in any of our products or would like to discuss a custom order, please feel free to contact us. We are looking forward to forming successful business relationships with new clients around the world in the near future.
