Size:
1/2'' to 500''
Molding Style:
Forging
Processing Object:
Metal
Product Description
OEM Heavy Forged Arbor Axis Company profile We are the manufacturer specialized in machining heavy duty forging parts for nearly 18 years.Our products, such as drive shaft, Forging Hollow Shaft, Shaft Sleeve, Eccentric shaft, Forging rod, Large bolt, Heavy Duty Hydraulic Cylinder, are widely used in coiled material, petroleum, metallurgy, mine, machinery and transportation industry. etc. Packaging & Delivery
Packaging Details:
Export standard package or according to customer requirement
Delivery Detail:
30~60days according to various quantity
Product List
Name
Technique
Material
Dia/mm
Wall thickness
Length/mm
Forging shaft
Forging+turning+grinding
alloy steel carbon steel stainless steel
200-800
----
500-20000
Hollow shaft
Forging+drilling+turning
150-800
≥15mm
≤17000
Shaft sleeve
Forge+drill & bore+turning +milling
400-700
≥15mm
≤18000
Large bolt
Rolled/forge+turning+threading
300-800
----
≤17000
Hydraulic cylinder
Forging+drill & bore+ turning
300-2000
≥10mm
≤10000
Other parts in deep-hole
Forge+ drill & bore+turning+mill
300-2000
----
≤20000
Product Flow 1.Inquiry with drawings in details. 2.Confirm steel material, chemical compositions, mechanical properties, tolerance. 3.Confirm payment terms,order materials or check material in stock. 4.Check material chemical compositions, material weight, dimensions. 5.Cut materials record weight, making mould for casting of pr-hearting for forging. 6.Forging ratios, heat treatment ,dimension check. 7.Rough machining, UT test,heat treatment. 8.Semi-finish, quenching, 8.Fine machining, UT test, dimension inspection, mechanical properties test. 9.Customer inspection, packing, delivery arrangement. Steel ingot making EAF+LF+VD/VAD or ESR Manufacturing process EAF + LF + VD+ Forging+ Normalizing & Tempering + Rough machining + UT test + Quenching & Tempering + Precision machining Report Chemical composition report, Physical properties report, Heat treatment report, Dimensional inspection report, NDT report Nondestructive test (NDT) UT ( ultrasonic testing ), MT ( magnetic particle testing ), PT ( penetrant testing) Quality certification : ISO 9001: 2008, IQNET
We sincerely hope establishing long and friendly business relations with clients from all over the world. Our goal is not just providing product, but also providing a complete solution including product design, tooling, fabrication and service for our customers to achieve their upmost satisfaction.
Forging weight is from 50 kg to 20 ton. Many kinds of materials, free size.
Smelting Process: EF+LF + VD+VC The process as follow: Ingot → Heat → Forging → Heat treatment (Normalizing+ tempering) → Inspection → Rough machining→ UT → 2th Heat treatment → Finishing machining → Inspection

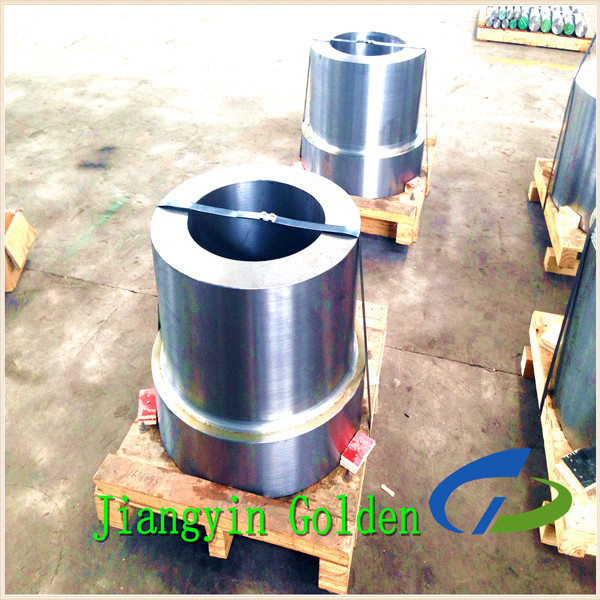

Applications: The heavy forging: Forged ring, shaft, roller, flange, or gear is widely used for various industries For example: Metallurgy, mining, power station and so on.
Specifications:
Description
The heavy forging: Forged ring, shaft, roller, flange, or gear
The heavy forging is manufactured by large scale stated enterprise. Advanced technical process from smelting steel to forging and heat treat guarantees the product quality. Closed relationship with several famous stated enterprises guarantee "in-time delivery" and competitive price.
Excellent product quality and service, competitive price, "in-time" delivery
