(AJH21 Series) Single Crank Press Machine

Prod Model:	AJH21 Series
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Type:	High-Speed Punching Machine
Controlling Mode:	Artificial
Automatic Grade:	Automatic
Precision:	High Precision

Product Description

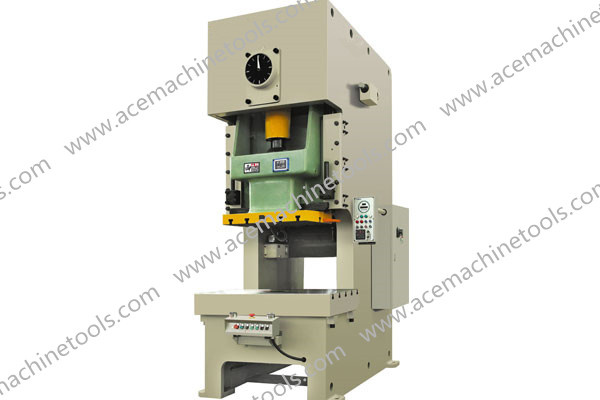

(AJH21 Series) C-Frame Single Crank Presses/Pressing Machine (with fixed stroke)

C-frame presses, also known as gap frame presses, open frame, or open front presses, consist of a frame shaped roughly like the letter "C, "with a bed at the bottom and a guide and support structure for a moving ram at the top. The frame may be a large casting, or a steel fabrication that is either welded or riveted. The bed, in turn, may be an integral part of the frame, or it may be moveable to adjust the distance between the ram and bed.
The SJH21 series C press is with dry clutch and hydraulic overload with steel welded body and good rigidity. This C frame power press has six guide rail sliders, long and high precision, which can prolong its life span.
The crank-shaft is placed vertically, so the structure is compact and the contour is beautiful. It is equipped with combined wet pneumatic friction clutch, so the engagement is smooth, the action is agile and the noise is low. And this crank press is of convenient maintenance. The C frame power press has hydraulic overload protection device which can stop in emergency automatically to enhance the press and die safety for an easy use. This single crank press owns concentrated lubrication system with oil alarm function to ensure that the machine runs smoothly. The high speed press is controlled by LC electric centralized system, with emergency stop, inch, single, continuous operation specification with a drive output shaft, automatic feeding, and air cushion device.

JH21 series open-type press with fixed table
			AJH21-25		AJH21-45		AJH21-60		AJH21-80		AJH21-110		AJH21-125		AJH21-160
			L	S	L	S	L	S	L	S	L	S	L	S	L	S
Nominal capacity		kN	250		450		600		800		1100		1250		1600
Nominal power stroke		mm	2.8		3.2		4		4.5		5		5		6
Slide stroke		mm	80	50	100	70	120	80	140	90	160	100	160	100	180	110
Stroke number	variable-speed mode	S.P.M	70~100	80~130	60~90	70~110	50~80	60~100	40~75	50~90	35~70	45~80	30~65	45~80	30~55	35~70
	Single speed	S.P.M	90	110	80	100	70	90	60	80	60	80	55	70	50	60
Maximum die height		mm	250	265	270	285	300	320	320	345	350	380	370	400	400	435
Die height adjustment		mm	50		60		70		80		90		90		100
Throat depth		mm	210		225		270		290		350		370		390
Distance between columns		mm	450		500		560		590		680		710		800
Slide bottom size	About	mm	360		410		480		560		620		620		700
	Before and after	mm	250		340		400		430		520		520		580
Size of the handle hole	Diameter	mm	φ40		φ50		φ50		φ60		φ70		φ70		φ70
	Depth	mm	60		60		60		80		80		80		100
Size of table	About	mm	710		810		870		1000		1100		1120		1260
	Before and after	mm	400		440		520		560		680		720		760
	Thickness	mm	85		110		130		130		160		160		165
Hole of the table	Diameter	mm	φ100		φ150		φ150		φ150		φ160		φ160		φ180
Motor power of stepless speed regulation		kW	3		5.5		7.5		7.5		11		15		15
Motor power of single speed		kW	3		5.5		5.5		7.5		11		11		15
Overall dimensions	About	mm	950		1080		1200		1385		1419		1480		1573
	Before and after	mm	1350		1410		1615		1915		2200		2300		2355
	Height	mm	2160		2300		2570		2820		3190		3220		3375
Total weight		kg	3100		4000		6000		7800		11000		13000		14200
