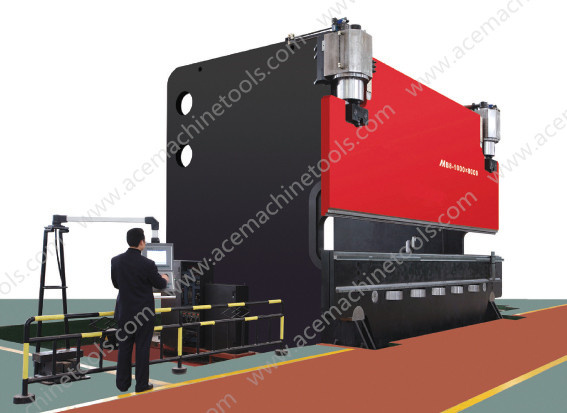

Large CNC Hydraulic Press Brake Machine (Large Series)
Bending length: 4000-12000mm
Key Feature:
MB series CNC hydraulic press brake has two hydraulic cylinders with electro hydraulic servo valve.
Deflection can be compensated by hydraulic vaulted back-off system.
Backgauge mechanism can control several backgauge axes.
Its frame is welded with steel plate and is treated with annealing.
Hydraulic system adopts integrated control system and imported ring seals.
It has a beautiful and simple contour. CNC system uses DA65W/DA66W/DA52 system with Chinese manu made in delem company of Holland.
It can also be equipped with mould fixture according to customer's requirement.
| Model |
500×4000 | 500×5000 | 500×6000 | 600×6000 | 600×7000 | 600×8000 | 800×6000 | 800×7000 |
| Capacity | kN | 5000 | 5000 | 5000 | 6000 | 6000 | 6000 | 8000 | 8000 |
| Max. Bending Length | mm | 4000 | 5000 | 6000 | 6000 | 7000 | 8000 | 6000 | 7000 |
| Between Columns | mm | 3050 | 4050 | 5050 | 5050 | 6050 | 6200 | 4760 | 5760 |
| Max. Shut Height | mm | 700 | 700 | 700 | 740 | 740 | 740 | 920 | 920 |
| Slide Stroke | mm | 320 | 320 | 320 | 320 | 320 | 320 | 400 | 400 |
| Throat Depth | mm | 400 | 400 | 400 | 400 | 400 | 400 | 500 | 500 |
| Bolster Width | mm | 300 | 300 | 300 | 300 | 300 | 300 | 400 | 400 |
| Down Speed | mm/min | 75 | 75 | 75 | 80 | 80 | 80 | 75 | 75 |
| Pressing Speed | mm/min | 8 | 8 | 8 | 8 | 8 | 8 | 8 | 8 |
| Return Speed | mm/min | 75 | 75 | 75 | 80 | 80 | 80 | 75 | 75 |
| Back Gauge Stroke | mm | 700 | 700 | 700 | 700 | 700 | 700 | 1000 | 1000 |
| Outline Size | L | mm | 4500 | 5500 | 6500 | 6500 | 7500 | 8500 | 6500 | 7500 |
| W | mm | 2700 | 2700 | 2700 | 2700 | 2700 | 2700 | 3120 | 3120 |
| H | mm | 5000 | 5000 | 5000 | 5200 | 5200 | 5200 | 5800 | 5800 |
| Weight | kg | 40000 | 45000 | 55000 | 65000 | 70000 | 76000 | 102000 | 108000 |
|
| Model | 800×8000 | 1000×6000 | 1000×8000 | 1000×12000 | 1200×8000 | 1200×12000 | 1600×8000 |
|
| Capacity | kN | 8000 | 10000 | 10000 | 10000 | 12000 | 12000 | 16000 |
|
| Max. Bending Length | mm | 8000 | 6000 | 8000 | 12000 | 8000 | 12000 | 8000 |
|
| Between Columns | mm | 6200 | 4760 | 6200 | 9050 | 6200 | 9050 | 6200 |
|
| Max. Shut Height | mm | 920 | 920 | 920 | 920 | 1020 | 1020 | 1020 |
|
| Slide Stroke | mm | 400 | 400 | 400 | 400 | 400 | 400 | 400 |
|
| Throat Depth | mm | 500 | 600 | 600 | 600 | 600 | 600 | 600 |
|
| Bolster Width | mm | 400 | 400 | 400 | 400 | 400 | 400 | 400 |
|
| Down Speed | mm/min | 75 | 70 | 70 | 70 | 65 | 65 | 60 |
|
| Pressing Speed | mm/min | 8 | 8 | 8 | 8 | 7 | 7 | 7 |
|
| Return Speed | mm/min | 75 | 70 | 70 | 70 | 65 | 65 | 60 |
|
| Back Gauge Stroke | mm | 1000 | 1000 | 1000 | 1000 | 1000 | 1000 | 1000 |
|
| Outline Size | L | mm | 8500 | 6500 | 8500 | 12500 | 8500 | 12500 | 8500 |
|
| W | mm | 3120 | 3520 | 3520 | 3520 | 4250 | 4250 | 4470 |
|
| H | mm | 5800 | 6000 | 6000 | 6000 | 6750 | 6750 | 7500 |
|
| Weight | kg | 115000 | 110000 | 135000 | 185000 | 160000 | 225000 | 215000 |
|
|
| Model | 1600×12000 | 2000×8000 | 2000×12000 |
|
|
|
|
|
| Capacity | kN | 16000 | 20000 | 20000 |
|
|
|
|
|
| Max. Bending Length | mm | 12000 | 8000 | 12000 |
|
|
|
|
|
| Between Columns | mm | 9050 | 6200 | 9050 |
|
|
|
|
|
| Max. Shut Height | mm | 1020 | 1020 | 1020 |
|
|
|
|
|
| Slide Stroke | mm | 400 | 400 | 400 |
|
|
|
|
|
| Throat Depth | mm | 600 | 600 | 600 |
|
|
|
|
|
| Bolster Width | mm | 400 | 500 | 500 |
|
|
|
|
|
| Down Speed | mm/min | 60 | 60 | 60 |
|
|
|
|
|
| Pressing Speed | mm/min | 7 | 7 | 7 |
|
|
|
|
|
| Return Speed | mm/min | 60 | 60 | 60 |
|
|
|
|
|
| Back Gauge Stroke | mm | 1000 | 1000 | 1000 |
|
|
|
|
|
| Outline Size | L | mm | 12500 | 8500 | 12500 |
|
|
|
|
|
| W | mm | 4470 | 4820 | 4820 |
|
|
|
|
|
| H | mm | 7500 | 9050 | 9050 |
|
|
|
|
|
| Weight | kg | 265000 | 270000 | 332000 |
|
|
|
|
|
