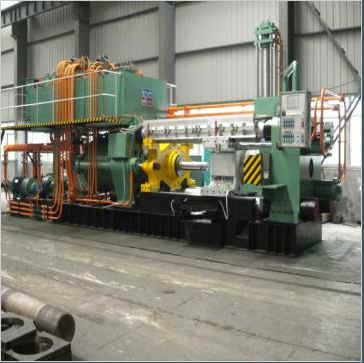

Product Description
Detailed Product Description
Hydraulic pressure 21MPa
Force Main arm: 951T
Faster cylinder: 64T
Cylinder back force 37T
Container retaining force 58T
Shear force 30T
Extrusion speed 0~13mm/s
Container size Inside diameter: Φ135mm
Length: 600mm
Billet size diameter: Φ130mm
Length: 250~550mm
Motor power around 17.25KW
Container power 2KWx15=30KW
Operation mode Manual and single automation
Equipment (L*W*H) 9*2.3*3.1m
Equipment weight 45T
Wuxi Yuanchang Machinery Manufactury Co., Ltd was founded in 1995 which is specially engaged in manulacturmg various non-ferrous metals pressure equipment. At present, it has produced series products with more than 30 specification in 3 major species from 300 tons to 3000 tons, which applied for aluminum, cooper, or magnesium processing industries and our products are used by a great many ferrous enterprise as well as scientific research institutes, colleges, universities and foreign clients. Now the products are distributed throughout the country and are exported abroad, such as USA, Argentina, Australia, Turkey, Uzbekistan, Russia, Lebanon, Syria, India, Kenya etc. The company is the domestic professional apotheosis and business pioneer of the extruder manufacturing line.
The company is one of the earlier established private limited enterprise in Jiangsu province. It has a floor space of over 30, 000m and strong machining capability, including a variety of production equipments, such as large-sized floor mounting boring machine, large-sized floor mounting lathe, double housing planer, vertical lathe, 8m extension lathe, etc. Varieties of extruding equipments and extruding production lines are manufactured and sold up to over 200 sets per year.
