Product Description

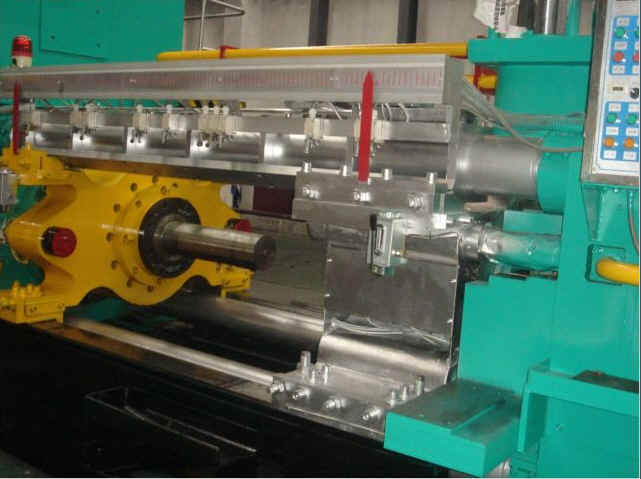

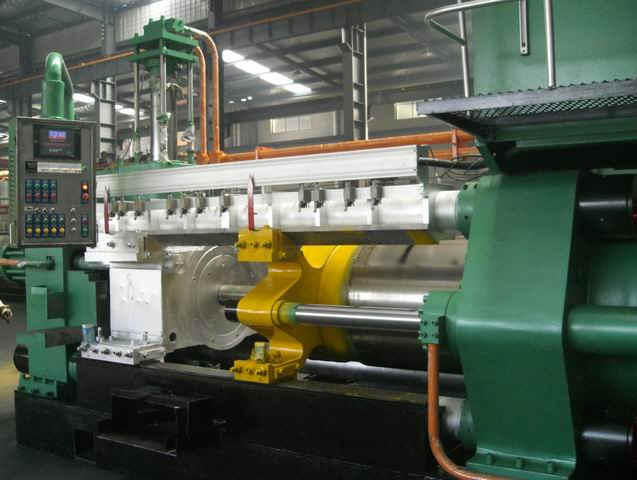

The machine has a four-column horizontal structure consisting of top-mounted oil tank, well-laid hydraulic piping and integrating electrical system. Installation and maintenance are convenient.
Mobile bean can be located at four positions and centre-adjusted. Mould moving mechanism can travel between two stations, safely and fast.
According to user's requirement special processes can be designed, such as double-motion seamless tubes extruding process, seamless tube short-range extruding process with floating hollow jets, reversible extruding process, constant temperature and speedregulating extruding process, etc.
Hydraulic products from Gemany REXROTH, Japan YUKEN orus VICKERS are optionally used according to user requirement.
Electronic component adopts the control system PLC of MITSUBISHI, Japan. Touch screen and speed sensor can set and regulate the speed.
Hydraulic pressure
| 21MPa
|
force
| Main arm:1163T
|
Faster cylinder:106T
|
Cylinder back force
| 59T
|
Container retaining force
| 74T
|
Shear force
| 40T
|
Extrusion speed
| 1.2~15mm/s
|
Container size
| Inside diameter:Φ158mm
length:650mm
|
Billet size
| diameter:Φ150mm
length:250~600mm
|
Motor power
| ≈180KW
|
Container power
| 2KW×15=30KW
|
Operation mode
| Manual and single automation
|
Equipment (L×W×H)
| 11×2.5×3.4m
|
equipment weight
| 55T
|
Wuxi Yuanchang Machinery Manufactury Co., Ltd was founded in 1995 which is specially engaged in manulacturmg various non-ferrous metals pressure equipment. At present, it has produced series products with more than 30 specification in 3 major species from 300 tons to 3000 tons, which applied for aluminum, cooper, or magnesium processing industries and our products are used by a great many ferrous enterprise as well as scientific research institutes, colleges, universities and foreign clients. Now the products are distributed throughout the country and are exported abroad, such as USA, Argentina, Australia, Turkey, Uzbekistan, Russia, Lebanon, Syria, India, Kenya etc. The company is the domestic professional apotheosis and business pioneer of the extruder manufacturing line.
The company is one of the earlier established private limited enterprise in Jiangsu province. It has a floor space of over 30, 000m and strong machining capability, including a variety of production equipments, such as large-sized floor mounting boring machine, large-sized floor mounting lathe, double housing planer, vertical lathe, 8m extension lathe, etc. Varieties of extruding equipments and extruding production lines are manufactured and sold up to over 200 sets per year.
