Aluminium Longspan Cold Roll Forming Machine

Aluminium Longspan Cold Roll Forming Machine
Price: US $ 23000-30000/Set
Trade Terms: FOB,CFR,CIF
Min Order: 1/Set
Pay Type: L/C,T/T
Prod Model: ZYYX
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Certificate: CE
Operation Language: English or as Per Client`S Required
Rollers Material: No.45 Forged Steel with Hard Chrome
Cutter Material: Cr12 Mould Steel with Quench Treatment
Cutting Style: Automatic Cut to Length
Shafts For Rollers: Grand Twice, ID72mm Solid Steel
Guarantee: First Year Free, Lifetime Services
Cotrol System: Mitsubishi PLC & Converter
Machine Color: 7.5kw
Quality System: ISO9001
Forging Forming Method: Cold Roll Forming

Product Description

Aluminium Longspan Cold Roll Forming Machine

This aluminium longspan cold roll forming machine was designed by 15 years experienced R&D members with lifetime seivices.
Introduced Mitsubishi PLC with touch screen.
Need only one worker (minimum) to operate
Roller cover with 0.05mm chrome, ensure lifetime>10years
Cr12 mould steel cutter with quenched treatment. Blade with heat treatment.
Product cut-to-length.


Machine spec.
1. Material:color steel sheet
2. Yield strength: 235Mpa
3. Thickness: 0.4-0.7mm
4. Forming Speed:20m/min.
5. Main motor power: 7.5Kw(Depend on final design)
6. Hydraulic station power: About 2.2Kw (Depend on final design)
7. Manual decoiler Max. Capacity: 5000kgs
8. Power 380V/3Phase/ 50Hz

Machine overview




Parameters

                           Aluminium longspan cold roll forming machine
ItemSpecification

Raw Material
TypePre-painted steel coil & galvanized coils
Thickness(mm)0.3-0.7
Yield strength(mpa)235-550
Roller material45# steel , coated with Chrome
Shaft for rollers Solid shaft with 72mm,processed with cylindrical grinder
Forming speed(m/min)About 20-25
Output speed(m/min)About 12 for 6m length sheet
Speed adjusting modeMitsubishi frequency transformer
Roller drive                                               Decelerating motor + Chain drive
Cutting modeHydraulic cutting
Cutter material Cr12 mould steel
Length measurementNemicon Encoder
Control modeMitsubishi PLC
Operating modeButton + Mitsubishi Touch screen
Main motor power(kw)7.5KW
Total power(kw)9.9 KW

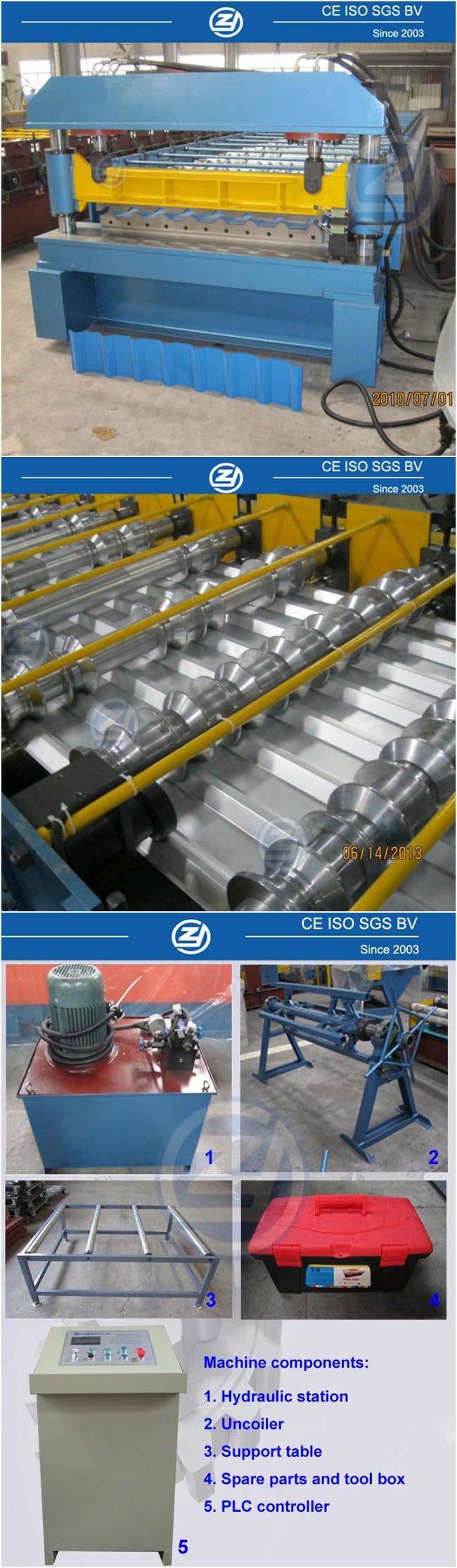

Components of machine
Decoiler (manual decoiler and hydraulic decoiler for option)1set
Feeding & guiding device1set
Main roll forming machine1set
Hydraulic cutting system1set
Controlling system1set
Run out table (auto. Stacker for option)1set


Process flow
Decoiler -- Feeding & Guiding -- Roll forming---Hydraulic Cutting - product to run out table



Why us?



About us
We are professional in making roll forming machines since 2003. Company occupies 6650, in which 5650 for workshops.
1.  Capacity: 12-15 sets/month
2.  Delivery: in only 5-8 weeks for urgent order
3.  Have our own tool center. 12 sets CNC machines.
4. Zhongyuan is a "All-in-house source"
     --from raw material to the final high-precision forming machine. We have our precise tooling center.
5.  You can rely on our team!
      We have engineers with experience more than 15 years in metal forming industry.


Get Free:
Provide profile drawing & design technical support FOR FREE!


Established in 2003, Zhongyuan Machinery Factory is experienced manufacturer of metal forming machinery with ISO quality system. We offer a vast range of products, including in sandwich panel line, metal tile forming machine, cladding forming machine, metal decking forming machines, etc. We also can supply steel coils, EPS sandwich panels, PU sandwich panels to suit diverse requirements of our global customers.

At Zhongyuan, our R&D department is staffed with senior engineers who has more than 10 years experience in metal forming machine industry, So we are able to assist customers with professional designing and solution. And more, Our own tooling center is equipped with CNC turning-lathes, Grinding machine for roller shaft, Heavy planing machine, etc, which allow us to complete the majority of our processing procedures on-site. So we can better control the machine quality and delivery time of machines. All our forming machines are undergoes a series treatments, like cutting frames with heat treatment to remove stress of steel, to ensure all our performance requirements are met.

At Zhongyuan, we endeavor to provide quality built metal forming machines at economical prices. By purchasing qualified raw materials from suppliers which we have long term relationships with, we greatly reduce our material cost. Our company is located in Hangzhou City, about 2 hours from Shanghai and 1.5 hours from Ningbo port. This location allows us to ship products quickly and economically to our customers all over the world. As a result, we are able to satisfy our customers with both a high quality and economical metal forming machines.

Today, we have established lasting business relations with customers in more than 20 countries, such as America, Chile, Mexico, Bolivia, Brazil, Colombia, Argentina, Ecuador, Australia, Fiji, Papua New Guinea, Kuwait, Syria, Oman, U. A. E, Nigeria, Tanzania, Ethiopia, Gana, South Sudan, Algeria, Niger, Philippines, Indonesia, India, and others.

We have rich experience for metal forming machine solution, competitive price and excellent service. We will continue to do our best to supply perfect products and service for customers. Invite you to contact us for further information.
