| Prod Model: |
ZYYX |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Certificate: |
CE |
| Machine Size: |
8500*1700*1600mm |
| Machines Weight: |
About 8t |
| Delivery Time: |
About 50days |
| Operation Language: |
English or as Per Client`S Required |
| Rollers Material: |
No.45 Forged Steel with Hard Chrome |
| Cutter Material: |
Cr12 Mould Steel with Quench Treatment |
| Cutting Style: |
Automatic Hydraulic Cut to Length |
| Shafts For Rollers: |
Grand Twice, ID72mm Solid Steel |
| Controlling System: |
Mitsubishi PLC & Converter |
| Forging Forming Method: |
Cold Roll Forming |
Product Description

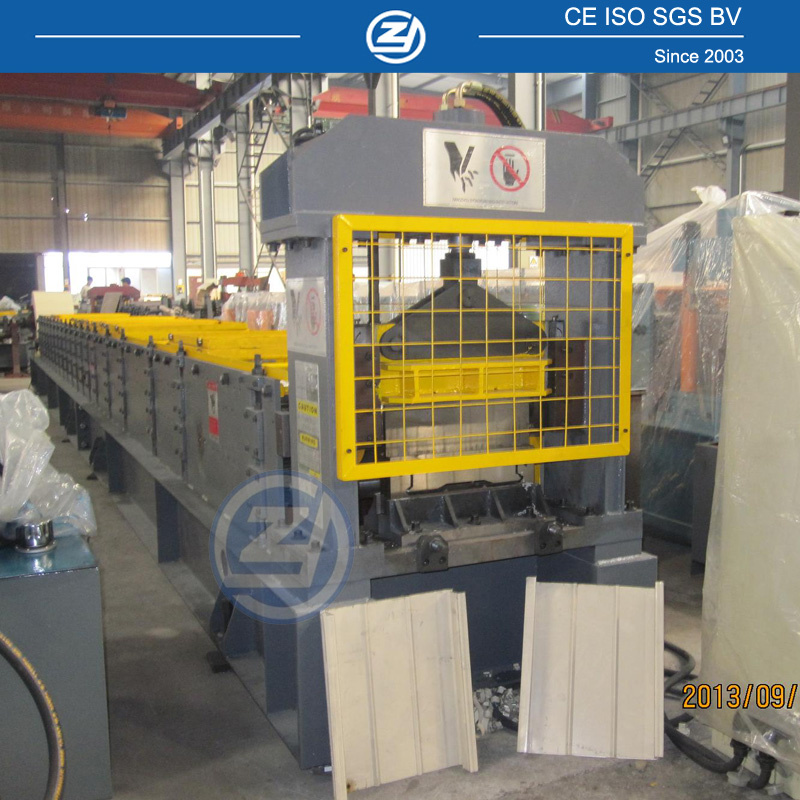

Aluminium Roof Panel Roll Forming Machine
This Aluminium Roof Panel Roll Forming Machine was designed by 15 years experienced R&D members with lifetime seivices
Introduced Mitsubishi PLC with touch screen.
Need only one worker (minimum) to operate
Roller cover with 0.05mm chrome, ensure lifetime>10years
Cr12 mould steel cutter with quenched treatment. Blade with heat treatment.
Product cut-to-length.

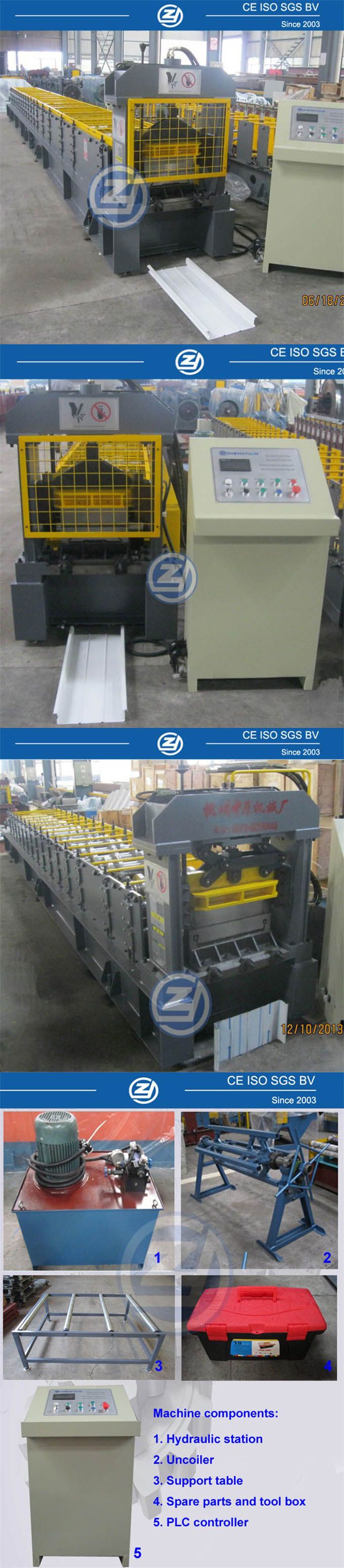

Machine's components: Roll forming machine consists of uncoiler, coil sheet guiding device, main roll forming system, cutting device, Hydraulic station, PLC control system and support table.
Main technical parameters:1. Suitable material: Aluminium sheet
2. Thickness of raw material: 0.4_0.6mm
3. Yield strength of material: 235Mpa-345Mpa
4. Forming speed: About 15-20m/min
5. Power Requirement
Main motor power: 5.5Kw(Depend on final design)
Hydraulic station power: 2.2Kw (Depend on final design)
6. Uncoiler's max. loading Capacity: 5000kgs
7. Controlling system: Mitsubishi PLC & converter
8. Machine's size: About 8.5m*1.7m*1.6m (Depend on final design)
Machine overview
Parameters| Item | Specification |
| Material | Type | Color steel sheet |
| Thickness(mm) | 0. 5 -0. 6 |
| Yield strength(mpa) | 235 -345 |
| Roller material | 45#Chrome steel |
| Forming speed(m/min) | About 1500-2000mm |
| Step distance | Adjustable according to requirement (>=250mm) |
| Speed adjusting mode | AC Frequency |
| Roller drive | Decelerating motor + Chain drive |
| Cutting mode | Hydraulic cutting |
| Cutter material | Cr12 mold steel |
| Length measurement | Encoder |
| Control mode | Mitsubishi PLC |
| Operating mode | Button + Mitsubishi Touch screen |
| Main motor power(kw) | 5.5KW (Depend on final design) |
| Hydraulic station power | 2.2K W (Depend on final design) |
| Total power(kw) | 7.7KW |
| Uncoiler's loading capacity | Max. Capacity: 5000kgs
(can be increased to be 10T) |
| Machine`s size | About 8.5*1.7*1.6m (Depend on final design) |
| Machine weight | About 10000kgs |
Components of machine: |
|
| Decoiler | 1set |
| Feeding & guiding device | 1set |
| Main roll forming machine | 1set |
| Hydraulic cutting system | 1set |
| Controlling system | 1set |
| Run out table | 1set |
Process flow:
Decoiler -- Feeding & Guiding -- Roll Forming-- Hydraulic Cutting – Product to Run Out Table |
Why us?
1. Customize machines since 2003.
2. CE, ISO certificate by SGS.
3. Mitsubishi PLC controller and transducer from Japan
4. 12moths warranty, lifetime technical support
5. Capacity: 12-15 sets/month
6. Delivery: in only 5-8 weeks for urgent order
7. Company occupies 6650, in which 5650 for workshops
8. Have our own tool center. 12 sets CNC machines.
About us
We are professional in making roll forming machines since 2003.
1. Capacity: 12-15 sets/month
2. Delivery: in only 5-8 weeks for urgent order
3. Have our own tool center. 12 sets CNC machines.
4. Zhongyuan is a "All-in-house source"
--from raw material to the final high-precision forming machine. We have our precise tooling center.
5. You can rely on our team!
We have engineers with experience more than 15 years in metal forming industry.
Get Free:
Provide profile drawing & design technical support FOR FREE!
FAQ:
1) Q: Are you manufacturer or trading company?
A: We are manufacturer and trading company .
2) Q: Do you provide installing and training overseas?
A: Overseas machine install and worker training services are optional.
3) Q: How is your after sales support?
A: We provide technical support on line as well as overseas services by skillful technicians.
4) Q: How does your factory do regarding quality control?
A: There is no tolerance regarding quality control. Quality control complies with ISO9001. Every machine has to past testing running before it's packed for shipment.
5) How can I trust you that machines pasted testing running before shipping?
A: 1) We record the testing video for your reference. Or,
2) We welcome your visit us and test machine by yourself in our factory.
6) Q: Do you sell only standard machines?
A: No. Most machines are made to order.
7) Q: Will you deliver the right goods as ordered? How can I trust you?
A: Yes, we will. We are Gold supplier of Made-in-China with SGS assessment (Audit report can be provided).
