| Prod Model: |
YX65-400-425 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Cold Roll Forming Machine: |
Roofing Forming Machine |
| Dimension: |
5800mm*1600*1600 |
| Weight: |
7000kgs |
| Forming Steps: |
13 |
| Height Of Roofing: |
65mm |
| Effective Width: |
300mm,400mm,50mm |
| Material Width: |
470mm,575mm,680mm |
| Material Thickness: |
0.4-1.0mm |
| Motor Power: |
7.5kw*2 |
| Hydraulic Power: |
2.2kw |
Product Description

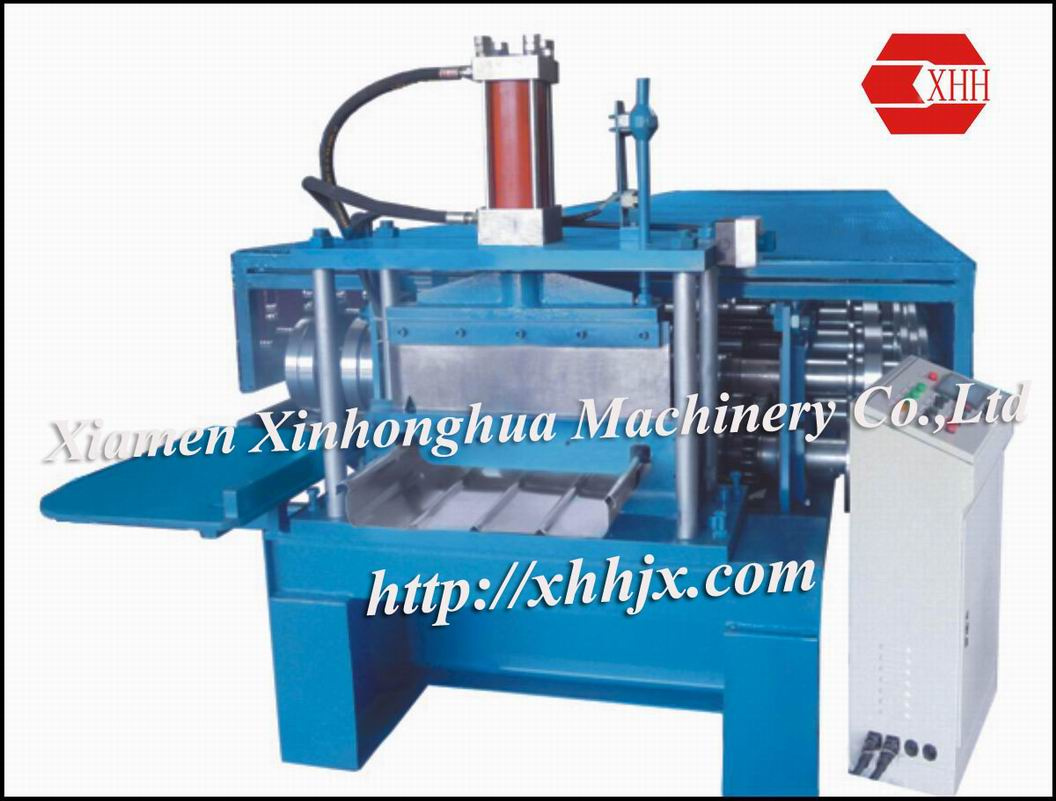

YX65-400-425 Aluminum Roofing Roll Forming Machine, Roofing Forming Machine and Rolling Machine:
Main Accessories:
(1) Main Standing Seam Roof Panel Machine;
(2) 5 Tons Manual Decoiler;
(3) Hydraulic System;
(4) PLC Computer Controlling System with touch screen;
(5) Device for making taper standing seam roofing;
(6) Hydraulic Forming Cutter;
(7) Run out table;
(8)Manual Seamer;
(9) Tools;
Main Technic Data:
Size: 5800*1600*1400mm;
Weight: 7000GS;
Motor Power: 7.5KW* 2 sets;
Hydraulic Power: 2.2KW;
Voltage: 380V/50Hz;
Forming Steps: 13;
Forming Speed; 8-14m/min;
Effective Width: 400mm, 425mm;
Material Width: 575mm, 600mm;
Thickness for Aluminum: 0.6-1.0mm;
Thickness for Steel: 0.5-0.8mm;
Material for All Roller: High grade no. 45 forged steel, plated hard chrome on the surface of rollers
Material: Normal Aluminum, galvanized sheet and colored prepainted sheet;
Usage: Can make the tapered-shaped aluminum roofing panels, colored prepainted roofing panels, galvanized sheets.
|
1. |
Size |
5800*1600*1400mm |
|
2. |
Weight |
7000KGS |
|
3. |
Motor Power |
7.5KW*2 sets |
|
4. |
Hydraulic Power |
2.2KW |
|
5. |
Voltage |
380 V/60HZ/3PH |
|
6. |
Forming Steps |
13 |
|
7. |
Forming Speed |
8-14m/min |
|
8. |
Effective Width |
300mm,400mm,500mm |
|
9. |
Material Width |
470mm,575mm,680mm |
|
10. |
Material of AL-Mg-Mn,Galvanized Sheet Thickness |
0.4-1.0mm |
|
11. |
Material of Colored Prepainted Sheet Thickness |
0.5-0.8mm |
|
12. |
Material for All Roller |
high grade no.45 forged steel,plated hard chrome and polished the rollers |
Established in 2004, Xiamen Xinhonghua Machinery Co., Ltd which is load in nice island city of Xiamen is specialized in manufacturing roll forming machines with hydraulic systems and PLC computer controlling systems. Our company has advanced technologies and great experience in the R&D, manufacture, installation, testing and training.
Our company can supply a wide range of Al-Mg-Mn panel forming machines, standing seam roofing machines, C/Z shaped Auto full adjustment purline machines, tapered-shaped standing seam roofing machines, colored roof panel machines, glazed tile machines, shaft forming machines, rolling door machines, flattening machine with slitting and cutting device, floor decking machines, highway guardrail machines, auto adjustment curving machine and hydraulic bending machines.
We enjoy a good reputation with the enterprise spirit of "Innovation chases the development; Management earns benefit". We insist on the service philosophy of "Satisfying our customers' needs".
Our products sell well at home, and are exported to clients in the Philippines, Indonesia, India, Malaysia, Ameria, Dubai, Singapore, Brazil, Turkey, Canada, Africa, Tailand, Columbia, the Middle East and other countries and regions.
