Roll Forming Machine for Standing Seam Roofing (YX65-400-425)

Roll Forming Machine for Standing Seam Roofing (YX65-400-425)
Price: US $ 48000-52000/Set
Trade Terms: FOB,CIF
Min Order: 1/Set
Pay Type: L/C,T/T,Western Union
Prod Model: YX65-400-425
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Dimension: 5800*1600*1400
Weight: 7000kgs
Forming Steps: 13
Motor Power: 5.5kw*2
Hydraulic Power: 2.2kw
Effective Width: 300mm,400mm,500mm
Material Width: 470mm,575mm,680mm
Thickness: 0.4-1.0mm
Working Speed: 8-14m/Min
Voltage: 380V50Hz/3pH

Product Description

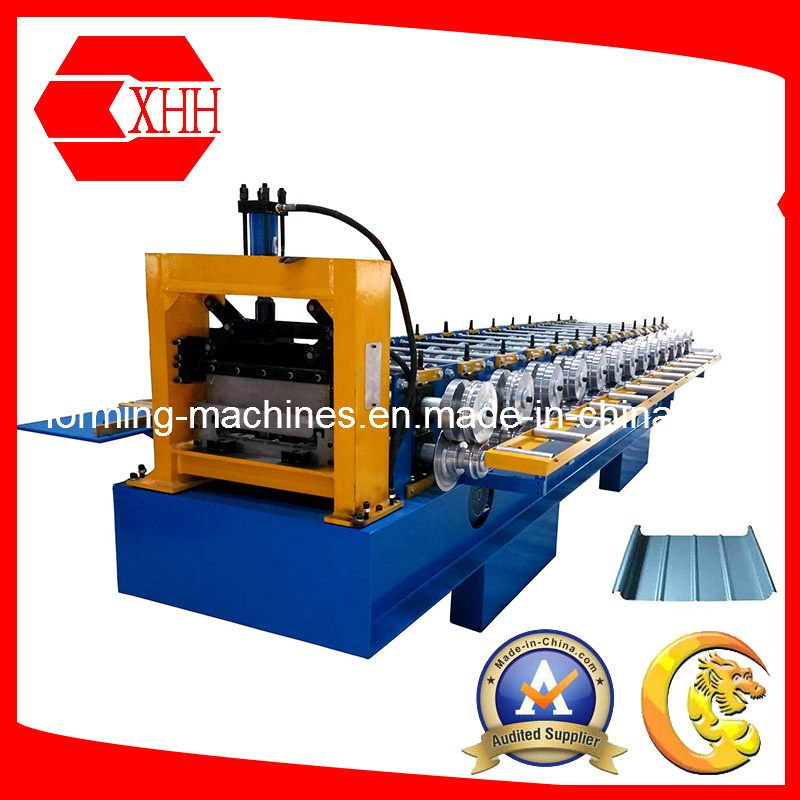

Roll Forming Machine For Standing Seam Roofing (YX65-400-425)
YX65-400-425 Aluminum Roofing Sheet Roll Forming Machine, Sheet Forming Machine and Rolling Machine:


Main Accessories:

(1) Main Standing Seam Roof Panel Machine;

(2) 5 Tons Manual Decoiler;

(3) Hydraulic System;

(4) PLC Computer Controlling System with touch screen;

(5) Device for making taper standing seam roofing;

(6)Hydraulic Forming Cutter;

(7) Run out table;

(8)Manual Seamer;

(9) Tools;

Main Usage:

1.  One machine can produce the straight standing seam roofing 300mm,400mm,500mm, and tapered standing seam roofings

2. Can automatically product variable width of roofing from 300mm to 500mm;

3.Widely use in the large project such as:railway station,airport , gymnasium etc.

4.Can product trapezoid roofing and straight roofing.

Feature: Can be packed and worked in one 20'GP or  40'GP shipping container, and , so can it saves much time, room and cost. Also can design and make the machine according to your demand.

The Project for curving machine:

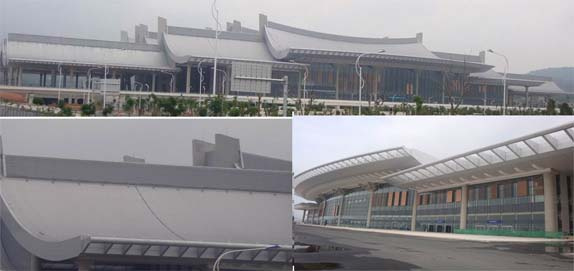

JINGZHOU CONVENTION CENTER :

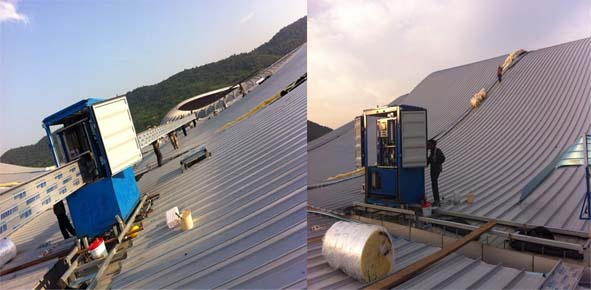

XIAMEN HIGH SPEED RAIWAY STATION:

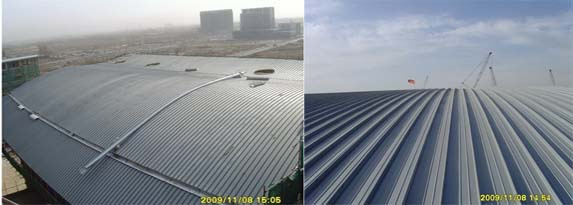

BAOTOU INTERNATIONAL CONVENTION CENTER





 Main Technic Data:

 1.Dimension5800*1600*1400mm
 2.Weight7000KGS
 3.Motor Power5.5KW*2 sets
 4.Hydraulic Power2.2KW
 5.Voltage380V/50HZ/3PH
 6.Forming Steps13
 7.Forming Speed8-14m/min
 8.Effective Width300mm,400mm,500mm
 9.Material of Width470mm,575mm,680mm
 10.Material of AL-Mg-Mn,Galvanized Sheet Thickness0.4-1.0mm
 11.Material of Colored Prepainted Sheet Thickness0.5-0.8mm
 12.Material for All Rollerhigh grade no.45 forged steel,plated hard chrome and polished the rollers
Established in 2004, Xiamen Xinhonghua Machinery Co., Ltd which is load in nice island city of Xiamen is specialized in manufacturing roll forming machines with hydraulic systems and PLC computer controlling systems. Our company has advanced technologies and great experience in the R&D, manufacture, installation, testing and training.

Our company can supply a wide range of Al-Mg-Mn panel forming machines, standing seam roofing machines, C/Z shaped Auto full adjustment purline machines, tapered-shaped standing seam roofing machines, colored roof panel machines, glazed tile machines, shaft forming machines, rolling door machines, flattening machine with slitting and cutting device, floor decking machines, highway guardrail machines, auto adjustment curving machine and hydraulic bending machines.

We enjoy a good reputation with the enterprise spirit of "Innovation chases the development; Management earns benefit". We insist on the service philosophy of "Satisfying our customers' needs".

Our products sell well at home, and are exported to clients in the Philippines, Indonesia, India, Malaysia, Ameria, Dubai, Singapore, Brazil, Turkey, Canada, Africa, Tailand, Columbia, the Middle East and other countries and regions.
