| Prod Model: |
FY-0761 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Size: |
Depend on The Design of Drawings |
| Materia: |
Stainless Steel |
| Material: |
Carbon Steel |
Product Description
Quick Details
Place of Origin: Jiangsu China (Mainland)
Brand Name: GD Model Number: FY-0761
Application: Various
Material: Steel
Dimensions: Customized
Packaging & Delivery
Packaging Detail: Sea worthy packing like wooden case, iron pallet or as customer's order.
Delivery Detail: 20-60 days
Specifications- Products with Customers' Designs
- Strong Machining & Heat Treatment Abilities
- Strict Quality Control
- Prompt Deliver
Description:

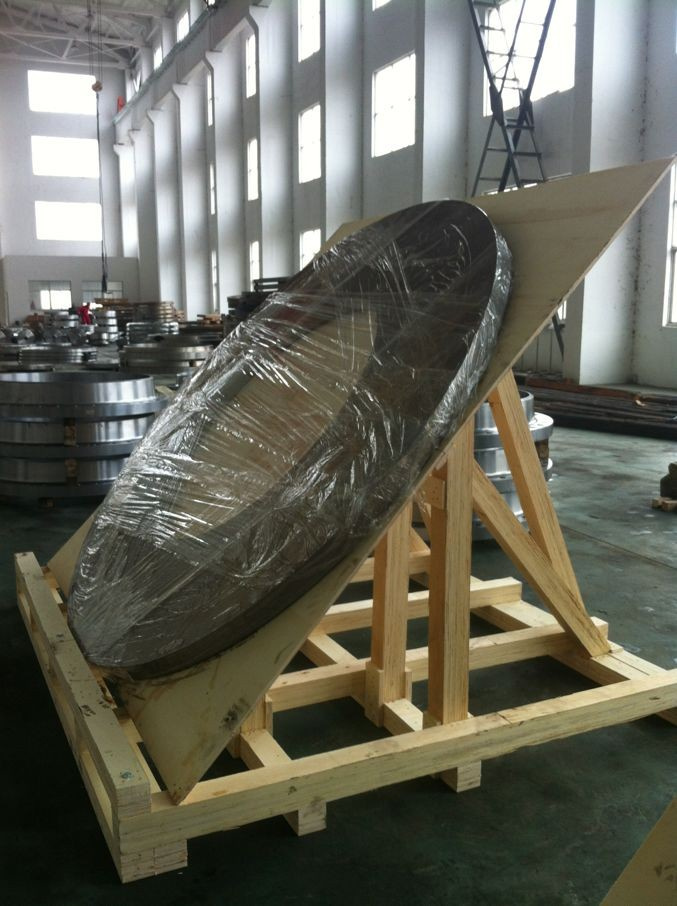

1. Product Name: Forged ring
2. Raw Material: Carbon steel, alloy steel, stainless steel
Wind Turbine
42CrMo4V, 34CrNiMo6
Marine Forging
C-Mn steel
Gear shaft
17CrNiMo6; 18CrNiMo7-6; 20CrNi2Mo; 42CrMo; 47CrNiMo6; 20CrMnMo; 8822H
Forged shaft
42CrMo4, 50Mn, C45, AISI4130; AISI4330; AISI4150; AISI4350; AISI4340; 410SS and so on
Vavle forging
SA105, SA350LF2, LF6, F304, F316, 304L, 316L, F51, F53, F321, etc
Forged ring
42CrMo4, P289GH, S355G2, 1.4923, 1.4301F316, F304, F51, F53, F55
Pressure Vessel forging
SA105, SA350 LF2, 16Mn, S355J2, 20MnMo, 15MnMo, 12Cr2Mo1, 14Cr1Mo, 42CrMo, AISI 4130, AISI4330,
SA266, SA182, SUS304, SA336 and so on
* As we manufacture customized products, other materials are also appreciated.
3. Type: Normal type and low temperature type;
4. Specification:
As drawing.
* The products could be manufactured according to your request.
5. Standard: ASTM, ASME, DIN, AISI, JIS and EN;
|
Shape |
Diameter(m) |
Length(m) |
|
Shaft |
≤2.5 |
≤15 |
|
Block |
≤4.0 |
/ |
|
Ring |
≤4.9 |
≤3.5 |
|
Cylinder |
≤1.5 |
≤8.0 |
We sincerely hope establishing long and friendly business relations with clients from all over the world. Our goal is not just providing product, but also providing a complete solution including product design, tooling, fabrication and service for our customers to achieve their upmost satisfaction.
Forging weight is from 50 kg to 20 ton. Many kinds of materials, free size.
Smelting Process: EF+LF + VD+VC The process as follow: Ingot → Heat → Forging → Heat treatment (Normalizing+ tempering) → Inspection → Rough machining→ UT → 2th Heat treatment → Finishing machining → Inspection
Applications: The heavy forging: Forged ring, shaft, roller, flange, or gear is widely used for various industries For example: Metallurgy, mining, power station and so on.
Specifications:
Description
The heavy forging: Forged ring, shaft, roller, flange, or gear
Material
Alloy steel or stainless steel
Material standard
ASTM or GB/T3077-1999
Specification
As per specified requirements
Weight
Max. 250 ton
Smelting Process:
EF+LF + VD+VC
Process
Ingot→ Heat → Forging → Heat treatment (Normalizing+ tempering) → Inspection
→ Rough machining→ UT → 2ND Heat treatment → Finishing machining → Inspection
UT standard
EN10228, ASTM A388 or JB/T 5000.15-1998
Competitive Advantage:
The heavy forging is manufactured by large scale stated enterprise. Advanced technical process from smelting steel to forging and heat treat guarantees the product quality. Closed relationship with several famous stated enterprises guarantee "in-time delivery" and competitive price.
Excellent product quality and service, competitive price, "in-time" delivery
