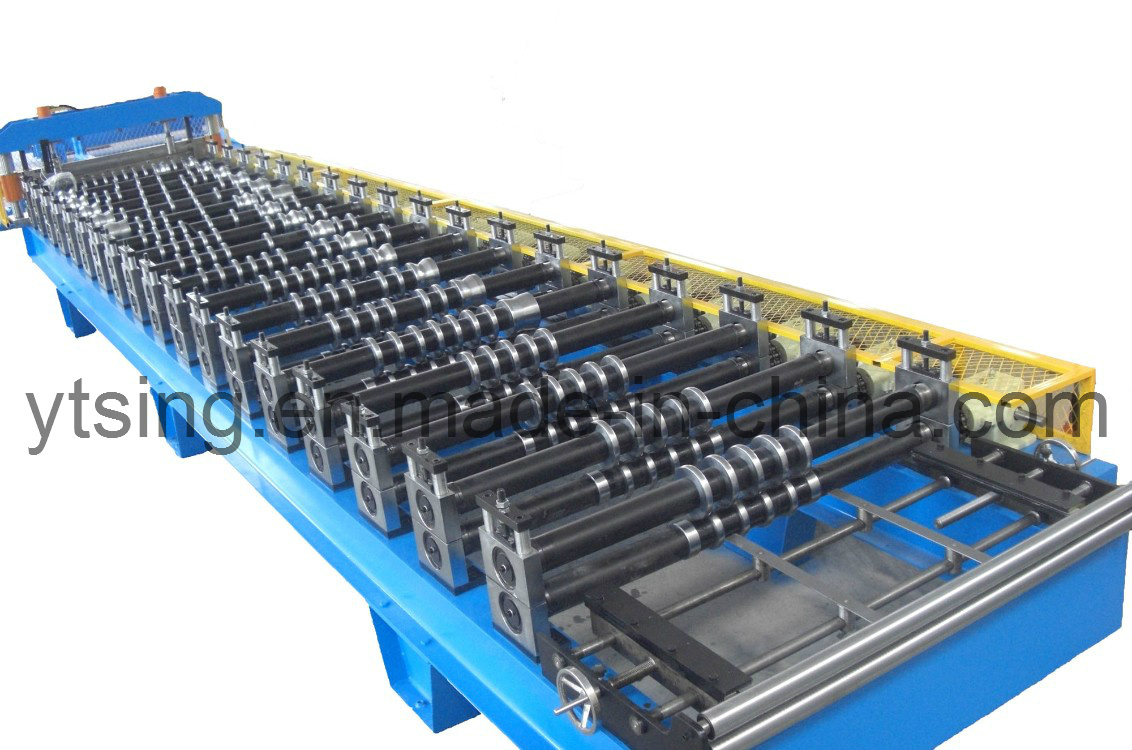

Automatic Corrugated Roll Forming Machine (YD-0022)

Automatic Corrugated Roll Forming Machine (YD-0022)
Price: Negotiableset
Trade Terms: FOB
Min Order: 1set
Pay Type: L/C,T/T,D/P
Prod Model: YD-0022
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Height: About 1.2m
Color: Blue

Product Description

Features:
1. The corrugated tile roll forming machine can produce corrugated sheets with any kind of thickness.
2. There are different kinds of machine structures such as torri stands, thick walls and cast iron.
3. The speed of the corrugated tile roll forming machine can be reached at 40m/min. The nomal speed is 16-20m/min.
4. The material thickness can be formed at 0.2mm thin and 4.0-5.0mm thick, according to your requirement.

Application: The products of the corrugated tile roll forming machine are used as roofing and wall sheets for factories, warehouses, garages, exhibition centers, cinemas, gardens, etc.

Configurations: The corrugated tile roll forming machine consists of a passive or hydraulic single or double head uncoiler, roll forming machine unit, hydraulic automatic cutting unit, PLC automatic control cabinet and product run table.

Packaging: The corrugated tile roll forming machine is wrapped and covered with film making the package seaworthy. The legs of the machine are fixed with angle steel and heavy screws.

1. PLC computer control
2. No noise, no shake, easy operation
3. Hydraulic system
4. Passed CE certification
5. Passed AAA certification
6. Passed ISO9001 certification
7. Quick changing machine, quick lime machine

We can also design many kinds of roll forming machines according to your specific profile drawing.
Wuxi Yuanding Science & Technology Co., Ltd.
Contact person: Becky
Tel: +86-024-8623-4279
Mobile: +86-186-4290-6462
Contact me to get more information
Welcome to contact and visit us, waiting for your cooperation sincerely.
No. of Work Station 18 Sets
Thickness of Coil 0.3-0.8mm
Max. Roll shafts Dia 76mm
Required Motor Capacity 5.5K.W
Roller material 4140 Nitrided
Coil width 914-1219mm
Transducer Panasonic
Transmission 1.2" Chain Driving
Cages use the strong steel nets
Levelling screws on base  with Thick metal paltes
Max. Line Speed 20mtr./min(Not include shear)
Productivity C stud as the Drawing
Man Power Required One Operator with One Assinstant
Set Up time 15 mins
Working Hours per Day 8 to 16
Line Direction Left to Right While Facing Operator Panel
Overall Machine Length Required 11.0M
Approximate Machine Height 1.6M
Complete Line Consist Of
Passive/Hydraulic Single/Double Uncoiler
Infeeding Applicator
Roll Forming Machine
Hydraulic Stop to Cut
Output Table

Wuxi Yuanding Science and Technology Co., Ltd. is located in national health city, ecosystem cityscience and technology advanced city and unique inland river harbor type wuxi city who protects the tax area, the south side economy development in pond city area. It produce YX series roll forming machine for roof and wall panels, colored steel tile forming machine, YX series guard rall forming machine, C&Z shaped purline forming machines and metal deck forming machine. These use new generation shaping machine, applies advanced microcomputer and PLC technology as well as intelligent touch screen operation and control system. These function largely improved working efficiency and the integrated performance. Welcome to our company.
