| Prod Model: |
YD-510017 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Height: |
About 1.5m |
| Forging Forming Method: |
Cold Roll Forming |
Product Description

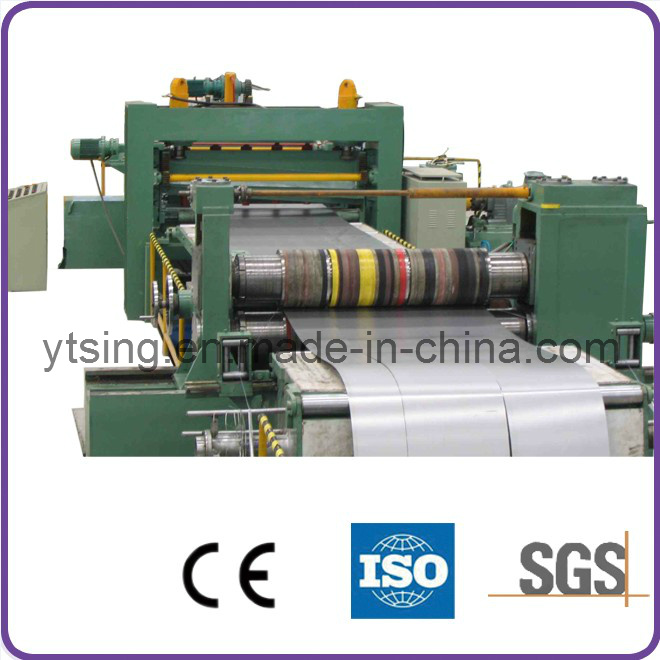

The slitting line can be do uncoiling, slitting and recoiling work and make coil steel to any required
Width. The slitting line is used in coil, hot rolling carbon steel, silicon steel and all the other types of metal
Material with surface spreading. To meet customer demands, the slitting line can be adjusted to slit any
Width. PLC control system, it has the function of adjusting the speed and retaining memory if it loses its
Power supply with PLC control system.
1. PLC computer control
2. No noise, no shake, easy operation
3. Hydraulic system
4. Passed CE certification
5. Passed AAA certification
6. Passed ISO9001 certification
7. Quick changing machine, quick lime machine
Wuxi Yuanding Science & Technology Co., Ltd.
Contact person: Becky
Tel: +86-024-8623-4279
Mobile: +86-186-4290-6462
Contact me to get more information
Welcome to contact and visit us, waiting for your cooperation sincerely.
|
Specification |
|
|
Model |
YD-1-6-1600L |
|
Coil thickness |
0.2mm-6mm-22mm |
|
Slitting speed |
Max.120m/min |
|
Loading capacity of the uncoiler |
Max 6-35T |
|
Range of coil length |
460-560mm |
|
Material of slitting blade |
9CrSi |
|
Precision |
+/-0.05mm |
|
Main shaft diameter |
240-400mm |
|
Suitable material |
Hot/cold-rolled/carbon steel/stainless |
|
Machine Configuration |
|
Coil Cart |
|
Hydraulic Decoiler |
|
Loop System |
|
Head-Guiding & Head Shovel |
|
Deviation Rectifying |
|
Slitting |
|
Side Waste Recoiler |
|
Leveling Unit |
|
Pre-Separator & Tensioning Measuring Machine |
|
Recoilder |
|
Unloading Coil Cart |
|
Hydraulic Station |
|
Electrical Controller |
