| Prod Model: |
YD-0117 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Height: |
About 1.5m |
Product Description
Features:

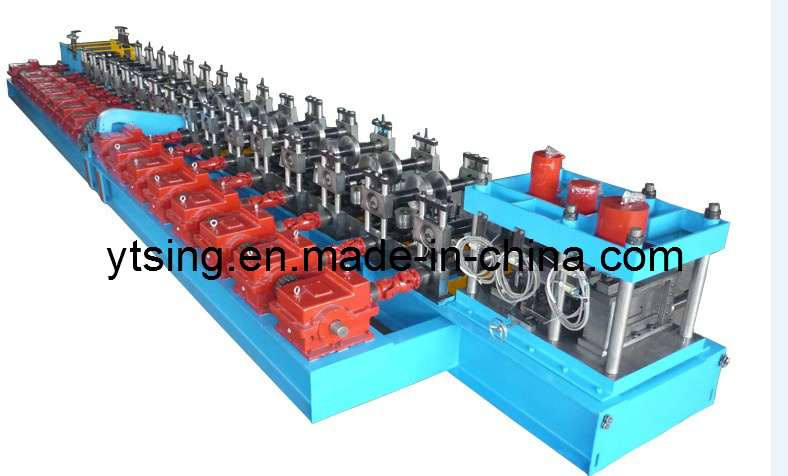

1. The guard rail roll forming machine can be designed as two or three wave profiles in one machine, you just need to add some stations at the end of the machine.
2. The guard rail roll forming machine can use the universal joint driving system.
3. The max thickness of the guard rail can be reached at 4.5 mm.
4. Similar roll forming line for the attached drawings of highway guard rails.
5. Independent stands, u-joint transmission, 2 or 3 wave model change by manually changing the rolls and spacers of the guard rail roll forming machine.
Options as below:
A. Changing rollers of the guard rail roll forming machine for 2 wave guardrails to add another: 1 set rollers, 13 stations, sets of punching units, and shearing blades.
B. Changing rollers for Sigma shape to add another: 1sets of rollers, 15 stations, sets of punching units, and shearing blades. A new quotation for a roll forming line that can produce the three types of my inquiries(2 wave, 3 wave, and Sigma shape ) with cassette system. (Independent stands, u-joint transmission)
C. Changing the roller groups of the guard rail roll forming machine by cassette system for 2 wave guardrails and Sigma shape to add another: 3 stations for 2 wave guardrails, 15 stations for Sigma shape, shearing blades for 2 wave guardrails, shearing blades for Sigma shape, punching units for 2 wave guardrails, punching unit for Sigma shape.
Application: The products of the guard rail roll forming machine are used as guardrails for the both sides of the highway.
Configurations: The guard rail roll forming machine consists of a passive or hydraulic single or double head uncoiler, roll forming machine unit, hydraulic automatic cutting unit, PLC automatic control cabinet and product run out table or auto-stacher.
Packaging: The guard rail roll forming machine is wrapped and covered with film making the package seaworthy. The legs of the machine are fixed with angle steel and heavy screws.
Complete Line Consist Of
Passive uncoiler
Feeding & Leveling applicator
Hydraulic punching holes
Roll forming machine unit
Hydraulic shear
Output table
1. PLC computer control
2. No noise, no shake, easy operation
3. Hydraulic system
4. Passed CE certification
5. Passed AAA certification
6. Passed ISO9001 certification
7. Quick changing machine, quick lime machine
We can also design many kinds of roll forming machines according to your specific profile drawing.
Wuxi Yuanding Science & Technology Co., Ltd.
Contact person: Becky
Tel: +86-024-8623-4279
Mobile: +86-186-4290-6462
Contact me to get more information
Welcome to contact and visit us, waiting for your cooperation sincerely.
|
Roll Station |
19stations |
|
Working Speed |
15-20m/min |
|
Dimension |
13.5m*2.7m*1.6m |
|
Main Motor |
22-56Kw |
|
Decoiler Material |
#45 Steel Material |
|
Roll Forming Material |
#45 Steel base/40CR Steel HRC 48-52Roller |
|
Cutting Material |
Cr12 Quenched 58-62 |
|
Punching Material |
Cr12 Quenched 58-62 or Cr15 Bearing Steel |
|
PLC |
PLC Panasonic-Touch screen Made in Taiwan-Transducer Yaskawa-Encoder Omron |
|
Bearing |
National Brand |
Wuxi Yuanding Science and Technology Co., Ltd. is located in national health city, ecosystem cityscience and technology advanced city and unique inland river harbor type wuxi city who protects the tax area, the south side economy development in pond city area. It produce YX series roll forming machine for roof and wall panels, colored steel tile forming machine, YX series guard rall forming machine, C&Z shaped purline forming machines and metal deck forming machine. These use new generation shaping machine, applies advanced microcomputer and PLC technology as well as intelligent touch screen operation and control system. These function largely improved working efficiency and the integrated performance. Welcome to our company.
