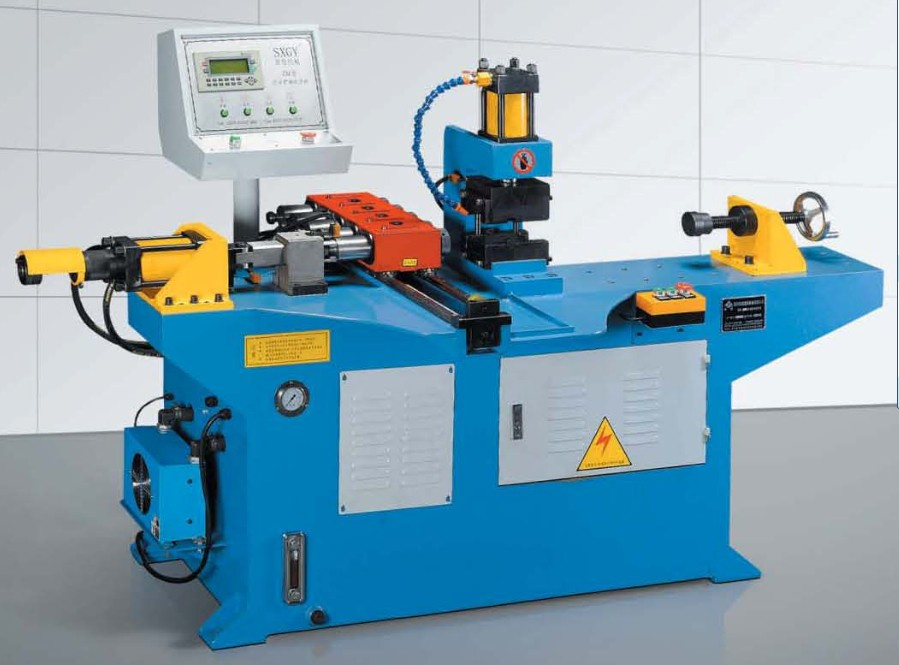

Automatic Pipe End Forming Machine TM-38A5
| Price: |
US $ 9000-11500set |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
1set |
| Pay Type: |
T/T |
| Prod Model: |
TM-38A5 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Size: |
2000*550*1300mm |
| Forging Forming Method: |
Mold Forging |
Product Description

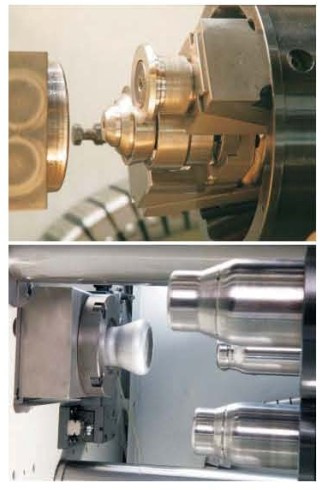

Functional characteristics1. Integral clamping machine head, reinforced type molding;2. Round clamping die, taking convenience for assembling and disassembling;3. Air cooler, ensuring normal oil temperature;4. Digital automatic lubricating machine, guaranteeing the service life of guide rail;5. Processing and molding of pipe end diameter reduction, diameter expansion, heading and tendon, etc. is available.| Spec./Model | TM-15A3 | TM-38 | TM-60 | TM-80 |
| Max applicable pipe fitting | Expand and shrinkage415×1.0mm
Tendon 10×1.0mm | Expand and shrinkage 38×2.0mm
Tendon 25×1.0mm | Expand and shrinkage 60×2.0mm
Tendon 40×1.5mm | Expand and shrinkage 80×2.0mm
Tendon60×2.0mm |
| Working stroke | 50mm | 100mm | 120mm | 160mm |
| Output oil pressure | 6 Toms | 8 Toms | 14 Toms | 32 Toms |
| Working speed | 100mm in1~2sec | 100mm in3~4sec | 100mm in3~4sec | 80mm in3~4sec |
| Machine size | 1240×1160×1410mm | 2000×550×1300mm | 2800×600×1400mm | 2800×630×1400mm |
| Machine weight | 850kg | 1100kg | 1250kg | 1700kg |
| Motor power | 3kw | 4kw | 5.5kw | 7.5kw |
Zhejiang shunxin machinery Co., Ltd was established in 1989 which is located in the foot of the beautiful YanDang mountain of Yueqing city of Zhejiang province. It is near the express way, it has convenient transportation. The comanpy is specialized in all kinds of machines, such as pipe bending machine, pipe cutting machine, pipe end forming machine, pipe shrinking machine, chamfering machine, automatic riveter, hydrauic lathe, stripping machine. Tooth sharpening machine, saw blade sharpening machine.
Our company supply special equipment for Shanghai Volkswagen, Dongfeng, Chang'an, Changhe, Liuzhou Wuling domestic famous companies. And it has a Long history, superb technology, a full range of design, as well as we are cooperated with company domestic and overseas closely, all these are make our products received a consistent recognition and praise by our users.

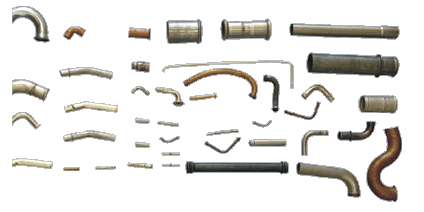

The products are widely used in automobiles, motorcycles, bicycles, baby carriage, ships, steel furniture, sporting goods, leisure goods, air-conditioning piping, petrochemical, sanitary pipe industry. It is the ideal equipment for various pipe profile cutting, shaping, riveting process.
