Size:
1240*1160*1410mm
Forging Forming Method:
Mold Forging
Product Description

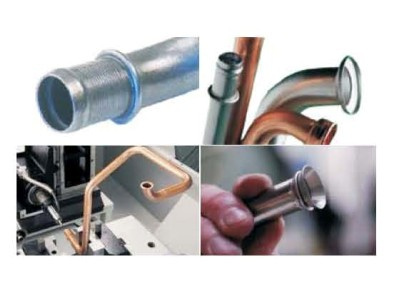

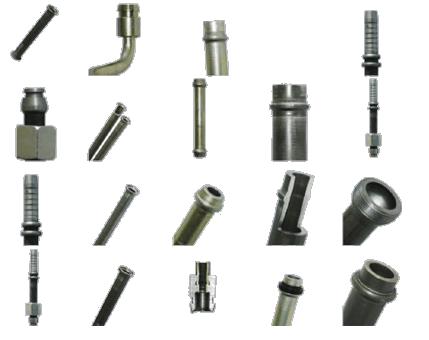

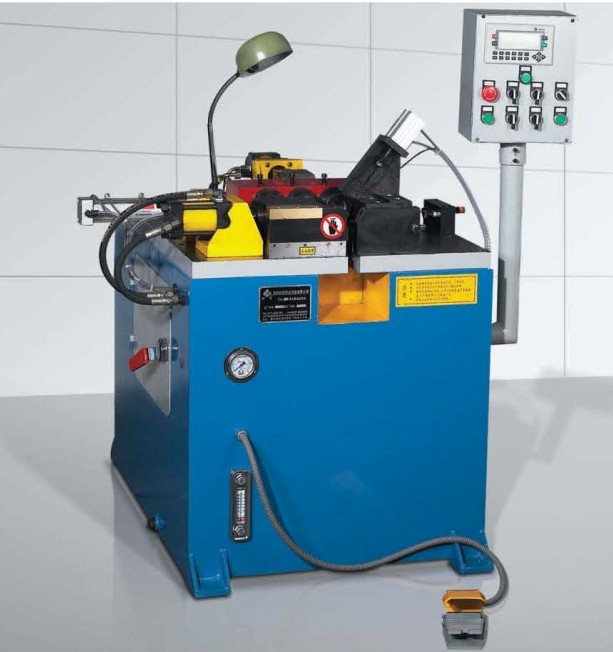

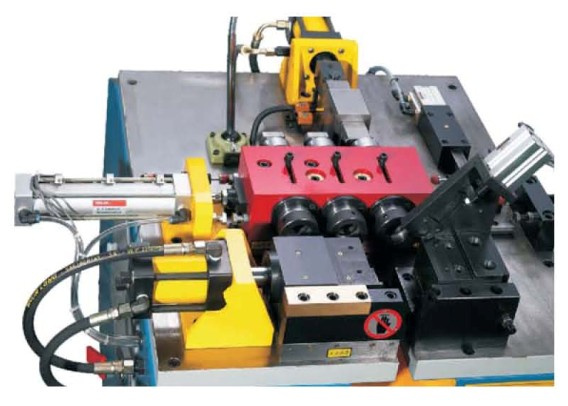

Characteristics 1. Adoption of PLC control, LCD display. 2. Adoption of straight line guide rail for transposition, with high efficiency. 3. Front positioning, accurate pipe clamping center. 4. Shrinkable pipe, flare opening, heading, tendon, etc. 5. It is applicable to the brake hose, air conditioning tubing, etc.
Spec./Model
TM-15A3
TM-38
TM-60
TM-80
Max applicable pipe fitting
Expand and shrinkage415×1.0mm Tendon 10×1.0mm
Expand and shrinkage 38×2.0mm Tendon 25×1.0mm
Expand and shrinkage 60×2.0mm Tendon 40×1.5mm
Expand and shrinkage 80×2.0mm Tendon60×2.0mm
Working stroke
50mm
100mm
120mm
160mm
Output oil pressure
6 Toms
8 Toms
14 Toms
32 Toms
Working speed
100mm in1~2sec
100mm in3~4sec
100mm in3~4sec
80mm in3~4sec
Machine size
1240×1160×1410mm
2000×550×1300mm
2800×600×1400mm
2800×630×1400mm
Machine weight
850kg
1100kg
1250kg
1700kg
Motor power
3kw
4kw
5.5kw
7.5kw
Zhejiang shunxin machinery Co., Ltd was established in 1989 which is located in the foot of the beautiful YanDang mountain of Yueqing city of Zhejiang province. It is near the express way, it has convenient transportation. The comanpy is specialized in all kinds of machines, such as pipe bending machine, pipe cutting machine, pipe end forming machine, pipe shrinking machine, chamfering machine, automatic riveter, hydrauic lathe, stripping machine. Tooth sharpening machine, saw blade sharpening machine.
Our company supply special equipment for Shanghai Volkswagen, Dongfeng, Chang'an, Changhe, Liuzhou Wuling domestic famous companies. And it has a Long history, superb technology, a full range of design, as well as we are cooperated with company domestic and overseas closely, all these are make our products received a consistent recognition and praise by our users.
The products are widely used in automobiles, motorcycles, bicycles, baby carriage, ships, steel furniture, sporting goods, leisure goods, air-conditioning piping, petrochemical, sanitary pipe industry. It is the ideal equipment for various pipe profile cutting, shaping, riveting process.
We would like to cooperate with the buyers all over the world in the future.
