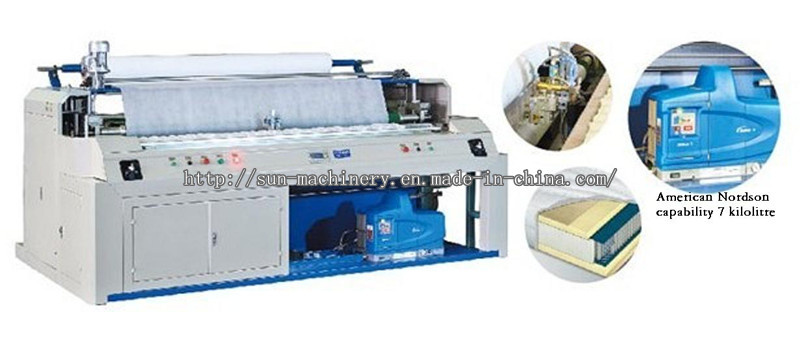

Automatic Pocket Spring Assembly Machine (CSUN-150U)
| Price: |
Negotiable/Piece |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
1/Set |
| Pay Type: |
L/C,T/T,Western Union |
| Prod Model: |
CSUN-150U |
| Markets: |
North America,South America,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| American Nordson Glue System: |
Stick Middle, Top & Bottom Together |
Product Description
Description:
This machine using independent pocket spring automatic jetting glue and assembling into innerspring. The automatic pocket spring assembling machine has adopted imported PLC control system, improving the automatic level as well as the operation stability. International brand automatic and digital control hot-melt glue facility has been introduced. Bonding drum or cylindrical pocket spring can be assembled to the shape of straight row or cellular. When intermittent spray, more than 40% glue can be saved. It can choose agglutinate up or down of non-woven fabrics, and can achieve remote control, be convenient for monitoring, maintaining, amending and upgrading or programs.
|
Model |
CSUN-150U with USA Nordson Glue System |
|
Produce speed |
150pcs/min.(continuous spraying),120pcs/min(intermittent spraying) |
|
Glue to match bed net width |
≤2100mm |
|
Spring waistline |
45-75mm |
|
Non-woven fabric width |
2200mm |
|
Non-woven fabric thickness |
60-100g/m2 |
|
Use tolerance |
0.8mpa |
|
Overall dimensions(W*L*H) |
2970W*3050L*1720H |
|
Line up tolerance |
0.1m3/min |
|
Motor power |
8.5kw |
|
Power requirement |
380v 3p or 220v 3p |
|
weight |
1800kg |
|
Control system |
1. spray the glue continuously
2. spray the glue dropping and spray up and down to non-woven fabrics,both type can be chosen discretionarily.
3. auto-cut system
4. PLC control and operator's panel. |
|
Working system |
With clinder control |
Csun machinery, accumulating 39 years of professional manufacturing experience, with specialty, design and manufacturer together, mainly committed to high quality machineries manufacturer and development, the machines mainly included wire drawing machines, wire straight and cutting machines, nail making machines, galvanizing machines, copper plating machines, cloth wire hanger making machines, mattress spring machines, quilting machines, sewing machines, packaging machines, foam making machines, foam cutting machines etc. We also supplier and wholesales for all accessory materials for abroad customers, it includes drawing powder, chemical materials for galvanizing production line like the galvanize lucency material, boric acid, zinc sulfate, cold drawing wire, galvanized wire, steel wires for mattress, mattress springs, inner spring units, mattress tapes, mattress tickings, felt, non-woven fabrics, mattress clips, staples, pneumatic tools, ventilated air holes, mattress handles, thread and glue etc, also welcome for samples order.
Our company honor ISO9001 international quality certification and CE certification, mostly machines already apply the special patent. Our market includes MID east, south America, Africa, aisa etc. It sold to Saudi Arabia, Syria, Libya, Russia, Malaysia, Australia, Greece, Iran, Singapore, Philippine, Ukraine, Lebanon etc all over the world.
We are responsible, honest and always-improving attitude, strives to achieve best quality and best service for every abroad customers.
