Automatic Spring Coiling Machine (CSHJ-70)
| Price: |
Negotiable/Piece |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
1/Set |
| Pay Type: |
L/C,T/T,Western Union |
| Prod Model: |
CSHJ-70 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| With Heat Treatment Automatic: |
Touch Screen |
Product Description
Description:

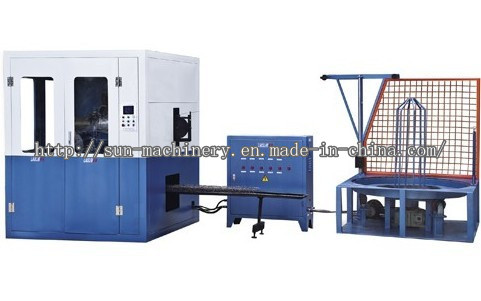

The CSHJ-70 Automatic Spring Coiling Machine is mainly used for produce Bonnell Springs applicable to mattress, furniture and car cushion industries etc. This machine consists of automatic coiling, automatic knotting and automatic heat-treatment and the whole line out-put in a single production cycle. All systems are mechanical and work simultaneously.
It uses one-body design of machine and electricity, stable ability, convenience adjustment and safety operation. This machine with soundproof protection cabin to reduce the noise and the dust pollution. It's with PLC and touch screen to make the speed control system and heating treatment adjustment and automatic lubrication system more conveniently for workers. It can be used well with CSWJ-80 Automatic Spring Assembly Machine for mattress manufacturers.
The production is automatic and needs only one operator. It is high in capacity and low in labor consumption.
When you place the order to us, kindly please tell us your specification of springs as drawing, such as follow, so that we can match the correct size of machine to you!
A. Max Spring's Diameter
B. Spring's Height
C. MID Spring's Diameter
D. Steel Wire's Diameter
E. Coils
|
Spring Type: |
Bonnell |
|
Production capacity: |
70pcs/min |
|
Spring Diameter: |
Φ65-90mm |
|
Spring Wire Diameter: |
Φ1.8-2.5mm |
|
Diameter adjustment: |
±1mm |
|
Spring Height: |
|
|
4 coils |
80-120mm |
|
5 coils |
120-150mm |
|
6 coils |
140-165mm |
|
Voltage: |
380v 3phase 50hz / 220v 3phase 60hz |
|
Max weight of wire roll: |
800kgs |
|
Total machine weight: |
2600kgs |
|
Overall size: |
1700*1600*2000mm |
Csun machinery, accumulating 39 years of professional manufacturing experience, with specialty, design and manufacturer together, mainly committed to high quality machineries manufacturer and development, the machines mainly included wire drawing machines, wire straight and cutting machines, nail making machines, galvanizing machines, copper plating machines, cloth wire hanger making machines, mattress spring machines, quilting machines, sewing machines, packaging machines, foam making machines, foam cutting machines etc. We also supplier and wholesales for all accessory materials for abroad customers, it includes drawing powder, chemical materials for galvanizing production line like the galvanize lucency material, boric acid, zinc sulfate, cold drawing wire, galvanized wire, steel wires for mattress, mattress springs, inner spring units, mattress tapes, mattress tickings, felt, non-woven fabrics, mattress clips, staples, pneumatic tools, ventilated air holes, mattress handles, thread and glue etc, also welcome for samples order.
Our company honor ISO9001 international quality certification and CE certification, mostly machines already apply the special patent. Our market includes MID east, south America, Africa, aisa etc. It sold to Saudi Arabia, Syria, Libya, Russia, Malaysia, Australia, Greece, Iran, Singapore, Philippine, Ukraine, Lebanon etc all over the world.
We are responsible, honest and always-improving attitude, strives to achieve best quality and best service for every abroad customers.
