| Prod Model: |
Y35 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Place Of Origin: |
Anhui, China (Mainland) |
| CNC Or Not: |
CNC |
| Condition: |
New |
| Power Source: |
Hydraulic |
| Brand Name: |
Baide |
| Model Number: |
Y35 Series |
| Color: |
as Your Requirement. |
| Delivery Date: |
30 Days |
| Quality Guarantee: |
1 Year |
| Certification: |
CE |
| Forging Forming Method: |
Mold Forging |
Product Description

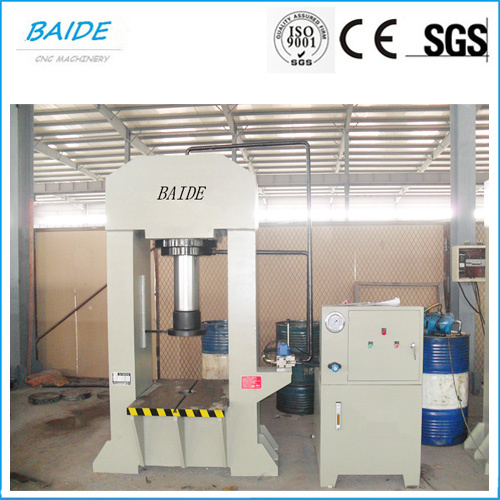

BAIDE high quality hydraulic oil press machine
The Hydraulic Press is suitable for drawing, forming, stamping and flanging process, especially for the following fields:
1. Automobile parts: Vehicle bodywork, brake disc, oil tank, chassis, rear axle and bumper etc;
2. Household electronics: Washing machine parts, electric cooker, TV set parts, refrigerator parts;
3. Kitchen utensils: Kitchen sinks, pots, stainless steel articles and other containers;
4. Other: Tractor, motorcycle, air craft and aerospace industry.
The Hydraulic Press is with much high rigidity and precision, also eccentric, load resistance performance.
Cartridge valve, integrated unit equipped in hydraulic control system, with high reliability, durability. Oil leakage is avoided by means of proper piping and minimum hydraulic impact design.
Electrical system controlled by imported PLC unit, with the features of compact, sensitivity, reliability and flexibility; Reliable actions and easy maintenance are the features of the system based on relay control.
Stroke and pressure can be adjusted within specified scope.
Three operation modes are provided: Adjustment, Two-hand/single circle and Auto continuous (equipped with robot) operations.
Welcome your inquiry of BAIDE high quality hydraulic oil press machine.
|
Type/name |
unit |
pressing machine |
|
Y35-63 |
Y35-100 |
Y35-160 |
Y35-200 |
Y35-315 |
|
Nominal force |
KN |
630 |
1000 |
1600 |
2000 |
3150 |
|
Main cylinder max. stroke |
MM |
500 |
605 |
805 |
800 |
1000 |
|
Pressing head down speed |
MM/S |
24 |
16 |
24 |
22 |
22 |
|
Pressing head return speed |
MM/S |
50 |
50 |
50 |
35 |
44 |
|
Nominal hydraulic working pressure |
MPa |
20 |
25 |
26.5 |
25 |
25 |
|
Motor power |
KW |
7.5 |
7.5 |
15 |
11 |
22 |
|
Max. distance from pressing head to working table surface |
MM |
1400 |
1600 |
1800 |
2400 |
2400 |
|
Working table moving distance |
MM |
|
660 |
710 |
800 |
100 |
|
Working table(L*W) type |
MM |
800*550 |
850*600 |
950*650 |
1000*1000 |
1200*1200 |
|
Distance between columns |
MM |
900 |
1100 |
1150 |
1200 |
1400 |
|
Width of machine body |
MM |
1200 |
1468 |
1550 |
1600 |
1900 |
|
Machine total height |
MM |
2840 |
3510 |
3889 |
4647 |
5400 |
|
Underground depth |
MM |
350 |
350 |
350 |
500 |
600 |
|
Weight(approx.) |
KG |
3000 |
4000 |
5200 |
8000 |
12000 |
Maanshan Baide CNC Machinery Co., Ltd is a professional manufacturer of metal bending machine, metal forming machine and according machine tools. The main machines we manufacture are; 4 column hydraulic press, single column hydraulic press, pneumatic power press, mechanical power press, CNC power press, mechanical shearing machine, hydraulic swing beam shearing machine, hydraulic guillotine shearing machine, CNC shearing machine, hydraulic plate press brake, CNC press brake, 3 roll plate bending machine, 4 roll plate bending machine, combined iron worker machine, hole punching machine, plate leveling machine, profile bending machine, CNC cutting machine, cut to length line, slitting line, duct manufacture machines, etc.
Our company occupy 20000 square meters, the manufacture factory occupy 10000 square meters, annual manufacture value is above 80000000 yuan RMB, in which more than 25000000 yuan RMB are for exporting. Our company have perfect after sale service system, there are total 14 sale and after sale service agencies in different big cities, 26 technicians special for after sale service and machine maintenance. At oversea market, our company is going to establish departments at European and Middle Asia, to enlarge our service area.
All the times we put the machine quality at the first position, focus on the machine development and update, which keep our company have a fast development speed and get good reputation from customers. Our long-term cooperation company include; Foxconn, NK car, China Aluminum Group, Sany Group, Fangyuan Group, Tianrun Crankshaft, Konka, etc. Our company make "satisfy the customers"as our target, hope to create the best future with old and new customers.
