| Prod Model: |
Various |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Input Size: |
25mm and Down |
| Certificate: |
ISO9001-2008 |
| Color: |
on Requst |
| Spare Parts: |
Supply for Whole Life |
| Bearing: |
Roller or Bush Bearing in Choice |
| Warranty: |
1 Year Apart From Wearing Parts |
| Capacity(T/H): |
1-300tons/Hour |
| Output Size: |
0-400mesh(Adjustable) |
| Discharge System: |
Overflow or Grate Type in Choice |
| Mining Object: |
Metallic and Non-Metallic Ore Excavator |
| Type: |
Beneficiation Machinery |
Product Description
Ball mill grinding media
Spiral Concentrator in stock
Centrifugal concentrator in stock
Ball mill in stock
Diaphragm Jig in stock
Features
The machine is composed by feeding part, discharging part, turning part and driving part (reducer, small driving gear, electric motor and electric control). The quill shaft adopts cast steel part and the liner is detachable. The turning gearwheel adopts casting hobbing process and the drum is equipped with wear-resistant liner, which has good wear-resistance. The machine is with stable and reliable working condition.
Moreover, according to different materials and discharging methods, there are dry ball mills and wet ball mills for choice.
Descriptions

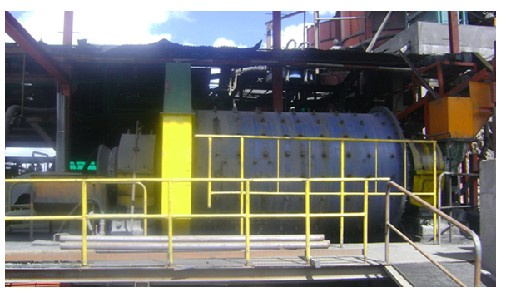

The ball mill is a key equipment to grind the crushed materials, and the ball mill is widely used in powder-making production line including cement, silicate, new-type building material, refractory material, fertilizer, ore dressing of ferrous metal and non-ferrous metal, glass ceramics, etc, and the ball mill can grind various ores and other materials with dry type and wet type. There are two kinds of ball mill, grate type and overfall type due to different ways of discharging material.
The ball mill is a horizontal rotating device transmitted by the outer gear. The materials are transferred to the grinding chamber through the quill shaft uniformly. There are ladder liner and ripple liner and different specifications of steel balls in the chamber. The centrifugal force caused by rotation of barrel brings the steel balls to a certain height and impact and grind the materials. The ground materials are discharged through the discharging board thus the grinding process is finished.
|
Shelrotation speed(r/min) |
Ball load (t) |
Feeding size |
Capacity(t/h) |
Cylinder |
Motor power |
Weight (t) |
|
Diameter(mm) |
Length(mm) |
Motor |
Power(kw) |
|
900*2100 |
36-38 |
1.5 |
≤ 15 |
0.5-1.3 |
900 |
2400 |
Y200L-6 |
18.5 |
4.9 |
|
1200*2400 |
36 |
3 |
≤ 25 |
1.5-4.8 |
1200 |
2400 |
Y225M-6 |
30 |
12 |
|
1200*3000 |
36 |
3.5 |
≤ 25 |
1.6-5 |
1200 |
3000 |
Y250M-6 |
37 |
12.8 |
|
1200*4500 |
32.4 |
5 |
≤ 25 |
1.6-5.8 |
1200 |
4500 |
YR280S-6 |
55 |
13.8 |
|
1500*3000 |
29.7 |
7.5 |
≤ 25 |
2-5 |
1500 |
3000 |
YR280S-6 |
75 |
15.5 |
|
1500*4500 |
27 |
11 |
≤ 25 |
3-6 |
1500 |
4500 |
YR280S-6 |
110 |
21 |
|
1500*5700 |
29 |
12 |
≤ 25 |
3.5-6 |
1500 |
5700 |
YR315S-6 |
130 |
24.5 |
|
1830*3000 |
25.4 |
15 |
≤ 25 |
4-10 |
1830 |
3000 |
YR315S-6 |
130 |
28 |
|
1830*4500 |
25.4 |
15 |
≤ 25 |
4.5-12 |
1830 |
4500 |
YR315S-6 |
155 |
32 |
|
1830*7000 |
24 |
23 |
≤ 25 |
7.5-17 |
1830 |
7000 |
YR355M3-6 |
245 |
36 |
|
2100*3000 |
24 |
15 |
≤ 25 |
7-35 |
2100 |
3000 |
YR355M1-6 |
155 |
34 |
|
2100*4500 |
24 |
24 |
≤ 25 |
8-42 |
2100 |
4500 |
YR355M3-6 |
245 |
42 |
|
2200*4500 |
22 |
28 |
≤ 25 |
8-45 |
2200 |
3000 |
YR355M3-6 |
280 |
48.5 |
|
2200*7000 |
22 |
35 |
≤ 25 |
15-28 |
2200 |
4800 |
YR355M4-6 |
380 |
54 |
|
2400*3000 |
22 |
23 |
≤ 25 |
8-50 |
2400 |
3000 |
YR355M4-6 |
245 |
54 |
|
2700*4500 |
21 |
48 |
≤ 25 |
12-150 |
2700 |
4000 |
YR400S-6 |
430 |
104 |
|
3200*4500 |
18 |
65 |
≤ 25 |
20-130 |
3200 |
4500 |
TDMK |
800 |
137 |
