| Prod Model: |
Dia1200x2400 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Place Of Origin: |
Henan China (Mainland) |
| Guarantee: |
12 Months |
| Installation: |
Under Our Engineer's Guide |
| Model Number: |
Various |
| Condition: |
New |
| Supply Ability: |
Adequate |
| Capacity(T/H): |
0.65-50 |
| Object: |
Iron Ore, Quartz |
| Tongs' Features: |
Adjustable Tongs |
| Cutter Material: |
Ceramics |
| Finished Surface: |
Gear Process |
| Drive: |
Electromagnetic |
| Compressive Strength (',For Crushing): |
250-300MPA |
| Crushing Degree: |
Fine Grinding Machine |
| Application: |
Ore, Stone, Rock, Marble, Granite |
| Crushing Style: |
Grinding and Impact |
| Type: |
Cement Industry, New Construction Materials |
Product Description
Ball mill brief introduction and application:
Ball mill is vital equipment for grinding many kinds of mine materials. Particle size depends on entirely the time how long the energy saving ball Mill runs. Ball mill is widely used in various fields, such as cement industry, new construction materials, refractory materials, chemical fertilizer industry, glass industry, black and non-ferrous metal ore dressing and glass ceramics production industry. All in all, ball mill is suitable to all kinds of ores and other materials through dry or wet grinding.

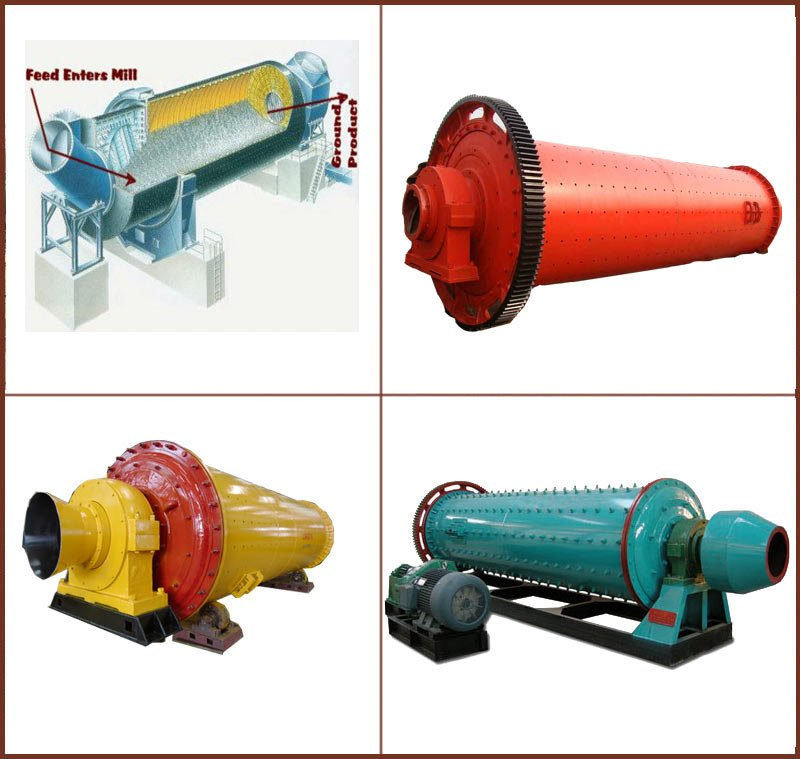

Ball mill main structures:
Ball mill is mainly made up of feeding part, discharging part, reducer, small transmission gears, motor, electric control and other major parts. Hollow shaft adopts steel castings materials and lining systems can be changed very early. Rotating big gear processes in the way of casting rolling gear. The cylinder body has wear-resisting lining board, which has good abrasion resistance
Ball mill working principle:
Cylinder body has the lining plate, which can protect the shell from wearing out. When the feedstock is put into the cylinder body, under the centrifugal force and the friction by the steel balls, the materials can be smashed, the powder can be discharged through the stripper plate, and the whole processing is finished.
|
Model |
Rotation speed
of bucket(r/min) |
Weight of ball
(t) |
Feed size
(mm) |
Discharge size(mm) |
Production(t/h) |
power
(kw) |
weight(T) |
|
Φ 900× 1800 |
38 |
1.5 |
≤ 20 |
0.075-0.89 |
0.65-2 |
18.5 |
3.6 |
|
Φ 900× 3000 |
38 |
2.7 |
≤ 20 |
0.075-0.89 |
1.1-3.5 |
22 |
4.6 |
|
Φ 1200× 2400 |
32 |
3.8 |
≤ 25 |
0.075-0.6 |
1.5-4.8 |
45 |
12.5 |
|
Φ 1200× 3000 |
32 |
5 |
≤ 25 |
0.074-0.4 |
1.6-5 |
45 |
12.8 |
|
Φ 1200× 4500 |
32 |
7 |
≤ 25 |
0.074-0.4 |
1.6-5.8 |
55 |
13.8 |
|
Φ 1500× 3000 |
27 |
8 |
≤ 25 |
0.074-0.4 |
2-5 |
90 |
17 |
|
Φ 1500× 4500 |
27 |
14 |
≤ 25 |
0.074-0.4 |
3-6 |
110 |
21 |
|
Φ 1500× 5700 |
27 |
15 |
≤ 25 |
0.074-0.4 |
3.5-8 |
132 |
24.7 |
|
Φ 1830× 3000 |
24 |
11 |
≤ 25 |
0.074-0.4 |
4-10 |
180 |
28 |
|
Φ 1830× 6400 |
24 |
23 |
≤ 25 |
0.074-0.4 |
6.5-15 |
210 |
34 |
|
Φ 1830× 7000 |
24 |
25 |
≤ 25 |
0.074-0.4 |
7.5-17 |
245 |
36 |
|
Φ 2200× 5500 |
21 |
30 |
≤ 25 |
0.074-0.4 |
10-22 |
370 |
48.5 |
|
Φ 2200× 6500 |
21 |
31 |
≤ 25 |
0.074-0.4 |
14-26 |
380 |
52.8 |
|
Φ 2200× 7500 |
21 |
33 |
≤ 25 |
0.074-0.4 |
16-29 |
380 |
56 |
|
Φ 2400× 7000 |
21 |
34.5 |
≤ 25 |
0.074-0.4 |
18-32 |
400 |
62.8 |
|
Φ 2400× 8000 |
20.4 |
36 |
≤ 25 |
0.06-0.08 |
18-36 |
410 |
81.2 |
|
Φ 2700× 3600 |
18 |
37 |
≤ 25 |
< 0.08 |
50 |
410 |
77.5 |
