Blince Omh 400cc Orbit Motors, Hydraulic Orbit Motor

Name: Blince Omh 400cc Orbit Motors, Hydraulic Orbit Motor
Brand: china-castingforging.com
SKU: 744859245
Availability: InStock
Rating: 4.4 (24 reviews)

Price:	US $ 1/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	2/Piece
Pay Type:	T/T,Western Union,Paypal

Contact Supplier

Dongguan Blince Machinery & Electronics Co., Ltd.

Showroom Product Company Profile

Prod Model:	omh200/315/400/500 hydraulic orbit motor
Markets:	North America,Southeast Asia,Eastern Asia,Western Europe
Usage:	Hydraulic Oil
Certification:	ISO9001 CE
Application:	Plastic/Agriculture/Construction/Drilling
Motor Flange:	2 Bolt/4 Blot Flange
Motor Material:	Cast Iron
Processing:	Forging & Cutting &Phosphating
Standard Or Nonstandard:	Standard
Motor Shafts:	Flat/Spline/ Tapered Shaft
Warranty:	One Year
Motor Operate:	with Electrical Machine/Pump /Cyclinder/Valve/
Type:	Hydraulic Power Units

Product Description

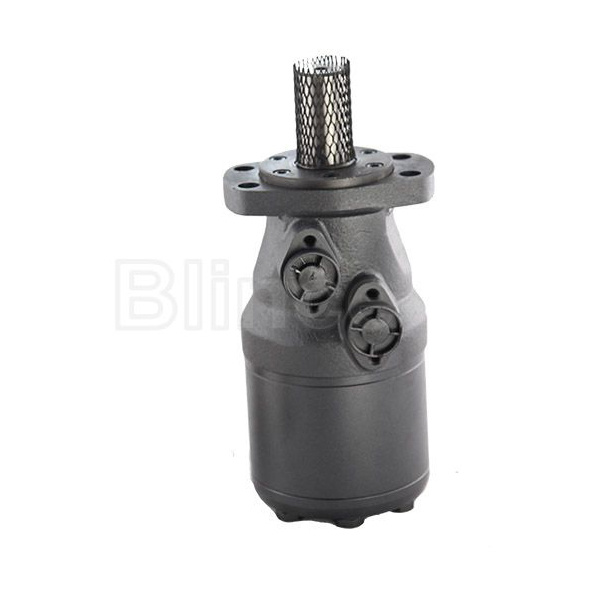

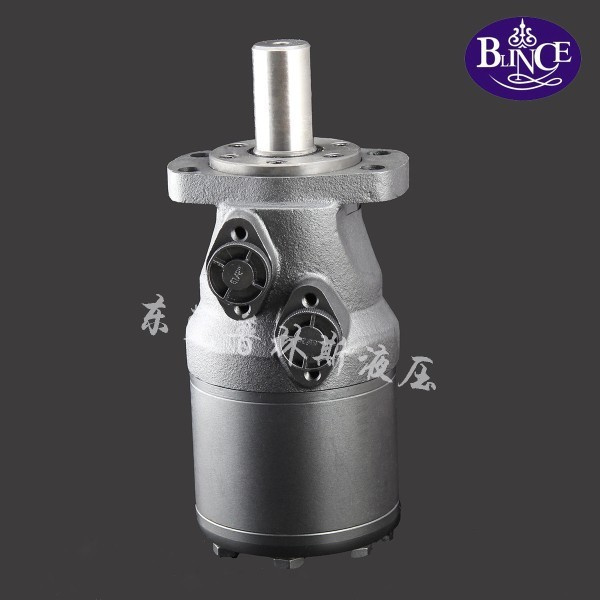

blince OMH 400cc orbit motors,hydraulic orbiot motor,motor hidraulico

OMH series motor adapt the advanced Geroler gear set design with shaft distribution flow, which can automatically compensate in operating with high pressure, provide reliable and smooth operation, high efficiency and long life.

Flange:
4×Ø13.5 Rhomb×flange Pilot Ø82.5×6
2×Ø13.5 Rhomb×flange Pilot Ø82.5×6

Shaft:
Shaft Ø32 , parallel key 10×8×45
Shaft Ø35, parallel key 10×8×45
Shaft Ø31.75, splined key 14-DP12/24
Long Shaft Ø31.75, splined key 14-DP12/24
Shaft Ø32 , parallel key 7.96×7.96×31.75
Cone shaft Ø35, parallel key B6×6×20
Shaft Ø25.4 , parallel key SAE 6B

Port and drain port:
G1/2 Manifold mount 4×M8, G1/4
M22×1.5 Manifold mount 4×M8, M14×1.5
7/8-14 O×ring Manifold mount 4×5/16-18UNC,7/16-20UNF
1/2-14 NPTF Manifold mount4×5/16-18UNC,7/16-20UNF
PT(Rc) 1/2 Manifold mount 4×M8,PT(Rc)1/4
2,Packing details of Blince OMH Hydraulic motors

1,sale packing contians carton or wood case
2,interior packing is high quality film

3,as your requests

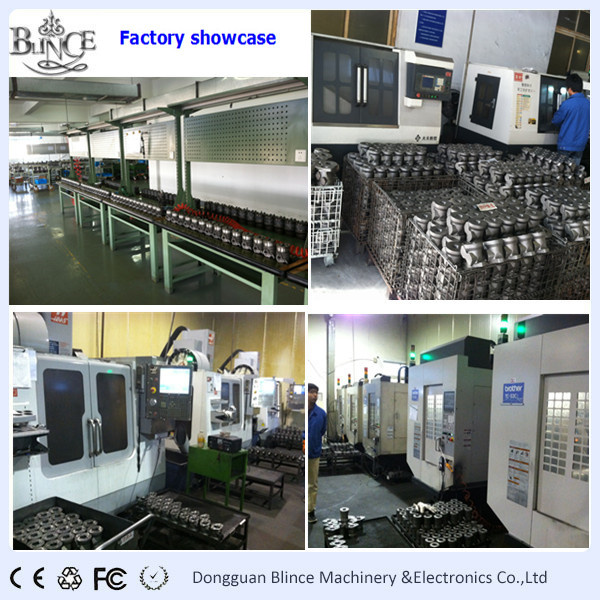

Blince factory :

blince profssion supply all series hydraulic motor like OMM/OMP/OMPH/OMR/OMRS/OZ/OK
/OMH/OMSY/OMT/OMV hydraulic orbit motor,hydraulic pump like ( PV2R series /V series / SQP series ) vane pumps. If you are interested in any our blince hydraulic motor pls contact me.
Thanks

Blince hydraulic motor perfect replace
parker hydraulic motor
white hydraulic motor
Eton hydrualic motor
M+S hydraulic motor

Type		OMH 200	OMH 250	OMH 315	OMH 400	OMH 500
Displacement (cc/rev)		203.2	255.9	316.5	406.4	489.2
Max torque (n.m)	cont	510	621	740	850	830
	inter	439	348	282	220	184
Max pressure (mpa)	cont	17.5	17.5	17.5	15.5	12.5
	inter	20	20	20	19	16
Max speed rate (rpm)	cont	366	290	236	183	155
	inter	439	348	282	220	184
Max flow (L/min)	cont	75	75	75	75	75
	inter	90	90	90	90	90
Weight (kg)		10.5	11	11.5	12.3	13.0
