| Prod Model: |
PV2R1/PV2R2/PV2R3 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Model No: |
PV2r1/PV2r2/PV2r3 |
| Displacement: |
Quantitative Pump |
| Nominal Displacement(Ml/R): |
6~153 |
| Mounting Type: |
Flange Mounting |
| Shaft Extension: |
Major Shaft Standard or Minor Shaft |
| Direction Of Rotation: |
Right Rotation Standard or Left Rotation |
| Inlet Position: |
Upper(Standard)/Bottom/Right/Left |
| Allowed Driving Speed(R /Min): |
1800(1200)-600 |
| Usage: |
Hydraulic Oil |
| Warranty: |
One Year |
| Mesh Form: |
External Engaged |
| Tooth Flank: |
Skew Tooth |
| Tooth Curve: |
Cycloid |
| Power: |
Hydraulic |
| Type: |
Vane Pump |
Product Description

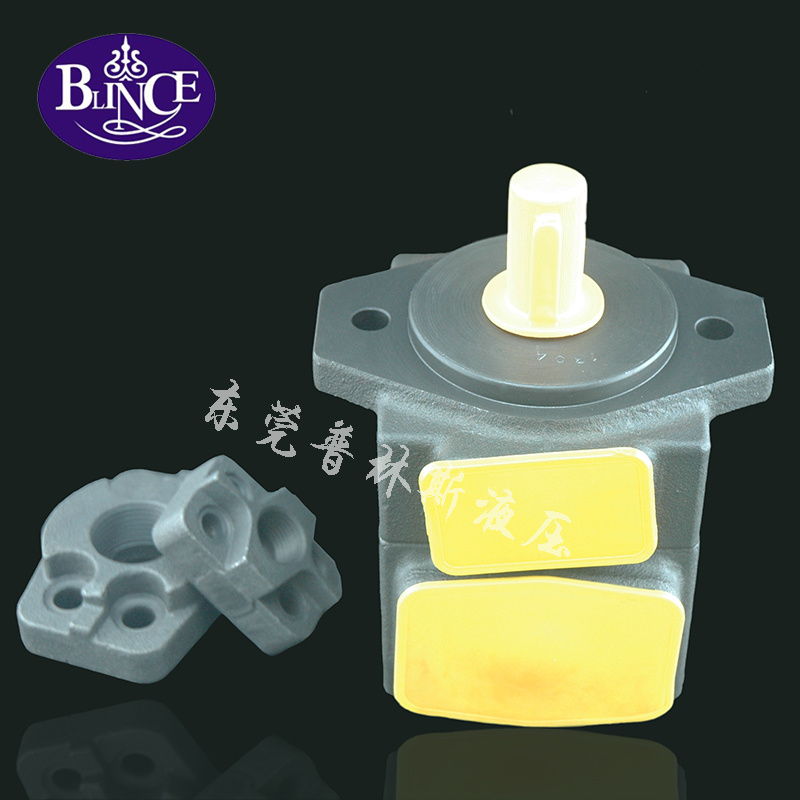

PV2R Series high pressure vane pumps with lower noise
Products introduction
PV2R series high pressure vane pumps with lower noise are the new developed products with the integration of the advantages of similar products at home and aboard in recent years, with the features of rational structure, high performance, high efficiency, lower noise, small pulsation, strong reliability, etc. The pumps provide extreme convenience for users and meet the substitution requirements for similar products with full specifications, national and international standard mounting dimensions, as well as derivative series mounting dimensions, making the pumps widely applied in the fields of machine tool industry, plastic machinery, forging machinery, engineering machinery, transportation machinery, etc
Model |
Theoretical
displacement
(mL/r) |
Max pressure |
Allowed
driving
speed
(r /min) |
Weight
(kg) |
Working oil of Petroleum series | Water-based
synthetic hydraulic
fluid |
Particular
pressure oil |
Anti-wear oil |
Common oil |
Anti-wear water-glyco | Sul phosuccinic
Ester fatty of acid |
Max |
Mini |
PV2R1-6
PV2R1-8
PV2R1-10
PV2R1-12
PV2R1-14
PV2R1-17
PV2R1-19
PV2R1-23
PV2R1-25
PV2R1-28
PV2R1-31 | 6.1
8.1
10.2
12.3
14.0
16.3
18.3
22.5
25.1
27.6
30.6 |
21 |
17.5 |
16 |
16 |
16 |
1800
(1200) |
750 |
8 |
PV2R2-26
PV2R2-33
PV2R2-41
Pv2R2-47
PV2R2-53
PV2R2-59
PV2R2-65
PV2R2-75* | 25.4
32.2
40.5
46.2
52.3
58.2
64.1
74.5 |
21 |
17.5 |
14 |
16 |
14 |
1800
(1200) |
600 |
16 |
PV2R3-52
PV2R3-60
PV2R3-66
PV2R3-76
PV2R3-85
PV2R3-94 | 51.5
62.9
67.0
79.2
84.5
93.8 |
21 |
17.5 |
14 |
16 |
14 |
1800
(1200) |
600 |
32 |
PV2R3-116
PV2R3-125
PV2R3-136
PV2R3-153 | 113.2
122.8
135.8
152.8 |
17.5 |
16 |
14 |
1200 |
#34 |
Blince profssion supply all series hydraulic motor like:
OMM/OMP/OMPH/OMR/OMRS/OZ/OK/OMH/OMSY/OMT/OMV hydraulic orbit motor, hydraulic pump like ( PV2R series / V V series / SQP series ) vane pumps. If you are interested in any our blince hydraulic motor pls contact me. Thanks! !
