| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Package: |
Manmade Wooden Case or Pallet |
| Certificate: |
ISO 9001 SGS CE |
| Production Capability: |
5000PCS Per Month |
| Origin Place: |
Qingdao China |
| Brand: |
Chifine |
| Service: |
OEM and ODM |
| Tolerance: |
CT7-CT9 |
| Machining: |
CNC Turning Milling Drilling Lathe |
| Delivery Time: |
30 Days After Receiving The Payment |
| Type: |
Clay Wet Sand |
Product Description
1. Material: Grey Iron, Ductile Iron, Malleable Iron, Carbon Steel, Aluminum, Brass, Bronze, copper, zinc, Stainless Steel(Little) etc
2. Tolling process: Resin sand/Green Sand
3. MAX unit weight: Iron sand casting 30TON, Steel sand casting 200TON
4. Max/Min wall thickness requirements: 4mm-250mm
5. Heat Treatment: Annealing, Quenching and tempering, Normalizing
6. Surface treatment: Paint, Anti-rust oil, Hot dipping galvanized, Powder coating
7. Certification: ISO9001(2008)
8. Products application: Machinery applications, automotive industry, lighting equipment, household appliances etc

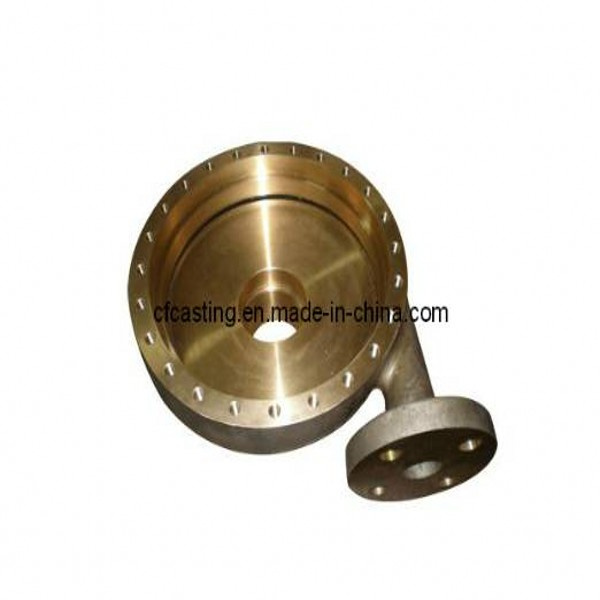

9. Bronze sand casting pump body
Comapny information:
1. Established in 2005. Located in Qingdao, ISO 9001(2008) approved
2. Experience: Over 15 years sand casting experience, OEM service available
3. Employers: 500.
4. Covered area: 400000 square metres
5. Workmanship: Traditional Sand Casting, Investment Casting (Precision Casting or Lost-Wax Casting), Resin Coated Sand Casting, Lost-Foam Castings etc.
6. Casting workshop area of 6, 000 square meters
Material
|
Ductile iron, gray cast iron
Stainless steel, carbon steel, low alloy steel
Copper alloy, aluminum al l oy etc
|
Casting Process
|
Clay sand casting, furan resin sand casting, shell mold casting
Water-glass sand casting, water-glass investment casting, lost-wax investment casting
Die casting
|
Scope of Business
|
Machinery part, Casting/Tractor/Pump / Valve/Impeller/Electrical
equipment/Auto parts/Farm machinery/Railway equipment/Mining
machinery/Engineering machinery/Petroleum machinery/ bronze pump body etc.
|
Qingdao Chifine Machinery Co., Ltd is One Famous Company in China Which Specialized in Various Metal Casting Products with Over 10 Years Experience Located in Qingdao China. It Covers a Comprehensive Range of Forging, Stamping, Sand Casting, Investment Casting, Die Casting and Machining and Was Widely Used in Agriculture Machinery, Motor Vehicle, Architecture, Railway and Engineering Chifine Has Accumulated Important and Valuable Experience in Design, Manufacturing and Customer Service Over These Years We Will Continue to Integrate Our Technical Superiority, Improve Process and Quality to Increase Market Share and Create More Brilliant Future.
Automative Casting Line:
• Material: Grey iron(GG20-GG35); Ductile iron(GGG40-GGG60);
Malleable cast-iron(GTS35-10/45-06/55-04/65-02, CTW35-04/05/06/07).
• Product Size: 0-1000mm.
• Weight: 0.2kg-100kg
Resin Sand Casting
• Material: Grey iron(GG20-GG35); Ductile iron(GGG40-GGG60);
Malleable cast-iron(GTS35-10/45-06/55-04/65-02, CTW35-04/05/06/07).
Steel casting(ASTM/UNS; DIN; JIS; NF; BS; ISO)
• Product Size: 0-1500mm.
• Weight: 10kg-5000kg
Shell Mould Casting
Shell casting is one of resin sand casting process.
It is suitable for thin-wall casting parts, be free from porosity.
• Material: Grey iron(GG20-GG35); Ductile iron(GGG40-GGG60);
Malleable cast-iron(GTS35-10/45-06/55-04/65-02, CTW35-04/05/06/07).
Steel alloy; Aluminum alloy; Copper alloy.
• Product Size: 0-500mm.
• Weight: 50g-100kg.
• Wall thickness: 4-20mm
Lost Wax Casting
• Advanced wax-injection-machine and tool to ensure accurate wax-patten.
• Stable temperature and humidity environment make the wax-patten no deformation.
• Material:
Carbon steel; Stainless steel; Alloy steel.
Grey iron(GG20-GG35).
Ductile iron(GGG40-GGG60);
Malleable cast-iron
(GTS35-10/45-06/55-04/65-02, CTW35-04/05/06/07).
Aluminum alloy; Copper alloy.
• Casting size: 0-500mm.
• Casting weight: 50g-100kg
Stamping and Forging Line
• Stamping and forging equipment: 16T-300T press machine
• Automatic transport forging line
• Material: Carbon steel; Stainless steel; Alloy steel.
Aluminum alloy; Copper alloy.
Machining Shop
Our machining shop located in Qingdao, using the latest CNC equipment to provide our customer with high quality products.
• Horizontal and Vertical Machining Center
• CNC lathe and normal lathe
• CNC drilling and milling Center
• Other assistant equipment
