| Prod Model: |
C60-100 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Forging Forming Method: |
Free Forging |
| Size: |
7000*1400*1500mm |
| Weight: |
6500kgs |
| Forming Steps: |
13+3steps for Reshaping |
| Processing Speed: |
10-15m/Min |
| Voltage: |
380V/50Hz/3pH |
| Width Of Purline: |
60mm, 80mm, 100mm |
| Height Of Purline: |
33mm, 40mm, 50mm |
| Forming Thickness: |
Forming Thickness |
| Material: |
Normal Galvanized Building Strips |
Product Description

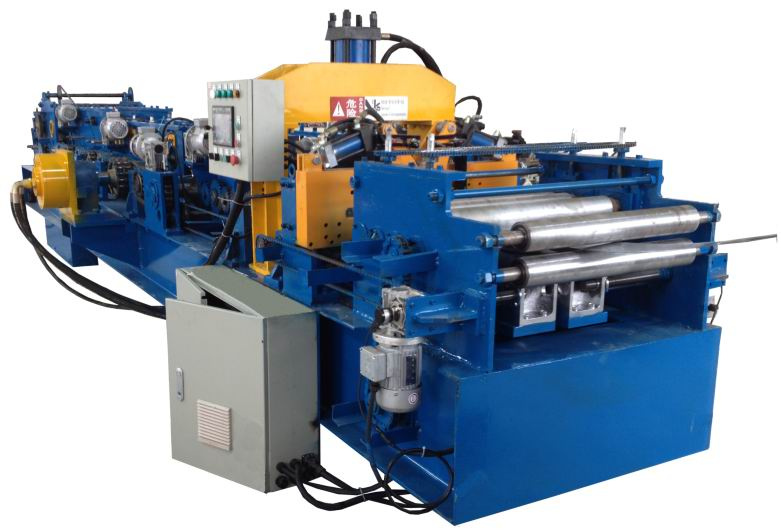

C Purline Machine With Pre-punching And Post-cutting, C-shaped Steel Machine and Purlin Machinery with detailed informations' are as follows:
Main Accessories:
(1) Main Purline Forming Machine;
(2) 3 Tons Manual Uncoiler;
(3) Guide Device;
(4) Hydraulic System ( Total three oil cylinders, two for punching holes, one for post-cutter)
(5) Hydraulic Motor;
(6) Hydraulic Post-cutting Device( total six sets cutters,
One for C33-60, one for C50-60, one for C50-80, one
For C40-80, one for C400-100, one for C50-100);
(7) PLC Computer Controlling System With Touch Screen
(Brand: Delta or Schneider, or Siemens, choose any one);
(8) Pre-punching Holes Device( the buyer decide the size of punching holes );
(9) Reshaping Device;
(10) Run Out Table(4 sets);
(11) Tools;
(12) Operation Manual.
Material: Normal galvanized building strips;
Usage: Purline for steel structure of building projects
Feature: Full automatically adjusting models and making C-shaped purlines, can save much times, labors and cost.
Delivery Time: 60 days!
