| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Voltage: |
380V *3 Phase* 50Hz or as Per The Customer's Requi |
| Forming Speed: |
About 10-12m/Min |
| Usage: |
Roof / Buidings |
| Forging Forming Method: |
Mold Forging |
Product Description

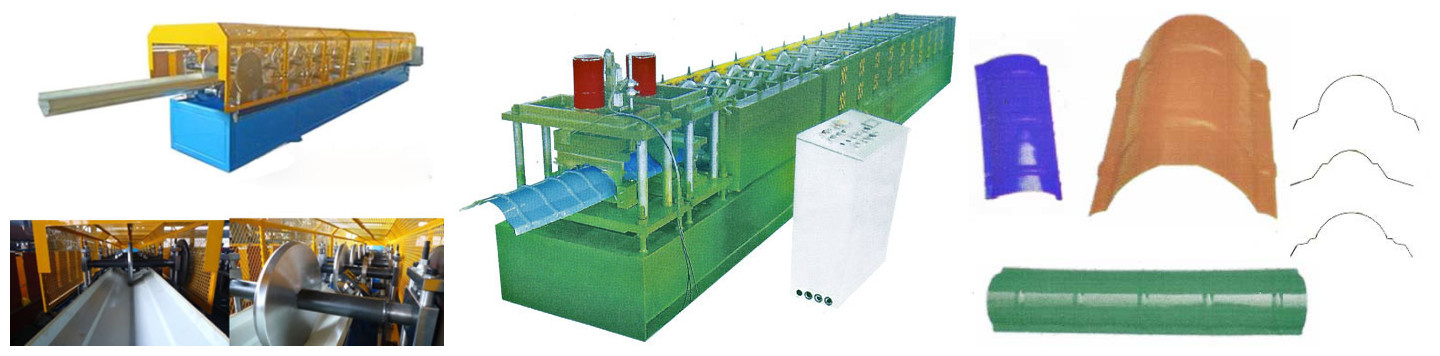

Cap ridge roll forming machine
1. Brief introduction:
A. Simple structure and beautiful outlook;
B. Easy to setting and operation
C. Little noise and high working efficiency.
Main Technology Parameter:
Size of sheet(mm): According client's request
Working speed: 2-4m/min
Roll station: 14stations
Material of roller: 62 forge steel, polished and coated with chrome
Material of main shaft: 45#forge steel diameter roller: 65mm
Main power: 4kw
Hydraulic station power: 4kw
Hydraulic pressure: 16Mpa
Control system: PLC, Panasonic
Size of machine: 8500x1000x1200mm
Material of cutting: Cr12MOV
Thickness: 0.4-0.7mm
Tolerance of length: ± 2mm
Way of drive: Single row of chain1inch
Thickness standard: 0.5mm
ZuoJiaYou international industrial Co., Ltd is the registered in the Hong Kong special administrative region. It is a comprehensive company which has invested into the import and export industry for the machinery industrial and other goods in domestic. Our company has strong economic foundation, strong network of relationships, perfect technology and personnel configuration. We have a very completely mechanical independently research and development system, and a service system for import and export.
We have advanced production equipment and our engineering personnel and technicians have extensive experience in designing, developing, and manufacturing machineries. They pay close attention to and keep up with the developing trend of technologies and use new technologies in manufacturing machinery, to keep them competitive. Our products feature high efficiency, high flexibility and low cost.
"Customers are the first, success comes from development" is our principle. We bear this in mind during the whole process from design and development of product to after-sales services. We will design and manufacture machinery strictly in accordance with your requirements
Excellent service and high technology assist you to create a bright future.
