Product Description

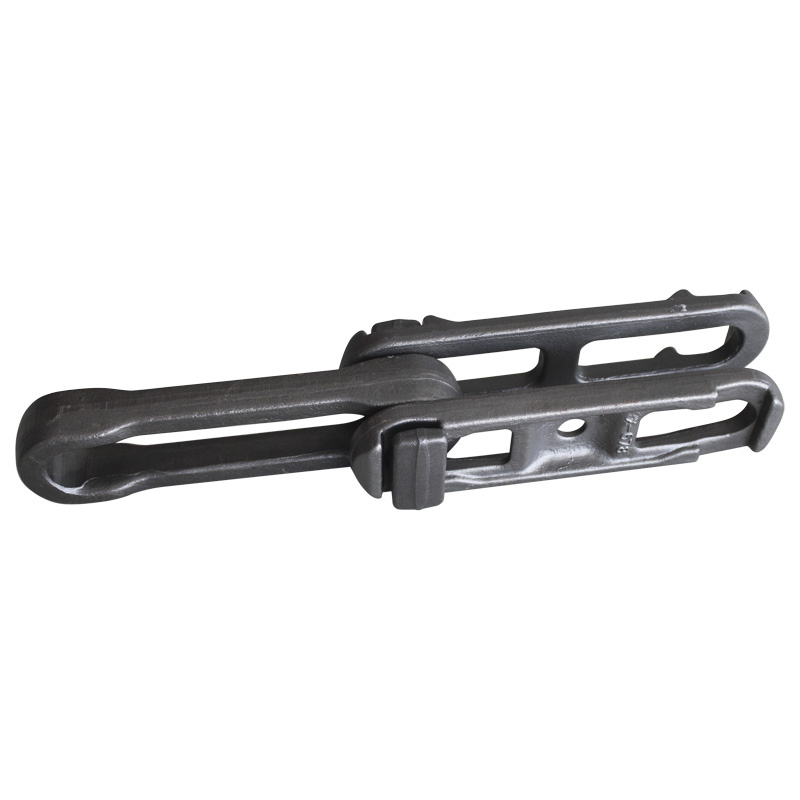

Drop Forged Chain
The drop forged chain is mainly composed of three drop forged components that are the pin roll, middle chain ring, and the outer chain sidebar. It can be conveniently assembled and disassembled, completely by hand without tools. For instance, the assembly can be easily completed by passing the outer sidebar through the middle chain ring, and then rotate the middle chain ring for 90 degrees to engage with the pin roll.
When the chain forms into a ring, it can be utilized as a conveyor chain for heavy loads. Our drop forged chain is often found on the conveying equipment and suspension equipment, in automobile, food processing, and steelmaking industries.
---
| Standard | Chain No. | Reference pitch P (mm) | Diameter of pin d2 (mm) | Length of pin L (mm) | Standard length (min/max) (mm) | Number of pitch within standard length | Sideward bending angle α (°) | Width of sidebar h2 (mm) | Tensile strength (KN) | Weight per meter (kg/m) |
| British system series | X348 | 76.6 | 12.7 | 47 | 3050.5/3095.2 | 40 | 9 | 27 | 98 | 2.7 |
| X458 | 102.4 | 16 | 58 | 3063.1/3090.2 | 30 | 9 | 35 | 187 | 5.2 |
| 468H | 102.4 | 19.5 | 84.1 | 3063.1/3090.2 | 30 | 9 | 47.8 | 311.7 | 11.5 |
| X678 | 153.2 | 22.3 | 77 | 3055.1/3082.8 | 20 | 7 | 51.6 | 318 | 9.5 |
| 698 | 153.2 | 28 | 95.3 | 3055.1/3082.8 | 20 | 7 | 60 | 515 | 17 |
| 698H | 152.4 | 39 | 154 | 3039.2/3066.6 | 20 | 7 | 72 | 1078 | 37.7 |
| Metric system series | F100X16 | 100 | 15.5 | 77 | 2991.3/3018.3 | 30 | 9 | 35 | 187 | 4.7 |
| F100X17 | 100 | 17 | 77 | 2991.3/3018.3 | 30 | 9 | 35 | 187 | 4 |
| F160X24 | 160 | 23.5 | 96 | 3190.7/3219.5 | 20 | 7 | 51.6 | 318 | 10.3 |
| British system series | X348 | 76.6 | 12.7 | 47 | 3050.5/3095.2 | 40 | 9 | 27 | 98 | 2.7 |
| X458 | 102.4 | 16 | 58 | 3063.1/3090.2 | 30 | 9 | 35 | 187 | 5.2 |
| 468H | 102.4 | 19.5 | 84.1 | 3063.1/3090.2 | 30 | 9 | 47.8 | 311.7 | 11.5 |
| X678 | 153.2 | 22.3 | 77 | 3055.1/3082.8 | 20 | 7 | 51.6 | 318 | 9.5 |
| 698 | 153.2 | 28 | 95.3 | 3055.1/3082.8 | 20 | 7 | 60 | 515 | 17 |
| 698H | 152.4 | 39 | 154 | 3039.2/3066.6 | 20 | 7 | 72 | 1078 | 37.7 |
| Metric system series | F100X16 | 100 | 15.5 | 77 | 2991.3/3018.3 | 30 | 9 | 35 | 187 | 4.7 |
| F100X17 | 100 | 17 | 77 | 2991.3/3018.3 | 30 | 9 | 35 | 187 | 4 |
| F160X24 | 160 | 23.5 | 96 | 3190.7/3219.5 | 20 | 7 | 51.6 | 318 | 10.3 |
