Prod Model: |
WF-JF |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Item: |

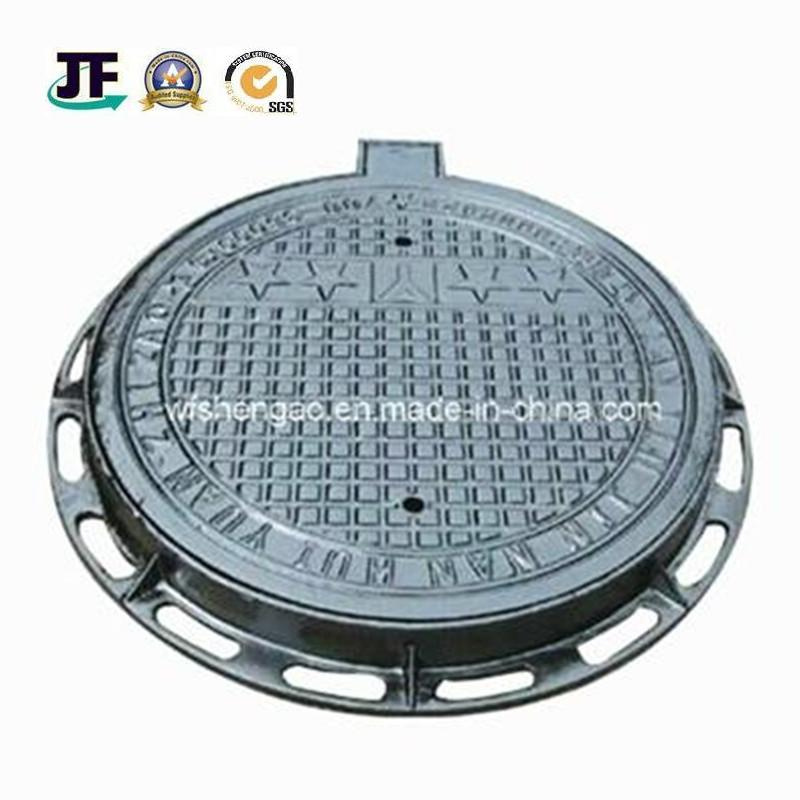

Cast Manhole Cover for En124 D400 Manhole |
Use: |
Construction and Public Use |
Shape: |
Round,Square,etc. |
Dimensions: |
Dimensions |
Welcome: |
Custom Forging Parts |
Quality Certification: |
ISO9001:2008,AISI,CE,Leo,SGS |
Delivery Time: |
30days After Payment |
Best Products: |
Best Price |
Machining Service: |
Your Logo,Charactor,Trade Name,Number |
Quation Lead Time: |
Within 24 Hours |
Type: |
Chemical Hardening Sand |
Product Description
E600 Black Ductile Iron Manhole Covers for Drainage with EN124
Specifications
1) Ductile Iron Manhole Covers with SGS Certification (DN600)
1.Process: Sand Casting, Investment Casting (Precision Casting/Lost-Wax Casting).
2.Casting experience: 10years,OEM service available
3.Surface: blackening, galvanize, plating,painting,etc.
4.Material: QT, iron, steel
5.Technology: sand casting
6.Advantages: Delivery on time, according to the demand for materials
7.Packing: wooden case or as your requirement.
8.Deliverywithin 20 days after receiving last confirm information.
9.Production Capacity: Sand Casting 2000 tons per month,Investment Casting 120 tons per month.
10.Certification: ISO 9001:2008.
2)Manufacturing process
1.Sample or Drawing by customer
2.Tooling proposal&Discussion
3.3D Tooling Design
4.Tooling production
5.Rough parts manufacturer
6.CNC Machining
7.Fitting&Finish
8.Tooling Measurement&Check
9.Assembly
10.Trial Production
11.Correction
12.Final Trial
13.Samples Inspection
14.Sample Approval by customer
15.Tooling Approval
16.Ductile iron sand casting
Characteristics of our manhole cover:
1. Material: cast gray iron, ductile iron.
2. Shape: round, square, rectangle and triangle.
3. Diameter: from 200mm to 1200mm.
4. Weight: from 7kg to 154kg or according to customers\' requirment
5. Packing: in wooden pallet with plastic layer
6. Annual output: 10,000 tons
7. Coating: black bitumen or Coating as per customers\' requirement
8. Use :municipal engineering, Traffic, pavement ,electronics,telecom, cable, petroleum, chemical industry, or drainage system and industrial facilities of valve well.
Casting manhole cover/cast iron manhole cover price
Clear Opening: 390*390mm
Frame size: 490*490mm
Frame depth: 75
Testing Loading: D600
Material: Ductile iron GGG500-7&400-12
Standard : EN124
1. Advantage of our Manhole Covers
1) Can supply all kinds of load class Product such as A15/B125/C250/D400/E600/F900
2) Against theft and safety, double sealed, watertight type
3)material No. GGC50(DIN1693-73),QT500-7(GB/T1348-1988), 80-55-06(ASTM A536), FCD500(JISG 5502-2001),500/7(BS2789:1985).
4)Free charge of design.
5) 3 day pay for ready if the request in storck.
2. Detailed information of manhole cover
1) Various manhole cover made by GX Foundry strictly conform to standard and free from sand holes, blowholes,distortion or any other defects
2)Processes:
a) Automatic machine lines
b) Moulding boards
c) Green sand with hand moulding
3)Guarantee: GX Foundry will replace any heavy duty castings that have been properly installed and broken in normal use,free of charge after receipt of the broken castings.
2)Company Profile:
We mainly undertake the casting parts,machined parts and other products.Our Import and Export Department have many years experiences of foreign trade,products are mainly exported to the United States,Denmark,Italy,Russia,Australia etc.
manhole covers,smc composite manhole cover,drainage,trench drain,drain pipe,drains,manhole covers,manhole,gulley,manhole covers sale
We assure you of our best services at all times!
Item | Description | Material | Technical Process |
1 | Ductile iron castings | ASTM A 536-Gr.60-40-18,65-45-12,80-55-06,80-60-03; DIN-GGG40,GGG50,GGG60,GGG70; JIS-FCD40,FCD50,FCD60,FCD70; BS-Gr370-17,Gr420-12,Gr500-7,Gr600-3,Gr700-2; NF-FGS370-12,FGS400-12,FGS500-7,FGS600-3,FGS700-2; | Green-sand moulding Resin-sand moulding Lost foam cast Shell-core cast Electric-furnace smelting |
2 | Grey iron castings | ASTM A48-No.20,25,30,35,40,45,50; ASTM A126-Class A, Class B, Class C; DIN-GG10,GG15,GG20,GG25,GG30,GG35; JIS-FC10,FC15,FC20,FC25,FC30,FC35; BS-Grade 150,180,220,260,300,350; NF-FGL150,FGL200,FGL250,FGL300,FGL350; | Green-sand moulding Resin-sand moulding Lost foam cast Shell-core cast Electric-furnace smelting |
3 | Carbon steel castings | ASTM A216-Gr. WCB, Gr. WCA, Gr. WCC; ASTM-415-205, 450-240, 485-275, 80-40; DIN- GS-C25(1.0619), GS-38(1.0416), GS-45(1.0446), GS-52(1.0552), GS-60(1.0558); JIS-SC410, SC450, SC480, SCC5; BS-A1, A2, A5; NF-GE230, GE280, GE320, GE370 | Soluble glass sand moulding Resin-sand moulding Lost wax casting (Investment casting) Lost foam cast Shell-core cast Electric-furnace smelting |
4 | Stainless steel castings | ASTM-CF-8M, CF-8, CA-15, CA-40, 316, 304; DIN-G-X6CrNi18 9(1.4308), G-X7Cr13(1.4001) G-X20Cr14(1.4027), 1.4408; JIS-SCS13, SCS 1, SCS 2, SCS 14A; BS-304C15, 410C21, 420C29, 316, 304; NF-Z6CND18.12M, Z6CN18.10M, Z12C13M, Z20C13M | Soluble glass sand moulding Resin-sand moulding Lost wax casting (Investment casting) Electric-furnace smelting |
5 | Alloy steel castings | DIN-GS-40Mn5(1.1168), GS-20Mn5(1.1120); GS-37MnSi5(1.5122), GS-34CrMo4(1.7220); JIS-SCMn3, SCW480, SCSiMn2, SCCrM3, SCMnCR3; ASTM-LCC UNS-J02505, J13048 NF-G20M6, G35CrMo4 | Soluble glass sand moulding Resin-sand moulding Lost wax casting (Investment casting) Electric-furnace smelting |
WeiFang Shengao Machinery Co., Ltd is located in WeiFang the famous city in China and the world center of kites. It is 140 kilometers far away from Qingdao port, the transporation is very convenient. Our company use the location advantages of ShanDong province to integrate resources so that we can processing according to the drawings of customers. We mainly undertake the casting parts, machined parts and other products. Our Import and Export Department have many years experiences of foreign trade, products are mainly exported to the United States, Denmark, Italy, Russia, Australia etc.
Over the years, company adhere to the guideline for management of "Quality first, Reputation first, Delivery just-in-time, Price best". We will try our best to improve the technical level and perfect the enterprise management. Our company will depend on superior quality of products and sincere service to cooperate with dometic and overseas, new and old customers and establish eternal friendship to create a bright future.
