| Prod Model: |
WF-JF |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Item: |
OEM Ductile Iron Drain Manhole Cover for Septic Ta |
| Use: |
Construction and Public Use |
| Shape: |
Round,Square,etc. |
| Dimensions: |
as Your Requirement |
| Quality Control: |
100% Inspected |
| Advantages: |
Within 20 Days After Receiving Last Confirm Info |
| Unique: |
China Gold Supplier |
| Supply: |
Drawing Design |
| Castig Type: |
Sand Casting |
| Standard Or Nonstandard: |
Nonstandard |
| Type: |
Chemical Hardening Sand |
Product Description

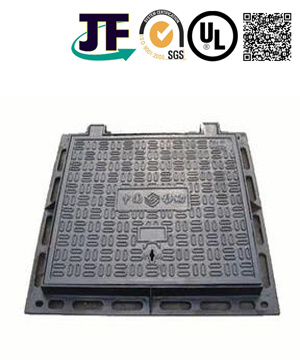

OEM Ductile Iron Drain Manhole Cover for Septic Tank Cover
Manhole Cover,square manhole cover,cast iron manhole cover,ductile iron
manhole cover,round manhole cover,drain manhole cover,iron manhole cover,
grey iron manhole coverManhole Cover
Cast iron manhole cover
We can produce all kind of manhole cover with customers' drawing or sampe.
OEM ans ODM are welcomed. OEM Manhole Ductile Iron Sand Casting for Manhole Cover
1. Process: Sand Casting, Investment Casting (Precision Casting/Lost-Wax Casting).
2. Casting experience: 10years, OEM service available
3. Surface: Blackening, galvanize, plating, painting, etc.
4. Material: QT, iron, steel
5. Technology: Sand casting
6. Advantages: Delivery on time, according to the demand for materials
7. Packing: Wooden case or as your requirement.
8. Deliverywithin 20 days after receiving last confirm information.
9. Production Capacity: Sand Casting 2000 tons per month, Investment Casting 120 tons per month.
10. Certification: ISO 9001: 2008.OEM Manhole Ductile Iron Sand Casting for Manhole Cover
1. Sample or Drawing by customer
2. Tooling proposal&Discussion
3.3D Tooling Design
4. Tooling production
5. Rough parts manufacturer
6. CNC Machining
7. Fitting&Finish
8. Tooling Measurement&Check
9. Assembly
10. Trial Production
11. Correction
12. Final Trial
13. Samples Inspection
14. Sample Approval by customer
15. Tooling Approval
16. Ductile iron sand castingOEM Manhole Ductile Iron Sand Casting for Manhole Cover
3)About Us:
We mainly undertake the casting parts, machined parts and other products. Our Import and Export Department have many years experiences of foreign trade, products are mainly exported to the United States, Denmark, Italy, Russia, Australia etc.
Characteristics of our manhole cover:
1. Material: cast gray iron, ductile iron.
2. Shape: round, square, rectangle and triangle.
3. Diameter: from 200mm to 1200mm.
4. Weight: from 7kg to 154kg or according to customers\' requirment
5. Packing: in wooden pallet with plastic layer
6. Annual output: 10,000 tons
7. Coating: black bitumen or Coating as per customers\' requirement
8. Use :municipal engineering, Traffic, pavement ,electronics,telecom, cable, petroleum, chemical industry, or drainage system and industrial facilities of valve well.
OEM and Customized Ductile Iron Sand Casting for Manhole Cover4)Typical products:
Scaffold fittings, Template parts, Railway fittings, ring flange, electromagnetic steel cover, piston, pressure plate, center plate, wear plate, cylinder, impeller, disc etc.OEM Manhole Ductile Iron Sand Casting for Manhole Cover
1.Casting classification:Sand casting;Precision casting;Vacuum process casting etc.2.Gray iron, ductile iron, stainless steel ,carbon steel,alloy steel, etc.3.Adoption standard:BS,DIN,ASTM GB etc.4.Weight range:0.5~5000kg.5.Producing capacity :2,000 tons per month .6.Main application:Metallurgy;Machinery;Plastics;Rubber;Pharmaceutical;Textiles;Mining;Paper-making;Packaging.7.Main equipments:Furnaces;Heat treatment furnaces;Direct-reading spectrometer;Shot -blasting equipments, etc.8.Surface treatment:Polishing,plating,shot blasting,heat treatment ,etc9.Inspection and test:Foundry in home,third part inspection,Material report,UT, MT, RT, and PT,etc..10.Packing and shipping :Stand export packing;20day make modul & sample;Delivery time against your quantity.11.Casting service:Your logo, character, trade name, number etc can be casted on the surface clearly.OEM Manhole Ductile Iron Sand Casting for Manhole Cover
1.Ductile Iron Castings:molding process: Resin sand/Green SandMaterial: EN-GJS-400-15/EN-GJS-500-7/EN-GJS-600-3/EN-GJS-700-2Molding: Hand molding/Molding machine Z145/146/148/Molding line.Possible Heat Treatment: AnnealingIndustry involved: Municipal Construction / Fluid/AutomotivePart unit weight range: 0. 5kg-2000kgsMax/Min wall thickness requirements: 4mm-250mmManufacturer Certification: ISO9001(2000)/ TS16949OEM Manhole Ductile Iron Sand Casting for Manhole Cover
2. Grey iron castings: 1) molding process: Green sand/Resin sand2) Material: EN-GJL-150/DIN 1691 GG-15,EN-GJL-200/DIN 1691-GG20,EN-GJL-250/DIN1691-GG25,EN-GJL-300/DIN1691-GG303) Molding: Hand molding/ Molding machine Z145/146/148/Molding line.4) Industry involved: Municipal industry/Construction Fluid industry/Automotive industry5) Part unit weight range: 0.5kg-2000kgs6) Max/Min wall thickness requirements: 4mm7) Manufacturer Certification: ISO9001(2000)/ TS16949OEM Manhole Ductile Iron Sand Casting for Manhole Cover
| Item |
| Material | Technical Process |
| 1 | Ductile iron
castings | ASTM A 536-Gr.60-40-18,65-45-12,80-55-06,80-60-03;
DIN-GGG40,GGG50,GGG60,GGG70;
JIS-FCD40,FCD50,FCD60,FCD70;
BS-Gr370-17,Gr420-12,Gr500-7,Gr600-3,Gr700-2;
NF-FGS370-12,FGS400-12,FGS500-7,FGS600-3,FGS700-2; | Green-sand moulding
Resin-sand moulding
Lost foam cast
Shell-core cast
Electric-furnace smelting |
| 2 | Grey iron
castings | ASTM A48-No.20,25,30,35,40,45,50;
ASTM A126-Class A, Class B, Class C;
DIN-GG10,GG15,GG20,GG25,GG30,GG35;
JIS-FC10,FC15,FC20,FC25,FC30,FC35;
BS-Grade 150,180,220,260,300,350;
NF-FGL150,FGL200,FGL250,FGL300,FGL350; | Green-sand moulding
Resin-sand moulding
Lost foam cast
Shell-core cast
Electric-furnace smelting |
| 3 | Carbon steel
castings | ASTM A216-Gr. WCB, Gr. WCA, Gr. WCC;
ASTM-415-205, 450-240, 485-275, 80-40;
DIN- GS-C25(1.0619), GS-38(1.0416),
GS-45(1.0446), GS-52(1.0552), GS-60(1.0558);
JIS-SC410, SC450, SC480, SCC5;
BS-A1, A2, A5;
NF-GE230, GE280, GE320, GE370 | Soluble glass sand moulding
Resin-sand moulding
Lost wax casting
(Investment casting)
Lost foam cast
Shell-core cast
Electric-furnace smelting |
| 4 | Stainless steel
castings | ASTM-CF-8M, CF-8, CA-15, CA-40, 316, 304;
DIN-G-X6CrNi18 9(1.4308), G-X7Cr13(1.4001)
G-X20Cr14(1.4027), 1.4408;
JIS-SCS13, SCS 1, SCS 2, SCS 14A;
BS-304C15, 410C21, 420C29, 316, 304;
NF-Z6CND18.12M, Z6CN18.10M, Z12C13M, Z20C13M | Soluble glass sand moulding
Resin-sand moulding
Lost wax casting
(Investment casting)
Electric-furnace smelting |
| 5 | Alloy steel
castings | DIN-GS-40Mn5(1.1168), GS-20Mn5(1.1120);
GS-37MnSi5(1.5122), GS-34CrMo4(1.7220);
JIS-SCMn3, SCW480, SCSiMn2, SCCrM3, SCMnCR3;
ASTM-LCC
UNS-J02505, J13048
NF-G20M6, G35CrMo4 | Soluble glass sand moulding
Resin-sand moulding
Lost wax casting
(Investment casting)
Electric-furnace smelting |

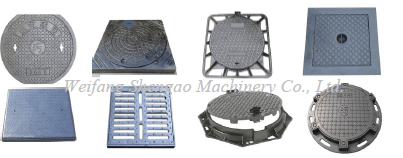

Manhole Cover:

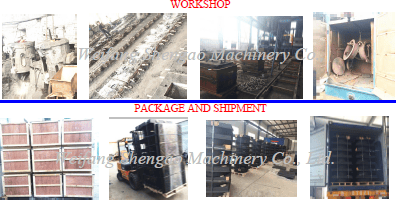

workshop:
Quality Control:
| Item | OEM Manhole Ductile Iron Sand Casting for Manhole Cover |
| Size | DN100-1000mm |
| Surface treatment | black painted, oil, painting |
| Shape | square, round |
| Material | ductile iron, cast iron, QT500 |
| Heat Treatment | can be as your requirement. |
| Advantages | Delivery on time, according to the demand for materials |
| Packing | wooden case or as your requirement. |
| Delivery | within 30 days after receiving last confirm information. |
OEM Manhole Ductile Iron Sand Casting for Manhole Cover
1.Q: Why choose Shengao product?
A: We shengao have our own plant-- Weifang Shengao machinery Co., Ltd, therefore, we can surely promise
the quality of every product and provide you comparable price.
2.Q: Do you provide OEM Service?
A: Yes, we provide OEM Service.
3.Q: Do you provide customized manhole cover?
A: Yes. Customers give us drawings and specifications, and we will
manufact accordingly.
4.Q: What is your payment term?
A: We provide kinds of payment terms such as L/C, T/T, Paypal, Escrow, etc.
If there's anything I can help, please feel free to contact with me.
WeiFang Shengao Machinery Co., Ltd is located in WeiFang the famous city in China and the world center of kites. It is 140 kilometers far away from Qingdao port, the transporation is very convenient. Our company use the location advantages of ShanDong province to integrate resources so that we can processing according to the drawings of customers. We mainly undertake the casting parts, machined parts and other products. Our Import and Export Department have many years experiences of foreign trade, products are mainly exported to the United States, Denmark, Italy, Russia, Australia etc.
Over the years, company adhere to the guideline for management of "Quality first, Reputation first, Delivery just-in-time, Price best". We will try our best to improve the technical level and perfect the enterprise management. Our company will depend on superior quality of products and sincere service to cooperate with dometic and overseas, new and old customers and establish eternal friendship to create a bright future.
