| Prod Model: |
LNG40 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Tolerance: |
Customized |
| Application: |
Motor Magnet |
| Shape: |
Customized |
| Coating: |
None |
| Grade: |
LNG40 |
Product Description

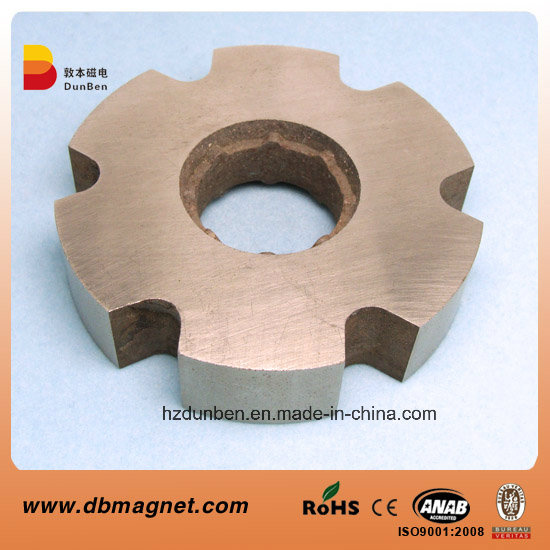

AlNiCo Magnet
AlNiCo magnet is hard and brittle. Machining or drilling cannot therefore be accomplished by ordinary methods. Holes are usually cored in at the foundry, and magnets are cast close to final size and then finish machined to closer tolerances.
Manufacturing Methods
AlNiCo magnets are manufactured through either casting or sintering processes.
Cast magnets are manufactured by pouring a molten metal alloy into a mold and then further processing it through various heat-treat cycles.
Sintered magnets are manufactured by compacting fine AlNiCo powder in a press, and then sintering the compacted powder into a solid magnet.
AlNiCo Magnet Characteristics
Grade | Br | Hc | (BH)max | Curie temp | Work temp |
| mT GS | ka/m OE | kj/m3 MGOe |
|
|
| LN10 | 600/6000 | 40/500 | 10.00/1.20 | 810 | 450 |
| LNG12 | 700/7000 | 44/550 | 12.00/1.50 | 810 | 450 |
| LNG13 | 680/6800 | 48/600 | 13.00/1.63 | 810 | 450 |
| LNG18 | 900/9000 | 48/600 | 1800/2.25 | 850 | 450 |
| LNG37 | 1200/12000 | 48/600 | 37.00/4.63 | 860 | 525 |
| LNG40 | 1250/12500 | 48/600 | 40.00/5.00 | 860 | 525 |
| LNG44 | 1250/12500 | 52/650 | 44.00/5.50 | 860 | 525 |
| LNG52 | 1300/13000 | 56/700 | 52.00/6.5 | 860 | 525 |
| LNG60 | 1330/13300 | 60/750 | 60.00/7.5 | 860 | 525 |
| LNGT18 | 580/5800 | 90/1130 | 18.00/2.25 | 860 | 550 |
| LNGT30 | 1100/11000 | 56/700 | 30.00/3.75 | 860 | 550 |
| LNGT32 | 800/8000 | 100/1250 | 32.00/4.00 | 860 | 550 |
| LNGT38 | 800/8000 | 110/1380 | 38.00/4.75 | 860 | 550 |
| LNGT44 | 850/8500 | 120/1500 | 40.00/5.5 | 860 | 550 |
| LNGT48 | 900/9000 | 120/1500 | 48.00/6.00 | 860 | 550 |
Surface Treatments
The corrosion resistance of AlNiCo is considered excellent , and no surface treatments are required. However, AlNiCo magnets are easily plated for cosmetic reasons if required.
AlNiCo Magnet appliaction
AlNiCo Magnet is widely used for instruments, autombile, teaching and electronics
We will provide standard export package which is ok for sea or air shipment
As the manufacturer of magnet material and magnetic assembly, Dunben Magnet Co., Ltd has developed magnet and precision magnetic production for the worldwide automotive, electronics, panel meter, power industries for ten years.
Our company was established in the year of 2004, after long delveoping, our manufactures products which serve global markets and include a broad range of magnetic materials and components, magnetic lift systems, material handling equipment, , magnetic motor, bonded magnets, and assemblies.
Customer can count on our excellent work system, professional engineer team, responsible sale team, excellent produce team, strict QC team and perfect after-sale service from Dunben magnet co. Ltd.
In order to satisfy our customer's needs, Hangzhou Dunben focuses on quality control with continuous improvements on all manufacturing processes and provides the most competitive prices based on domestic resources. Customized magnets are always available here.
Depend on high technical, strict quality system, competitive price, our business have been exported to over 10 countries, such as USA, Korea, Germany and so on
We are sincerely willing to establish long business relationships with all customers, so welcome all friend come to visit our factory
