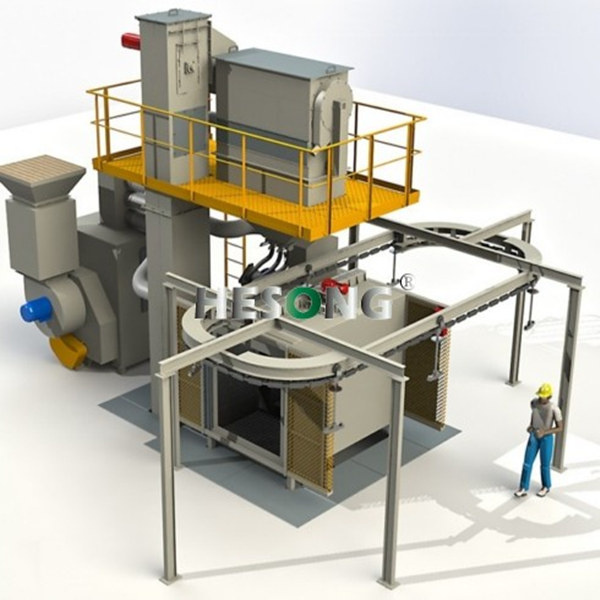

Catenary Stepping Continuous Type Shot Blasting Machine

Catenary Stepping Continuous Type Shot Blasting Machine
Price: US $ 10000-11000/Piece
Trade Terms: FOB,CFR,CIF
Min Order: 1/Piece
Pay Type: L/C,T/T
Prod Model: KSB
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Colour Of Machine: Name Colour
Warranty: One Year
Cleaning Medium: Abrasive/Grit/Sand/Shot
Safety Standard: in According with EU Standard
Dust Collector: High Efficiency
Electric Control System: PLC
PLC: Seimens
Guard Plate: High Maganese Steel
Professional Design: Good Service
Our Sales: Hanger Type Shot Blasting Machine
Application: All Industry
Certification: ISO9001-2008
Feature: Shot Blasting

Product Description

                                                Catenary Stepping Continuous Type Shot Blasting Machine
1.Application of Spinner Hanger Shot Blasting Machines:
Hook Type Shot Blast Machine is mainly used to clean and strengthen the surface of steel structural parts, casting parts, aluminum alloy parts and other spare parts.
Hook shot blasting machine is widely used in forging industry, forging machinery, iron and steel industry.

2.Description:
Pass Through Hook Type Shot Blasting Machine is suitable for bulk of large pieces of machinery and steel structure to make surface cleaning and blasting strengthen.to remove the welding slags and surface oxide;it aslo used for surface cleaning and strengthening for heat-treated pieces;and it's used for fear,gear shaft,engine connecting rod,diaphragm spring,cannonball inner shell and other parts surface descaling after heat-treating to make the surface of workpieces to reach the color of silver-gray,and eliminate stress,improve surface adhesion of the coating;increase the surface stress ,improve fatigue strength to reach the aim of blasting stengthen.

3.Technical parameters:
We will recommend you the right machine according to the workpiece and your requirement.
Technical parameters of Hook type shot blasting machine
NO.         Type
Item
KSB-6KSB-8KSB-10KSB-20KSB-30KSB-35
1Size of cleaning piecemmØ700*
1120
Ø900*1600Ø1000*1850Ø1400*
2300
Ø1600*
2200
Ø1800*2500
2Carrying weight of single hookkg60010001000200030005000
3Abrasive flow ratekg/min2*1402*
260
2*2603*2603*2604*260
4elevating capacityt/h162433484860
5Separating capacityt/h162433484860
6Ventilation capacitym³/h500080009000150001500018000
7Power(excluding dedusting)kw1932.536.5561.2764.478.4
8Outline dimensionsmm4429*2850*42004235*2660*50095047*3850*51566110*3599*78427085*4650*86527062*5460*8852

4.Constituent Part:
1Blast Wheel
2Shot blasting chamber
3Screw conveyor
4Elevator
5Separator
6Flow adjusting device
7Dust removing pipe
8Dust collector
9Access Guide Device
10Electrical control system

5.Trade Term:
Payment term: 30% as deposit, 70% balance against the copy of B/L
Delivery of the goods is executed within 45 days after receipt of advance payment.
Manufacturer must provide the certificate of origin to buyer.

Our machines were exported to France, Spain ,Russia, Mexico , Japan,korean, Pakistan,Vietnam,Thailand,Southeast Asia and other countries , so hope you can trust our professional technology and strength !

According to your requirements,the most suitable machines will be designed for your workpieces please indicate the folloing details.
1.what kind of workpiece will you clean ?
2.The workpiece size,length ,width and height of maximum workpiece?
3.How many workpiecs do you want to clean per day ?
Based on this question,the detailed technical proposals will be sent to you for reference.

Welcome contact us or visit our company in Qingdao China.
Qingdao Hesong Machine Co., Ltd.

In order to adapt the new economic system and accelerate the introduction of international advanced technology and capital, Qingdao Foudnry Machinery Group reorganize and holding shot blasting machine manufacturing enterprises: Qingdao Hesong Machine Co., Ltd.

Our research Institute firstly adopted computer 3D design, combining with Shandong Polytechnical University and Ji'nan Forging research Institute completed blasting shot scene simulation software, not only greatly improved the blasting effect and the utilization rate of shots, save the cost for users, but also optimized its overall quality, gained high praise by domestic and international customers. Our company has introduced and created one hundred kinds of automatic molding equipments and shot blast cleaning machines, which are more than 20 kinds of products to fill gaps in the domestic industry, the products are not only used in domestic FAW FAW-Volkswagen Automobile Co, Dongfeng Motor Corporation, Weichai Power Co., Ltd., China NATIONAL HEAVY DUTY TRUCK GROUP Co., Ltd, CSR Corporation Limited, China CNR Corporation Limited, Chery Automobile Co. Ltd, Baotou Bei Ben Heavy-Duty Truck Co., Ltd, Bombardier Aerospace, Siemens, Hitachi Limited Corporation, FUJI Heavy Industries Ltd, Tangshan Gear Group Ltd (TGG),

Aisin Seiki, Alsthom, DOOSAN, Caterpillar, Taiwan black bear Machinery Industrial Co., Ltand also exported to Korea, Japan, Singapore, Australia and North America, Southeast Asia more than 40 countries around the world, enjoys a high reputation and reputation in the global and domestic.

In order to ensure the quality of products, we adopt advanced CNC machining centers and dynamic balance tester, large boring machine, milling machine and equipment and other machining tools, such as the lathe, the planer, the grinding machine, the drill press and about 200 sets. And equipped with automatic welding, industrial electric furnace, wear resistant cast iron test field and soon on.

A splendid accomplishment is also the starting point. With the obvious trend of economic globalization, the company put a new development concept " building three-dimensional win-win system, creating world leading quality", and firstly gained the self-support right of import and export in the industry, has passed ISO9001: 2008 international quality system certification, environmental management system certification, positive innovation and introducing PANBORN, V+S, GF, SINTO and other international new technology, strict requirements for quality and process, to grow into the world famous enterprises and strive to open up and constant innovation.

At present, our company steadily creates the perfect industrial chain as to the most of the world famous companies. From small purchasing, each section of the manufacturing process, one point of the product, we try our best to make the product quality more perfect, and let each user experience become more perfect, let our after sale service become more perfect and shape the perfect corporate philosophy. We believe, only truly achieve a winwin situation with customers, we can also realize our value in the competition of global industrial equipment industry.
