| Prod Model: |
RF-DL |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Name: |
Roof Roll Forming Machine |
| Place Of Orgin: |
Wuxi, China |
| Steel Thickness: |
0.3-0.8mm |
| Forming Speed: |
8-12m/Min |
| Roller Stands: |
18 Stands Bottom Layer, 18 Stands Top Layer, |
| Roller Material: |
45# Steel, Coated with Chrome |
| Main Motor Power: |
7.5kw |
| Hydraulic Cutting Power: |
5.5kw |
| Power Supply: |
380V, 50Hz, 3phase |
| Forging Forming Method: |
Mold Forging |
Product Description
CE Certificated High Quality Double Layer Roof Sheet Roll Forming Machine 1. Main Features of the Roll Forming Machine:The machine can be used to produce 2 different profiles of corrugated steel sheet, e. G. 2 wall &roof sheets, or 1 wall & roof sheet and 1 floor decking sheet. Customer can choose the type.
1) Variable frequency speed control
2) Multi-purpose for overlap connection
3) Auto power off
2. Technical Parameter| Number | Items | Unit\Type | RF-DL |
| 1 | Steel Thickness | mm | 0.3-0.8 |
| 2 | Forming Speed | m/min | 8-12 |
| 3 | Roller stands | stand | 18stands bottom layer; 18 stands top layer, Tony Stands |
| 4 | Roller Material | mm | 45# steel, coated with chrome |
| | Shaft material and diameter | mm | 76 45# steel, coated with chrome |
| 5 | Main Motor Power | Kw | 7.5 |
| 6 | Hydraulic cutting Power | Kw | 5.5 |
| 7 | Hydraulic pressure | Mpa | 12 |
| 8 | Power Supply |
| 380V, 50HZ,3 phase |
| 9 | Tolerance | mm | 1.5 |
| 10 | Material of cutting |
| Cr12 HRC60-62 |
| 11 | Control system |
| PLC with touch screen |
| 12 | Machine net weight | T | 8 |

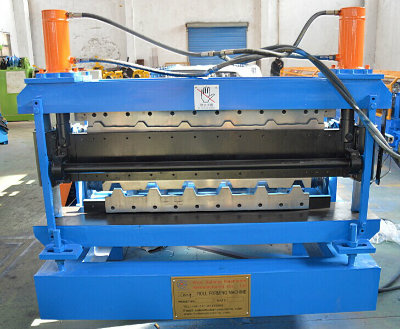

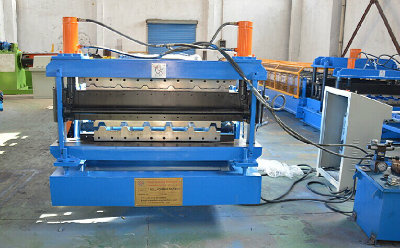

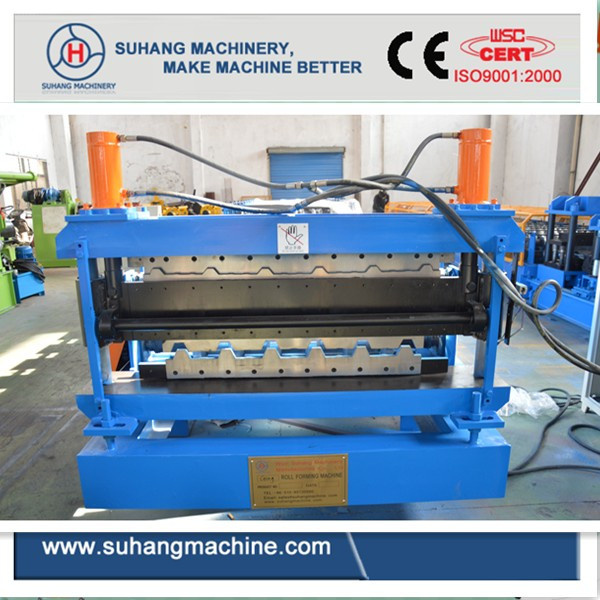

3. Machine photoes

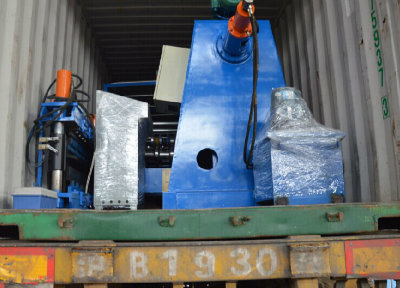

4. Packing And Loading
You are warmly welcome to our company to have a face to face meeting and check the machine
