| Prod Model: |
RF-DF |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Name: |
High Strength Floor Steel Deck Machine |
| Model: |
RF-Fd |
| Brand: |
Suhang |
| Delivery Time: |
50 Days After Deposit |
| Place Of Orgin: |
Wuxi, China |
| Steel Thickness: |
0.8-1.2mm |
| Power Supply: |
380V, 50Hz, 3 Phase |
| Cuting Material: |
Cr12 |
| Color: |
Green and Yellow (or as Per Requirement |
| Forging Forming Method: |
Mold Forging |
Product Description
High Strength Floor Steel Deck Machine
Machine Components
1. Main Machine
2. Hydraulic decoiler
3. Hydraulic pre-cutter
4. Hydraulic system
5. PLC computer controlling system
6. Forming cutter
7. Run out table( 2 units)
8.User's manual in Chinese and English
Machine Features
Different deck floor roll forming machine can produce different shapes of steel floor sheets according to the clients's profile drawings and requirement. Steel floor sheets are new building materials with various thicknesses. They are used as the floors of buildings because of low cost, light weight but high strength, short building period, and re-cycle usage.
The complete deck floor roll forming machine line includes decoiler, main machine, computer controlling system and run out tabel. Our machines are equipped with a PLC control system. PLC is calculating profile length within roll forming. Once material is required to change, PLC is calculating the length for total quantity and remind operator, production finishes and able to manual shearing material before roll forming so as to change material for new production. It is the advanced function for roll forming machine and good for production to save material , no waste.
After-sales Service
1. Our warranty is one year after the client receives the machine. Within the one year, we will courier the replacement parts to the client free of charege.
2. We offer technical support for the whole life of our machines.
3. We can send our technicians to install and train the workers in the clients ' factories.

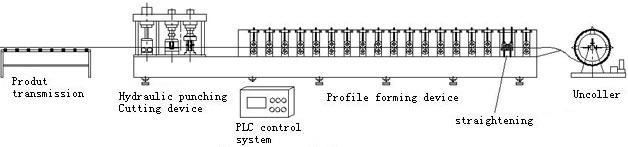

Flow Chart

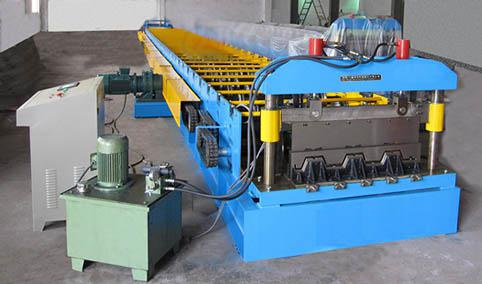

Machine Picture

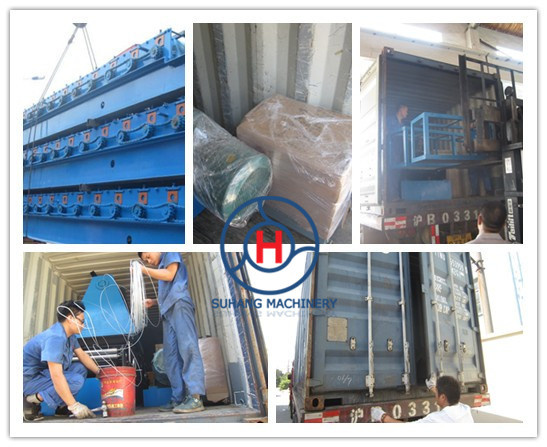

Package and Loading
Technical Data of Deck Floor Roll Forming Machine
| Number | Items | Unit\Type | RF-FD |
| 1 | Steel Thickness | mm | 0.8-1.2 |
| 2 | Steel feeding width | mm | 1000-1250 |
| 3 | Forming Speed | m/min | 10-15 |
| 4 | Roller stands | stand | 30-36 |
| 5 | Roller Material |
| 45# steel, coated with chrome |
| 6 | Hydraulic cutting Power | Kw | 18 |
| 7 | Hydraulic pressure | Kw | 5 |
| 8 | Hydraulic pressure Mpa | Mpa | 12 |
| 9 | Power Supply |
| 380V, 50HZ,3 phase |
| 10 | Tolerance | mm | 1.5 |
| 11 | Material of cutting |
| Cr12 |
| 12 | Control system |
| PLC with touch screen |
| 13 | Machine net weight | T | 16 |
