| Prod Model: |
50T 63T 100T |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Capacity (T): |
50 63 100 |
| Travel (mm): |
250+450 |
| Tale Size( Mm): |
360*680 |
| Dimension(mm): |
1200*600*1950 |
| Forging Forming Method: |
Mold Forging |
Product Description

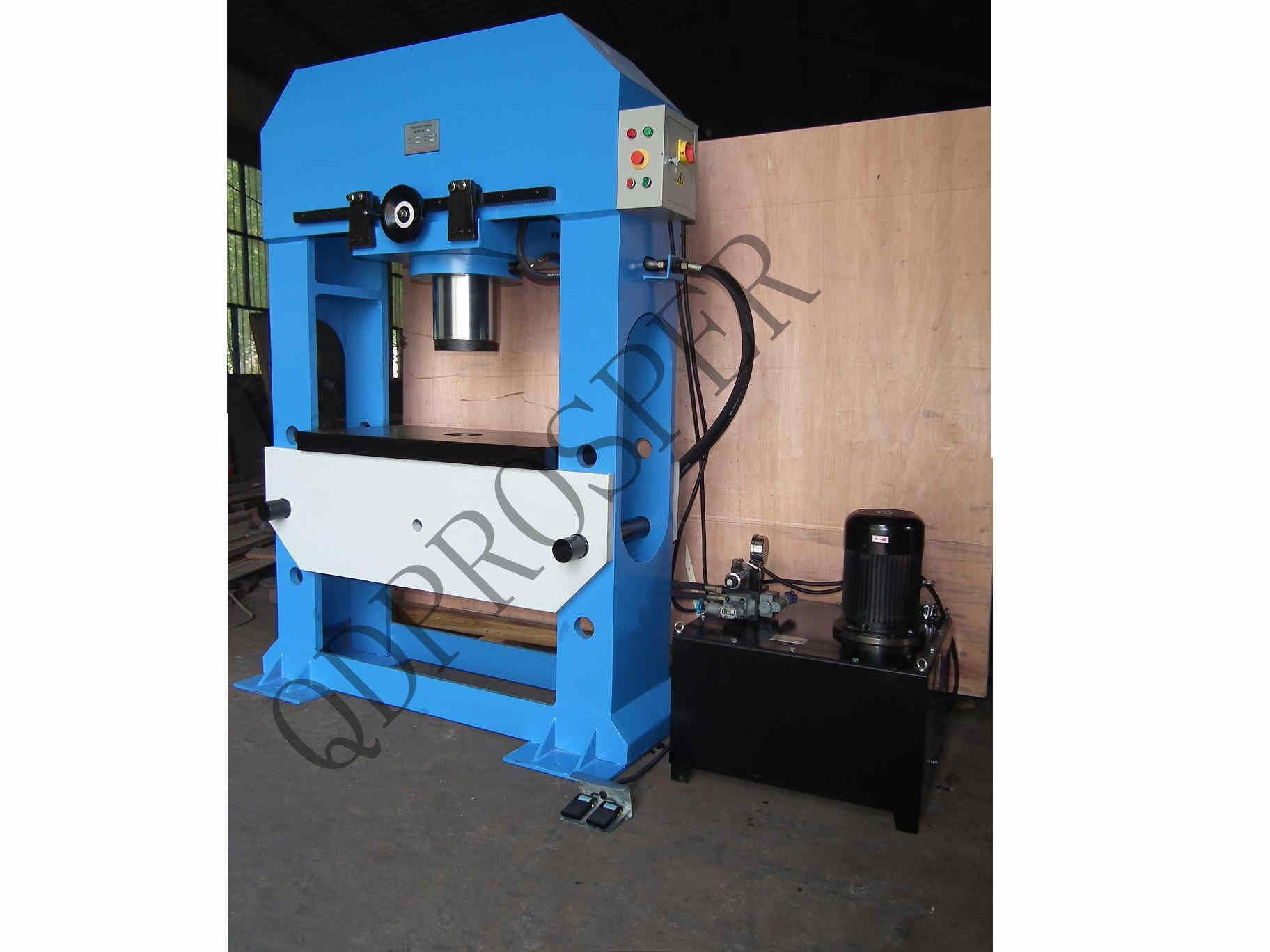

CE Manual Hydraulic Workshop Press (53T 60T 100T) :
Features
Easy to use and powerful press for most applications
Ideal for the repair of axles, shafts, & press fit of bearings & bushings
Ram can be repositioned via crank hand wheel, slides left or right
Ram speed down 8.5mm/sec, returns 8.0mm/sec
Heavy duty welded steel fabricated frame
Strong hydraulic cylinder ensures precise pressing during operation
Fitted with pressure gauge
Safety overload valve
Hydraulic joystick control lever
Powerful TEFC motors
Heavy duty one piece table plate insert
Extra heavy duty table support with high tensile setting pins
Table can be adjusted for height using chains and Hydraulic ram
Pre-Commissioning:
1. Press is run & tested prior delivery
2. Hydraulic oil is included with machine.
MODEL | HP-10S | HP-20S | HP-30S | HP-40S | HP-50S | HP-63S | HP-100S |
| CAPACITY(KN) | 100 | 200 | 300 | 400 | 500 | 630 | 1000 |
| PRESSURE(MPa) | 50 | 50 | 50 | 60 | 60 | 60 | 60 |
| TRAVEL (mm) | 180+450 | 200+450 | 200+450 | 250+450 | 250+450 | 250+450 | 250+450 |
| TALE SIZE( mm) | 200*300 | 200*300 | 300*400 | 360*500 | 360*680 | 360*680 | 360*680 |
| DIMENSION(mm) | 500*350*1300 | 500*350*1300 | 550*400*1500 | 1000*550*1500 | 1000*600*1750 | 1200*600*1950 | 1600*600*2000 |
| WEITHT (KG) | 220 | 260 | 320 | 380 | 460 | 620 | 820
|
Packaging & Shipping: Sea worthy package.
Delivery time: 10-20 days.
Guarantee Time: 1 year from shipment date.
Payment term: 30% TT in advance, 70% TT when shipment.
Qingdao Prosper Machinery Co., Ltd. is one of the professional suppliers specializing in workshop Machinery and pellet machinery.
With high efficient administrative system and extensive experience, our company export complete plants and single kind of machines to over 40 countries or regions, the total value is up to USD three million every year.
Workshop Machinery: Lathe machines, radial drilling machines, milling machine, slotting machine, welding machines, power hacksaw machines, workshop presses, Hydraulic folding machine, Guillotines, etc.
Pellet Machinery: Pellet mills for poultry feed, pig feed and shrimp feed. Hammer mills, Mixers, Coolers, Sieve, etc.
Biomass pellet mill: Wood pellet mill, Biomass Pellet Mill, Sawdust Pellet Mill, wood hammer mill, pellet cooler, etc.
Welcome all friends from at home and abroad to contact us for business discussion. Our main focus is to ensure that our customers get what they need, not what we think they should need. Our team ensures that every piece of machinery gets to its destination in due time and as economically as possible.
Here is your best choice, we will supply quality products at most competitive prices and good sales service to you.
