| Prod Model: |
HPM-500T |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Capacity (T): |
500t |
| Travel (mm): |
300+405 |
| Table Size (mm): |
900*1200 |
| Dimension (mm): |
2300*1000*2900 |
| Forging Forming Method: |
Mold Forging |
Product Description

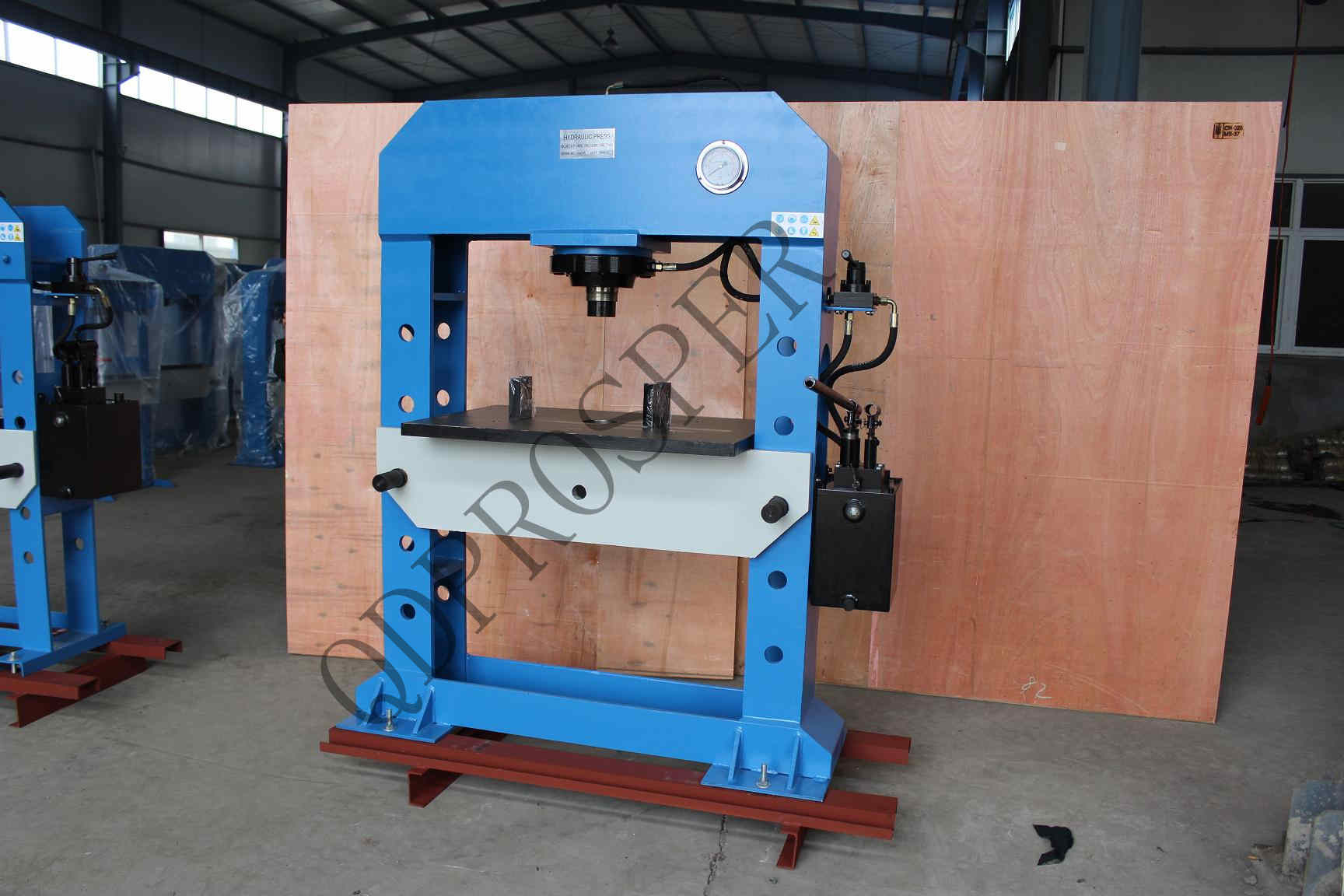

High Capacity Workshop Hydraulic Press (500T) :
HPM series hydraulic press are used for assembling, dismantling, alignment, calendaring, tension, bending and punching.
The machine supplied oil by Italy CNK and CBZ pump. It could save 60% energy compared with the traditional model. The efficiency increased to 2-3 times. It takes the advantages of small volume, high pressure, simple structure and light weight.
· The most competitive pricing in the market.
· High quality control standards, such as ISO, CE
· Guaranteed delivery time.
· Prompt attention to the customer inquiries.
· Diverse services for your needs, including sourcing other machinery, inspection goods for you by our engineers, product process tracking and good delivery.
· Research and Development to meet the customer and the market need.
Description:
200T with SLIDING CYLINDER RAM INDUSTRIAL HYDRAULIC PRESS
Suited for the Industrial workshop, for the repair of axles removal & press fit of bearings & bushings.
Features
Easy to use and powerful press for most applications
Ideal for the repair of axles, shafts, & press fit of bearings & bushings
Ram can be repositioned via crank hand wheel, slides left or right
Ram speed down 8.5mm/sec, returns 8.0mm/sec
Heavy duty welded steel fabricated frame
Strong hydraulic cylinder ensures precise pressing during operation
Fitted with pressure gauge
Safety overload valve
Hydraulic joystick control lever
Powerful TEFC motors
Heavy duty one piece table plate insert
Extra heavy duty table support with high tensile setting pins
Table can be adjusted for height using chains and Hydraulic ram
Pre-Commissioning:
1. Press is run & tested prior delivery
2. Hydraulic oil is included with machine
MODEL |
HPM-200T |
HPM-300T |
HPM-500T |
CAPACITY(KN) |
2000 |
3000 |
5000 |
PRESSURE(MPa) |
40 |
42 |
45 |
TRAVEL (mm) |
300+405 |
300+405 |
300+405 |
TALE SIZE( mm) |
500*1000 |
700*1200 |
900*1200 |
DIMENSION(mm) |
1940*900*2300 |
2100*950*2700 |
2300*1000*2900 |
|
900*800*1060 |
1100*1200*1350 |
1100*1200*1350 |
WEITHT (KG) |
2200/2400 |
3900 |
6500 |
Package: Sea worthy Package.
Payment term: 30% TT in advance, 70% TT when shipment.
Delivery time: 10-20 days.
