| Prod Model: |
50T 63T 100T |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Capacity (T): |
50 63 |
| Travel (mm): |
250+450 |
| Tale Size( Mm): |
360*680 |
| Dimension(mm): |
1200*600*1950 |
| Forging Forming Method: |
Mold Forging |
Product Description

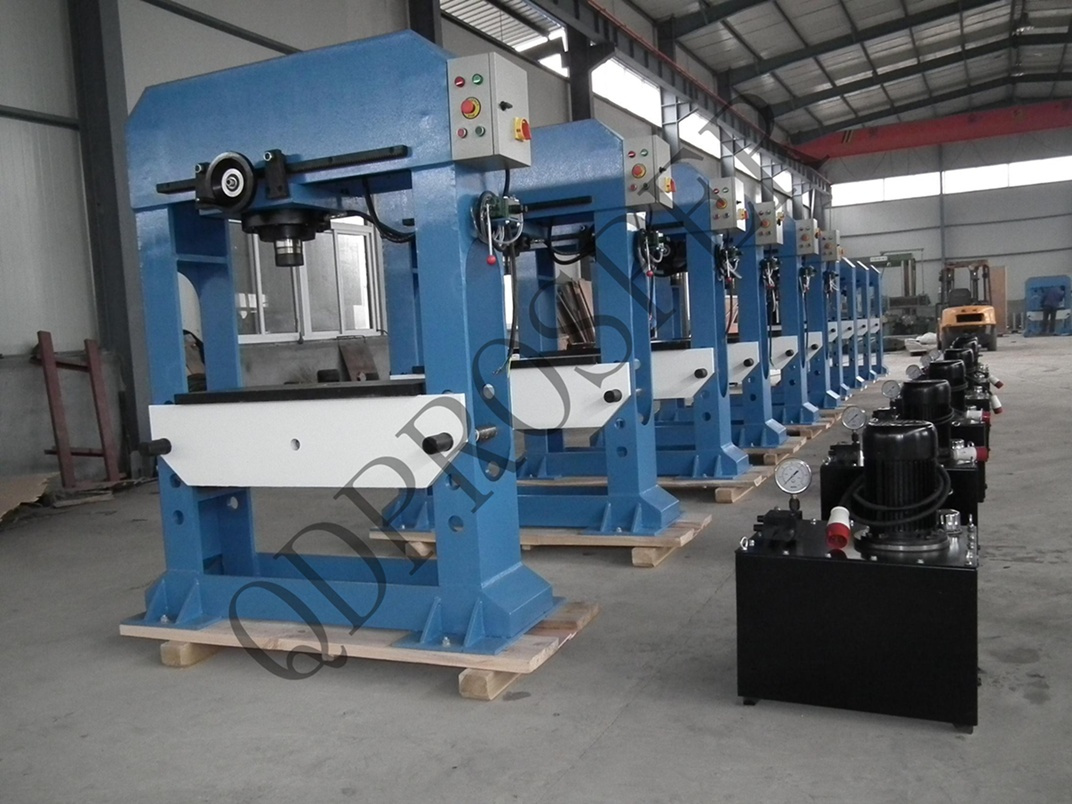

CE TUV Approved Hydraulic Workshop Press (50T 63T 100T):
The HP-S series manual presses have the advantages of small volume,simple
· The most competitive pricing in the market.
· High quality control standards, such as ISO, CE
· Guaranteed delivery time.
· Prompt attention to the customer inquiries.
· Diverse services for your needs, including sourcing other machinery, inspection goods for you by our engineers, product process tracking and good delivery.
· Research and Development to meet the customer and the market need.
Description
100 tonne with SLIDING CYLINDER RAM INDUSTRIAL HYDRAULIC PRESS
Suited for the Industrial workshop, for the repair of axles removal & press fit of bearings & bushings.
Features
Easy to use and powerful press for most applications
Ideal for the repair of axles, shafts, & press fit of bearings & bushings
Ram can be repositioned via crank hand wheel, slides left or right
Ram speed down 8.5mm/sec, returns 8.0mm/sec
Heavy duty welded steel fabricated frame
Strong hydraulic cylinder ensures precise pressing during operation
Fitted with pressure gauge
Safety overload valve
Hydraulic joystick control lever
Powerful TEFC motors
Heavy duty one piece table plate insert
Extra heavy duty table support with high tensile setting pins
Table can be adjusted for height using chains and Hydraulic ram
Pre-Commissioning:
1. Press is run & tested prior delivery
2. Hydraulic oil is included with machine
MODEL | HP-10S | HP-20S | HP-30S | HP-40S | HP-50S | HP-63S | HP-100S |
| CAPACITY(KN) | 100 | 200 | 300 | 400 | 500 | 630 | 1000 |
| PRESSURE(MPa) | 50 | 50 | 50 | 60 | 60 | 60 | 60 |
| TRAVEL (mm) | 180+450 | 200+450 | 200+450 | 250+450 | 250+450 | 250+450 | 250+450 |
| TALE SIZE( mm) | 200*300 | 200*300 | 300*400 | 360*500 | 360*680 | 360*680 | 360*680 |
| DIMENSION(mm) | 500*350*1300 | 500*350*1300 | 550*400*1500 | 1000*550*1500 | 1000*600*1750 | 1200*600*1950 | 1600*600*2000 |
| WEITHT (KG) | 220 | 260 | 320 | 380 | 460 | 620 | 820 |
