Prod Model: |
DFWH-stainless steel pump |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Capacity: |
Capacity:3-700m3/H |
Head;: |
Head:7-88m; |
Motor: |
380V,415V,660V;IP54,IP55;50Hz,60Hz; |
Speed: |
2950rpm,1450rpm,980rpm,740rpm,590rpm |
Material: |
Stainless Steel |
Structure: |
Single-stage Pump |
Power: |
Electric |
Type: |
Blade Pump |
Application: |
Oil Transfer Pump |
Theory: |
Centrifugal Pump |
Product Description
1.(): DFLH-stainless steel pump
,,,,,,60;
Capacity: 3~700M³/H
Head: 8-88M
Medium Temperature: -20ºC ~105ºC
Material: CS,SS,904,304L,316L,Duplex SS
Motor: 380V,415V,660V;IP54,IP55;50HZ,60HZ
Speed: 2950RPM,1450RPM
2.
Place of Origin: | China |
Brand Name: | EAST |
Model Number: | DFLH |
Certification: | CE,ISO |
3.
Minimum Order Quantity: | 1 set |
Price: |
|
Packaging Details: | Standard exporting wood case |
Delivery Time: | 4 weeks |
Payment Terms: | T/T, L/C, or Negotiation |
Supply Ability: | 300,000 sets/year |
4.
Description:
DFLH..

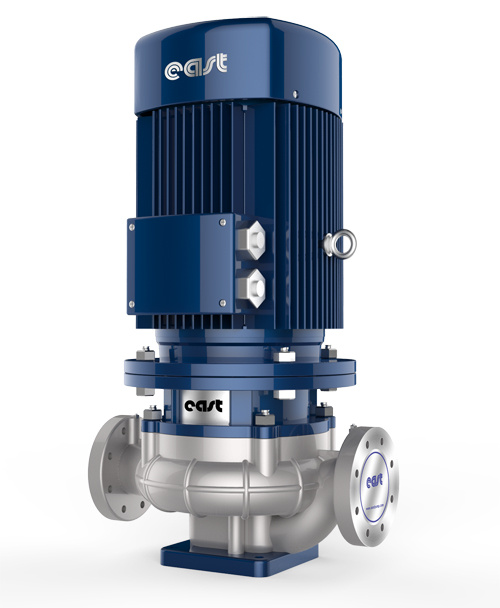

DFLH series of vertical stainless steel industrial pump are new generational energy-saving and updated products which are developed by our company according to the requirement of market. It is single stage single suction coaxial structure.
DFLH ,,.,,30%,,.,,,,.
DFLH series stainless steel pump as the motor and pump are joined directly without transmission parts. So they operate smoothly. The inlet and outlet can be fixed anywhere like valves in pipeline. Compared with common horizontal pump, DFG series can decrease 30 percent floor space. Besides, they feature smooth operation and lower noise etc. In conclusion, this series pumps are favored in market because of their smooth operation, high efficiency, less energy consumption, small floor space and compact structure.
CFD,.,;
The excellent hydraulic model is designed by CFD and re-use of rapid prototyping test optimization. High efficiency, less energy consumption and good ability of anti-vaporize.
,,,;
Adopt advanced casting methods. So the flow passage is very smooth, high efficiency and long life
,.
The brackets outside not only make the pump beautiful but supports.
Applications:
Transport liquid for brewery and milk factory
Transport soft drink
Transport liquid for food manufacture
Purity water system
Transport pharmaceutical
Other industrial system
.
It is mainly used to transport non-corrosive or low-corrosive liquid medium which physical characteristic is similar with water.
Specifications:
Design & Material |
|
DFLH Chemical Stainless Steel pump |
Design | GB/5657 Standard |
Structure | Chemical Stainless Steel Pump, Vertical Single Stage Stainless Steel Pump |
DN (mm) | 40-250 |
Flange | GB,DIN,ASME,JIS can produce according to customer's requirement |
Casing | Cast Iron, Ductile Iron, Carbon steel, SS, Brass, Bronze, Duplex SS. |
Impeller | Cast Iron, Ductile Iron, Carbon steel, SS, Brass, Bronze, Duplex SS. |
Shaft | Carbon steel, 2Cr13, 45Cr |
Shaft Seal | Mechanical Seal |
|
|
|
Operating Data |
|
Max Flow Rate(Q max) | 700 m3/h |
Max Head(H max) | 88m |
Speed | 1450~2900 rpm (50HZ), 1750~3500 rpm (60HZ) and so on; |
Temperature | -20 Celsius to 105 Celsius |
Working Pressure | 1.6 Mpa Standard |
|
|
|
Applications |
|
|
| Transport liquid for brewery and milk factory |
| Transport soft drink |
| Transport liquid for food manufacture |
| Purity water system |
| Transport pharmaceutical |
| Other industrial system |
| It is mainly used to transport non-corrosive or low-corrosive liquid medium which physical characteristic is similar with water. |
Competitive Advantage:
DFLH ,,.,,30%,,.,,,,.
DFLH series stainless steel pump as the motor and pump are joined directly without transmission parts. So they operate smoothly. The inlet and outlet can be fixed anywhere like valves in pipeline. Compared with common horizontal pump, DFG series can decrease 30 percent floor space. Besides, they feature smooth operation and lower noise etc. In conclusion, this series pumps are favored in market because of their smooth operation, high efficiency, less energy consumption, small floor space and compact structure.
CFD,.,;
The excellent hydraulic model is designed by CFD and re-use of rapid prototyping test optimization. High efficiency, less energy consumption and good ability of anti-vaporize.
,,,;
Adopt advanced casting methods. So the flow passage is very smooth, high efficiency and long life
,.
The brackets outside not only make the pump beautiful but supports.
