Product Description
Iron casting single stage centrifugal water pump

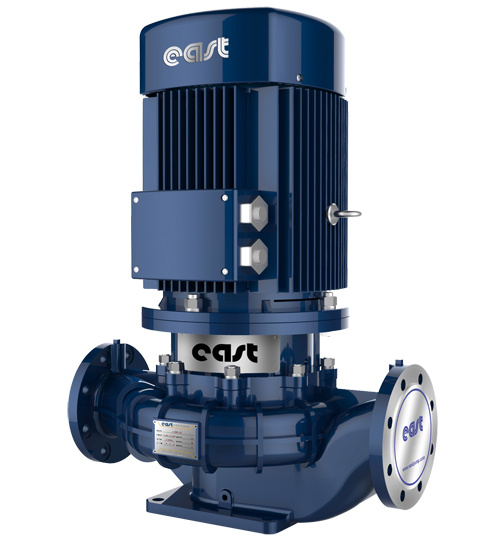

DFG vertical centrifugal pump/ inline pump
|
| Model | DFG |
| DN(flange) | 80~800mm |
| Capacity | 2~1400m³/h, with 2950RPM, 1450RPM, 980RPM |
| Head | 5~130m |
| Permitting working pressure | 2.5Mpa |
| Medium Temperature | -20°C~105°C |
| Material | Cast iron-HT200, HT250; SS304, SS316, SS316L, Duplex SS |
| Partical | 80mg/l |
| Motor | 380V, 415V, 660V; IP54, IP55; 50Hz, 60Hz |
| Shaft | Cast steel, 2Cr13 |
| Casing and cover | Cast iron, Nudular cast iron, Cast steel |
| Impeller | Cast iron, Bronze, stainless steel |
| Mouth seal | Cast iron, nudular cast iron, bronze, stianless steel. |
| Shaft seal | Mechanical seal or packing seal |
| Bearing | Closed grease lubricated roller bearing(SKF, NTN) NSK thrust
and roll bearing |
| Flange standard | ASME, DIN, GB |
| Seal by | Burgmann mechanical seal or gland packing |
| Quality control system | ISO9001:2000, ISO14001, OHSAS18001, ISO2548, GB/T3216,
GB/T5657, GB19762-2005 |
| Main Application | Power plants, water supply, municipal, construction, fire fighting,
industrial and mining enterprises and other industries for the
transportation of water, of similar physical and chemical properties
of water and other media |
Capacity: 2~1400M³/H
Head: 5-130M
Medium Temperature: -20ºC ~105ºC
Material: Cast iron-HT200, HT250; SS304; SS316; SS316L, Duplex SS
Motor: 380V, 415V, 660V; IP54, IP55; 50HZ, 60HZ
Speed: 2950RPM, 1450RPM, 980RPM
| Place of Origin: | China |
| Brand Name: | EAST |
| Model Number: | DFG |
| Certification: | CE,ISO |
| Minimum Order Quantity: | 1 set |
| Price: |
|
| Packaging Details: | Standard exporting wood case |
| Delivery Time: | 4 weeks |
| Payment Terms: | T/T, L/C, or Negotiation |
| Supply Ability: | 300,000 sets/year |
Description:
By three element design theory, model optimization design and analyze the pump's dynamic characteristics. To maximize the efficiency of pump, widens the efficient area of the pump, to reduce the noise of the pump.
The impeller is made of stainless steel stamping laser welding technology,has utility model patents issued by the State Intellectual Property Office, patent number is ZL201320534632.7.
The main parts of the casting using resin sand molding,surface smooth. Numerical control machining process for parts,application of three-dimensional detection technology to ensure the conformity of the form and position tolerance,using the theory of module and virtual technology to improve the reliability of the products ,and product is verified by the test system at final.
The efficiency index accord with GB18613-2012 Small and medium-sized three-phase asynchronous motor limited value of energy efficiency and energy efficiency grade 's 2 levels of energy efficiency standards by using the YE2 three-phase asynchronous motor,
At present, high energy consumption situation has become an urgent realistic problem. The actual operation efficiency of pump products and the system efficiency is generally low , waste of electricity each year about 10 billion kilowatt hours. If the pump efficiency increased by 1%, can save 2.2 billion kilowatts Hours of electricity, energy saving effect is very obvious. This series of products has a broad efficient area and high efficiency ,is the company independent research and development made the second generation of the single stage single suction pump. Compared with GB/T13007centrifugal pump efficiencyoverall efficiency increased by 3 to 8% .Of this series of products, aims to set up the pump industry famous brand, is the best choice to replace imported products.
Specifications:
| Design & Material |
|
| DFG Inline pump |
| Design | GB/5657 Standard |
| Structure | In-line Pump, Vertical single stage pump, Pipe line pump |
| DN (mm) | 25-350 |
| Flange | GB,DIN,ASME,JIS can produce according to customer's requirement |
| Casing | Cast Iron, Ductile Iron, Carbon steel, SS, Brass, Bronze, Duplex SS. |
| Impeller | Cast Iron, Ductile Iron, Carbon steel, SS, Brass, Bronze, Duplex SS. |
| Shaft | Carbon steel, 2Cr13, 45Cr |
| Shaft Seal | Mechanical Seal |
|
|
|
| Operating Data |
|
Max Flow
Rate(Q max) | 1450 m3/h |
| Max Head(H max) | 130m |
| Speed | 1450~2900 rpm (50HZ), 1750~3500 rpm (60HZ) and so on; |
| Temperature | -10 Celsius to 105 Celsius |
| Working Pressure | 1.6 Mpa standard |
|
|
|
| Applications |
|
|
| Heating, ventilation and air-conditioning |
| Fire Protection and Fire Fighting |
| Water circulation |
| Liquid transfer |
| Irrigation |
|
| Cooling |
|
| Booster service |
Selecting description:
The order of user isn't limited by the data which listed in the sample performance curve and performance parameter chart, this company may design and provide the products specially according to user's actual requirement flow and head;
If it is close to the listed performance parameter, it will prefer to select the standard impeller pump and the high speed pump generally (the premise is that satisfies the requirement of cavitation performance);
If user's required flow and head parameter aren't in the scope of product's large flow and low head operating condition, the matched motor power may confirm and reduce properly according to the actual operating condition point.
if you have special selecting or have the unclear place to the sample, please inquire the technical support department of Shanghai East Pump (Group) Co., Ltd directly.
Recommended spare parts: shaft, mechanical seal, seal ring, packing, bearings, impeller.
After service
East Pump persist in "consumers' satisfaction" as our objective. "To offer consumers with high-class services" as our promises. They are embodied in our all processes of sales.
Before-sales service: Our engineers offer consumers design and consultation services. They will commend the optimum products, therefore, losses because of unsuitable select of pump can be averted.
Sales service: We follow the products sold on our own initiative. Consumers can receive our professional training free to ensure our products can operate with high efficiency to avoid equipment hitch owing to consumers' incorrect use.
After-sales service: Our service people will forwardly make selective-check for product sold termly. Furthermore, they will supervise consumers maintaining the equipment in time. Once our products work wrong, we will obviate the trouble as soon as possible, to make equipment operate normally.
Item of service
Technical training Equipment evaluation
Installation and debugging Troubleshoot
Maintenance Update and improvement
Commitment to the service
1. After signing the contract , send engineer for assisting installation and debugging.
2. One-year warranty. Provide technical support free all-life of the products.
3. Keep all-life contacting with clients, get feedback on use of the equipment and make the products quality continually perfected.
4. Hot-line of service is available in 24h, responded in 8h. 400 1666 099
