| Prod Model: |
DN80-DN2000 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Product Name: |
Ductile Iron Pipes |
| Class: |
K9 .K8 K7 Pn 10.Pn16 |
| Factory Certifiacte: |
ISO9001 |
| Zinc Coat: |
130G/M2 |
| Bitman Coat: |
70 Um |
| Gasket: |
SBR, NBR, EPDM |
| Certificate: |
Coc Issued by SGS |
| Export Experience: |
More Than 10years |
| Quality Control: |
100% Test |
| Length: |
6m.5.7m 5.6m .5.5m |
| Usage: |
Water Supply |
| Joint Type: |
Flange Joint |
| Type: |
Ductile Iron Pipes |
| Shape: |
Round |
| Section Shape: |
Round |
| Gasket Material: |
SBR |
| Certification: |
ISO2531 |
| Customized: |
Customized |
Product Description

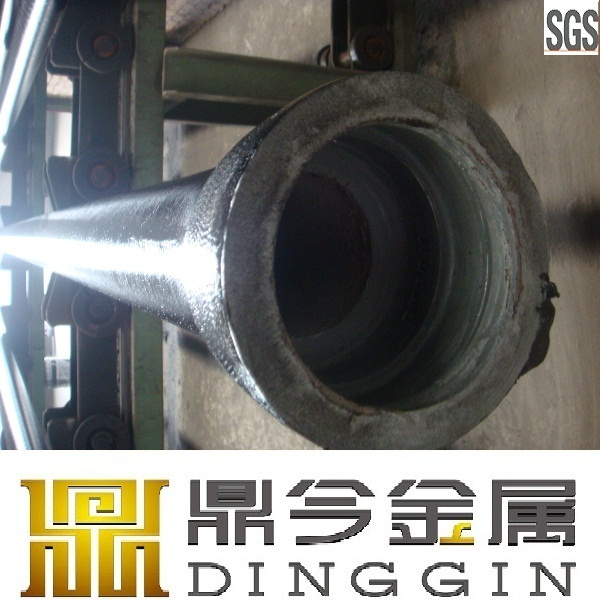

Centrifugal Casting ductile pipe 300mm k7
Detailed Product Description
Ductile iron pipe
ISO2531, EN545
Class: K9, K8, k7, C Class, C40, C30, C25
SIze: DN80-DN1200
Inner cement line: Portland cement lining as per ISO4179
Ductile iron pipe
Specifications:
1) The standard of pipe: ISO 2531 - 1998, EN545-2002, K9
2) Effective length: 6M when using bulk shipment way, or about 5.5M or 5.7M when
In 20' container shipment way
3) Inner cement line: Portland cement lining as per ISO4179
4) Zinc coating: At least 130GSM as per ISO 8179
5) Bitumen painting: At least 70um as per ISO 8179
6) Gaskets are NBR rubber, natural rubber, SBR rubber or EPDM rubber
Tightness ring as per ISO4633
7) DN 80 - 1, 200 mm
8) High strength, lighter than gray iron, good corrosion resistance, no furring,
Small flow resistance, easy fixing, long life time
9) Checked by automatic inspection equipment
10) Composition:
A) C: 3.4 - 3.7%
B) Si: 2.0 - 2.4%
C) P: <0.08%
D) S: <0.015
11) Pull strength: >420MPa
12) Yield: >10%
13) Hardness: <230HB
14) Process and testing:
A) Blast furnace (Analysis of raw materials test )
B) Mg treatment (Micro & chemical composition test)
C) Pipe spinning (Temperature test)
D) Heat treatment (Micro structure; Flattening test)
E) Zinc coating (Thickness testing)
F) Dimensional checks (Thickness & Dia. Testing)
G) Hydraulic test (Pressure test)
H) Internal lining (Thickness testing)
I) External coating (Thickness test)
Pls contact me freely, I am online 24hours
Ms. Fu bng
Tel: 86-411-86507516
Mob: 86-15940915828
