| Prod Model: |
DN80-DN2000 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Size: |
Dn80-Dn2000 |
| Length: |
5.7m/6m |
| Paint: |
Black Bitumen Paint/Epoxy Paint |
| Cement Lined: |
3mm |
| Zinc Coat: |
Above 130G/M2 |
| Tensile Strength: |
Above 420mpa |
| Density: |
Above 7g/cm3 |
| Yieid Strength: |
Above 300mpa |
| Application: |
Water Supply |
| Delivery Time: |
15-20 Days |
| Usage: |
Water Supply |
| Type: |
Ductile Iron Pipes |
| Shape: |
Round |
| Section Shape: |
Round |
| Gasket Material: |
EPDM |
| Certification: |
ISO8179 |
| Customized: |
Non-Customized |
| Joint Type: |
Push on Joint |
Product Description

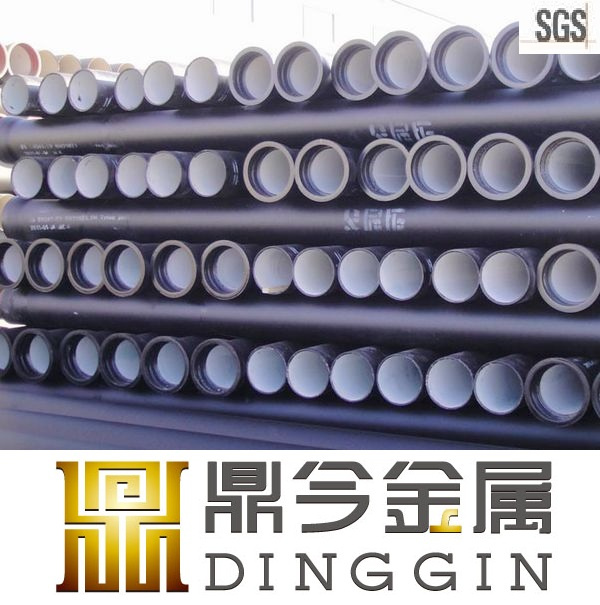

Centrifugal casting ductile iron pipe k9
1). Material: Ductile iron
2). Size: DN80-DN2600
3). Standard: ISO2531/EN545/EN598
4). Length/PC: 5.7m/6m
5). Class: K7/k9/class c
6). Joint type: T-type, flange-type, K-type
7). Paint: Black bitumen/epoxy paint.
8). Zinc coat: In accordance with ISO8179, not less than 130 G/M2
9). Cement lining: Inside with cement mortar lining as per ISO4179.
10). Tensile strength: Above 420 MPA
11). Yield strength: Above 300 MPA
12). Brinell hardness: Within 230HBW
13). Density: Above 7g/cm3
14). Spheroidizing grade: Grade 1-3
15). Rubber gaskets: SBR/EPDM/neoprene
16). MOQ: 1X40'GP
17). Lead time: Below 1000 tons, 2 weeks. Above 1000 tons, depend on your qty.
18). We could also do the test at famous organizations such as SGS, BV, etc.
19). We have shipped our products to Italy, Spain, Syria, Iraq, Philippines, Singapore, etc.
20). If any special requirement, pls contact with me freely.
Contact person: MS. YI WEIWEI
Tel: 86-411-86509116
Mobile: 86-13500756485
|
EN545/ISO2531 DUCTILE IRON PIPE CHEMICAL CONTENT STANDARD |
|
C (%) |
Si (%) |
S (%) |
P (%) |
Mn (%) |
Mg (%) |
Ti (%) |
Gr (%) |
|
3.5-4.0 |
1.8-2.6 |
<0.02 |
≤0.08 |
≤0.4 |
≥0.04 |
<0.1 |
<0.1 |
|
EN545/ISO2531 DUCTILE IRON PIPE MECHANICAL TEST STANDARD |
|
BRINELL HARDNESS |
DENSITY |
TENSILE STRENGTH |
ELONGATION |
SPHEROIDIZING GRADE |
WATER PRESSURE |
ZINC COAT |
|
≤230HBW |
≥7g/cm3 |
≥420 |
DN80-DN1000 |
DN1100-DN2600 |
GRADE 1-3 |
50KG |
≥130
G/M2 |
|
10% |
7% |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
