| Prod Model: |
High Cr cast iron rolls |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Casting Method: |
Centrifugal Cast |
| Barrel Hardness: |
65-95hsd |
| Core Hardness: |
32-45hsd |
| Weight: |
1-50tons |
| Type: |
Steel Rolling Equipment |
| Certification: |
ISO |
Product Description

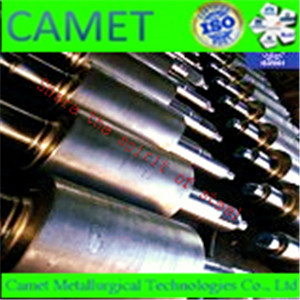

Centrifugal Casting High Cr cast iron roll
PropertiesThanks to its high content of M7C3 type carbide in the range of 20-30% and discontinuous network distribution of carbide, the roll offers a high wear-resistance performance. The matrix consist of tempered martensitic and sorbite with finely-dispersed secondary carbides (M7C3, M23C6 and M3C types), increasing therefore the wear-resistance of roll, the Cr2O3 enriched oxide film on the roll surfaces is highly resistant to oxidization and plastic strain, making the roll extremely suitable for steel hot rolling process.
Chemical Analysis
| Grades | HSC | C | Si | Mn | Ni | Cr | Mo |
| HCrI | 60~75 | 2.3/3.3 | 0.3/1.0 | 0.5/1.2 | 0.7/1.7 | 12.0/15.0 | 0.7/1.5 |
| HCrII | 65~80 | 2.3/3.3 | 0.3/1.0 | 0.5/1.2 | 0.7/1.7 | 15.0/18.0 | 0.7/1.5 |
| HCrIII | 75~90 | 2.3/3.3 | 0.3/1.0 | 0.5/1.2 | 0.7/1.7 | 18.0/22.0 | 1.5/3.0 |
Mechanical properties
| properties | Barrel | Nick/corel - grey cast iron | Nick/corel - SG cast iron |
| Tensile strength (N/mm2) | 850 | 200 | 400 |
| Bending strength (N/mm2) | 1300 | 350 | 835 |

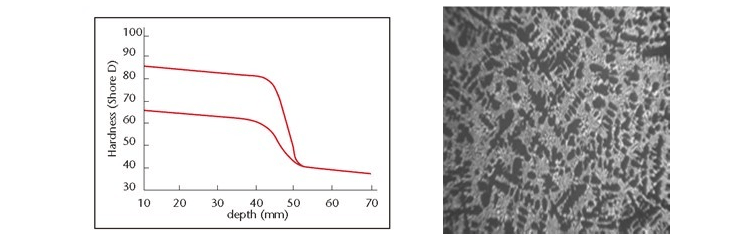

Microstructure
HCrI: bainite + martensite + carbide
HCrII: tempered martensite + eutectic carbide + small percentage secondary carbide
HCrIII: tempered martensite + eutectic carbide + small percentage secondary carbide
Application
Work rolls for roughing stands and front finishing stands of hot strip mill, work rolls for wide and medium plate mill

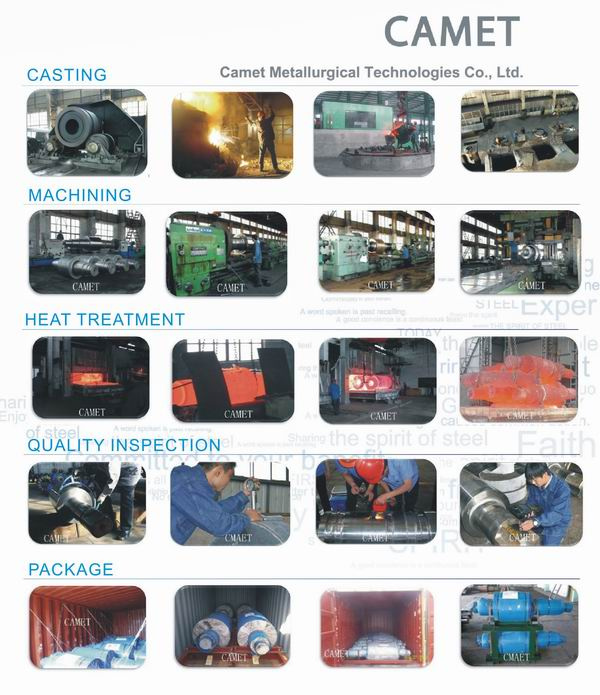

Depending on the excellent leadership, stable and professional employees, perfect management system and rapidly developing business, Camet Metallurgical Technologies Co., Ltd. Has developed into the one of the Chinese professional providers destined for offering cost-effective products and value added trading service in the field of metallurgical engineering. We are looking forward to establishing a win-win situation between you and Camet.
We have been supplied to more than 40 steel factories from USA, Mexico, Brazil, Argentina, Thailand, India, UK, Italy, Russia, Turkey, Kenya, Kuwait, such as Mittal, V&M, US steel, Corus Euro, etc. We have achieved excellent reputation from our customers.
Camet Metallurgical Technologies Co., Ltd. Has already certificated under ISO9001: 2000 quality control system since 2006, at the same time, recorded in DUNS global credit standing system (DUNS No.: 52794-3626). We will do our best to build an effective bridge between you and China under the condition of global trade integration.
