| Prod Model: |
speed steel roll |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Casting Method: |
Centrifugal Cast |
| Barrel Hardness: |
75-95 Hsd |
| Core Hardness: |
30-45 Hsd |
| Weight: |
≤10 Tons |
| Type: |
Steel Rolling Equipment |
| Certification: |
ISO |
Product Description

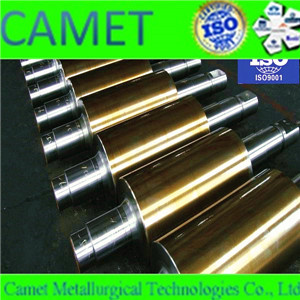

Centrifugal casting high speed steel roll
PropertiesThe shell is a high carbon alloy steel containing Cr,Mo,W,V and Nb.The Microstructure consists of complex carbides embedded in a tempered martensitic matrix.Control of the carbon and a complex heat treatment allows the optimization of wear resistance,thermal fatigue resistance and oxide film formation,whilst maintaining low residual stress values.
Chemical Analysis
| Code | HSC | C | Si | Mn | Ni | Cr | Mo | V | W |
| HSS | 75~95 | 1.5/2.0 | 0.3/1.0 | 0.4/1.2 | 0.0/1.5 | 3.0/8.0 | 2.0/8.0 | 2.0/9.0 | 0.0/8.0 |
Mechanical properties
| properties | Barrel | Nick/corel - SG cast iron |
| Tensile strength (N/mm2) | ≥760 | ≥760 |
| Bending strength (N/mm2) | 770~1020 | 425~500 |

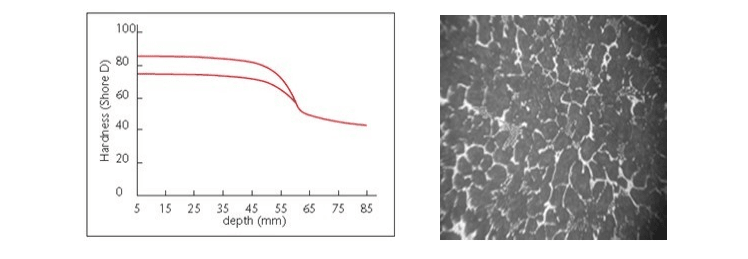

Microstructure
Tempered martensite + small percentage bainite + carbide
Application
Work rolls for roughing stands and front finishing stands of strip mill, work rolls for cold strip mill

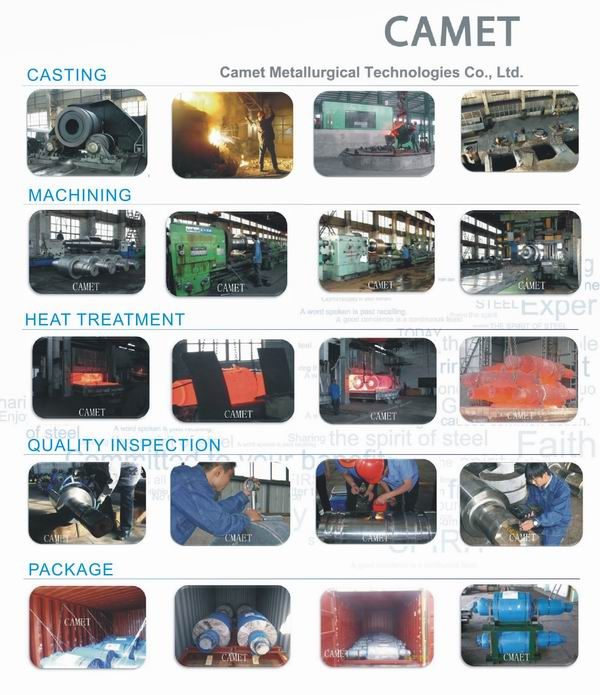

Depending on the excellent leadership, stable and professional employees, perfect management system and rapidly developing business, Camet Metallurgical Technologies Co., Ltd. Has developed into the one of the Chinese professional providers destined for offering cost-effective products and value added trading service in the field of metallurgical engineering. We are looking forward to establishing a win-win situation between you and Camet.
We have been supplied to more than 40 steel factories from USA, Mexico, Brazil, Argentina, Thailand, India, UK, Italy, Russia, Turkey, Kenya, Kuwait, such as Mittal, V&M, US steel, Corus Euro, etc. We have achieved excellent reputation from our customers.
Camet Metallurgical Technologies Co., Ltd. Has already certificated under ISO9001: 2000 quality control system since 2006, at the same time, recorded in DUNS global credit standing system (DUNS No.: 52794-3626). We will do our best to build an effective bridge between you and China under the condition of global trade integration.
