Product Description

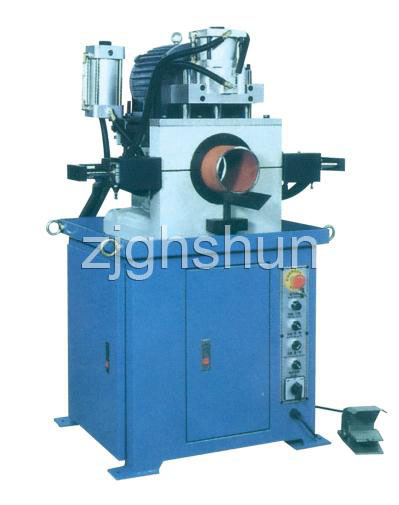

Metal Tube and Rod Chamfering Machine with Adjustable Knife
Key Specifications/Special Features:
Descriptions:
1. Semi-automatic chamfering machine
2. Feeding tube by manual, blade forward and back automatically, due to the high speed, the production capacity increase double more
3. This machine is good at chamfering inner and out angle of circular tube or circular rod, chamfering and debarring can be finished at one time in fast speed and accuracy
4. Clamping device and knife holder are designed precision and accurately, which ensure the center line of workpiece and knife holder keep at the same level
5. Knife holder as designed specially and the blade is normalizing which enable adjusting knife simply
Standard Accessories:
1. Tool Kit
2. Clamping device
3. Manual Book
Primary Competitive Advantages:
1. Country of Origin
2. Form A
3. Guarantee/Warranty
4. Price
5. Product Performance
6. Quality Approvals
7. Service
8. Small Orders Accepted
|
Type |
EF-52AC |
EF-80AC |
EF-110AC |
EF-150PV |
|
Max. O. D. Tube |
φ 15~φ 52 |
φ 32~φ 80 |
φ 50~φ 110 |
φ 60~φ 150 |
|
Max. O. D. Rod |
φ 5~φ 15 |
φ 9~φ 50 |
φ 9~φ 50 |
φ 20~φ 80 |
|
Standard Parts |
Knife and Clamp Kit |
Knife and Clamp Kit |
Knife and Clamp Kit |
Knife and Clamp Kit |
|
Optional |
Knife and Clamp Kit(Special) |
Knife and Clamp Kit(Special) |
Knife and Clamp Kit(Special) |
Knife and Clamp Kit(Special) |
|
Working Speed |
3s |
4s |
4s |
8s |
|
Motor Power |
1.5 KW |
3 KW |
3 KW |
4 KW |
|
Spindle Speed |
1100RPM |
720/900RPM |
720/900RPM |
450/720RPM |
|
Air Pressure |
6~8 kg/cm 2 (120ML/MIN) |
6~8 kg/cm 2 (120ML/MIN) |
6~8 kg/cm 2 (120ML/MIN) |
-- |
|
Hydraulic Power |
-- |
-- |
-- |
1.5 KW |
|
Hydraulic Pressure |
-- |
-- |
-- |
40~70 KG |
|
Size(mm) |
650x750x1000 |
750x900x1050 |
800x950x1100 |
1300x1150x1500 |
|
Weight |
150 KG |
270 KG |
300 KG |
1200 KG |
Established in 1995 and lies by National highway No. 204, Zhangjiagang City Huashun Machinery Manufacturing Co., Ltd. is one of leading manufacturer and exporter about metal pipe material processing machinery with an area of 19, 000 square meter, having passed the authentication of ISO 9001: 2000 Quality Management System and gained a good reputation among our customers.
Our company has strong R&D team as well as the production and inspection equipments of high precision. with more than 10 years history, Huashun keeps on improving products and successfully developing full series of metal pipe material processing machines, such as SB series pipe bending machine, MC series circular cold saw cutting machine, TM series pipe end shaping machine, EF series chamfering machine, SG series saw blade teeth-making grinding machine, SX series riveting machine etc., Our products are widely used in vehicles, motorcycle, bicycle, children bicycle, steel furniture, air conditioner pipe system, petrochemical industry, bathroom equipments, shipbuilding, boiler, pipe manufacture industry. And the machines are good solution for various pipe cutting, bending, shrink/enlarge pipe end connection.
We abides by "Quality first, customer highest, sincerity base"management theory and strive to create the world first-class brand. We honestly hope to establish relationship with you in future!
